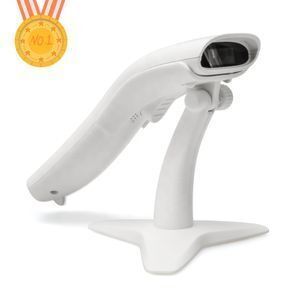

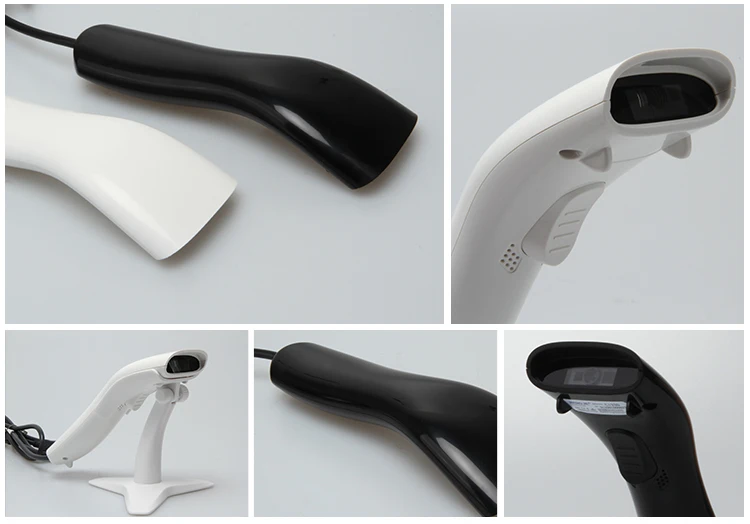

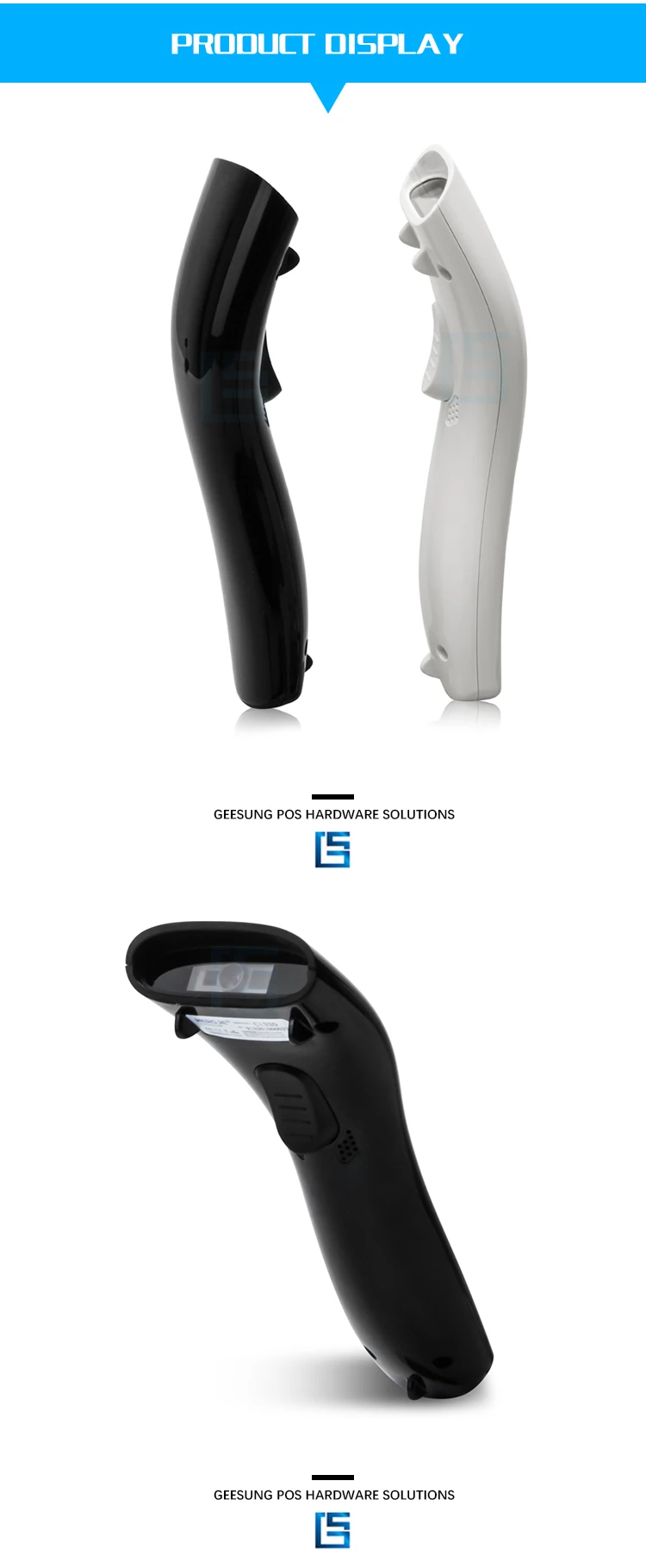

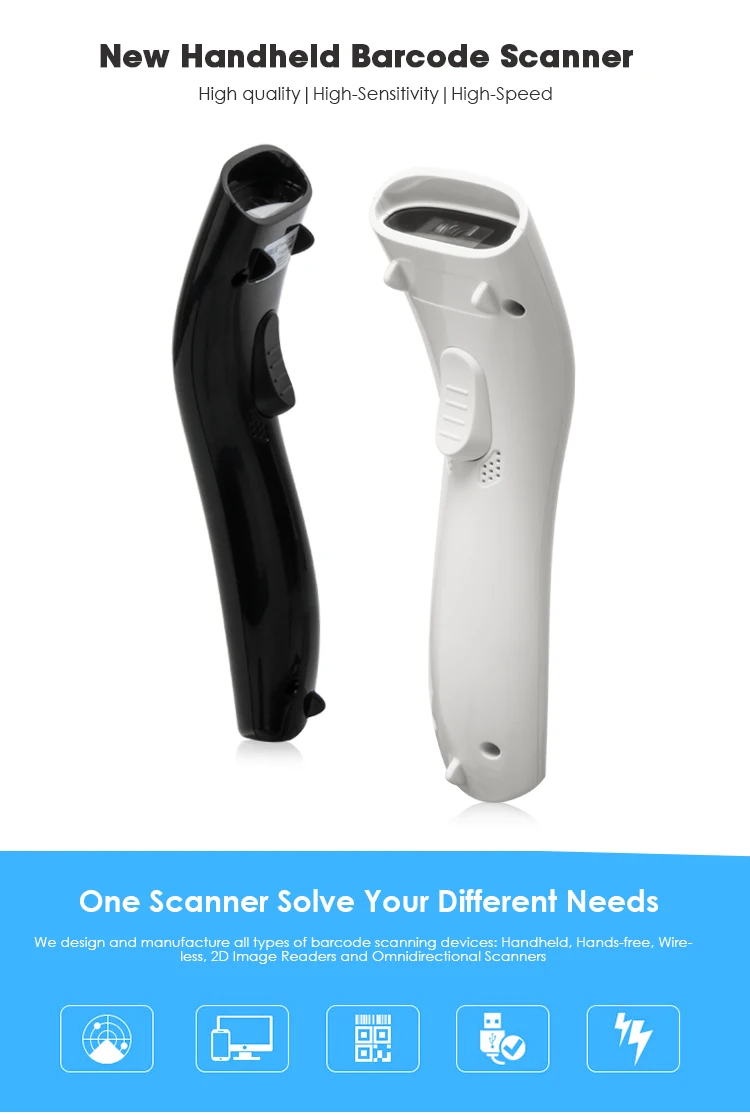

Cheap Portable Mini Handheld Android CCD Qr Code Pda USB 1D 2D Laser POS Barcode Reader Scanner Module

Product details
Feature:Smallest 2d Barcode Scanner;Type:Barcode Scanner;
Brand Name:Geesung POS;Light Source:617nm 6500k led;
Package Type:Paper carton Box+carton;Scan Element Type:CMOS;
Interface Type:USB;Single gross weight:0.55 KG;
Application:Supermarket;Scan Speed:133 scan/s;
Scan type:1D/2D QR;Colour Depth:16 Bit;
Color:Black color, white color available;Selling Units:Single item;
Function:Barocde Reader;Electric voltage:5V DC ± 10%;
Optical Resolution:5 mil;Scan Angel:Roll 360°\Pitch ±60°\Skew ±65°;
Products Status:Stock;Warranty:12 month;
Max Paper Size:2.5-600mm;Single package size:20X12X4.5 cm;
Place of Origin:Guangdong China;keywords:Cheap Onlin Portable Mini Handheld Barcode Reader Scanner;

Cheap Portable Mini  Handheld Android CCD Qr Code Pda USB 1D 2D POS Barcode Reader Scanner Module

Model NO                                  BS-133

Optical system

CMOS

Capture light source

617nm LED

Lighting source

6500K LED

Scan Angel

Roll 360°\Pitch ±60°\Skew ±65°

Lowest contrast

0.2

Recognition accuracy

5mil (CODE39,70% Printing contrast)

Read code system 1D

UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code,Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat.

Read code system 2D:

QR Code,PDF417, Data Matrix

Electrical parameters

Electric voltage

 5V DC ± 10%

Electric current

Scanning 190mA±10ma / Standby 10mA /

Mechanical parameters

Size

170mm(L)x 31mm(W)x62mm(H)

Shell material

ABS+TPU

Weight

113.5g(Containing cable)

Interface

USB

Cable length

150cm

Drop

Anti 1.5 meter free fall cement ground

Enviromental parameter



Working temperature

-5℃~65℃

Storage temperature

-20℃~70℃

Working humidity

5%~90% (non-condensing)

Environment light

0~100,000 lux



PRODUCT FEATURES:

Ø   Ultra - strong error correction characteristic : can identify special bar code such as wrinkle , deformation ,
water coagulation , dirt , etc . , reduce the probability of manual input of bar code.



Ø   Omnidirectional scan characteristics: omnidirectional 360 °bar code recognition, multi-angle to provide a
larger scanning range, terminal customer use easier to use.



Ø   More features: supports Chinese 2 D code USB driver free direct output. Optional supporting invoice 2 D
code. Can be adapted to more application scenarios



Ø   Resistance to fall design: All-curing digital circuit, with soft wrap, a better protection of unexpected
situations.



Ø   Durable detail Design: IP5X Class Protection Class, exclusive Cross key Design, Integrated Copper data
Line, Aftermarket Non-human damage fully insured for one year.
