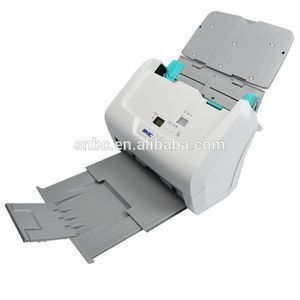

BSC-5045 high speed document scanner express waybill scanner

Product details
Optical Resolution:N/A;Port:qingdao;
Products Status:Stock;Place of Origin:Shandong China;
Type:N/A;Colour Depth:24 Bit;
Payment Terms:L/C,T/T;Supply Ability:100000 Piece/Pieces per Year;
Max Paper Size:5588mm;Scan Element Type:CIS;
Interface Type:USB,Other;Brand Name:SNBC;
Scan Speed:45ppm/90ipm;Packaging Detail:Standard product package for exporting;

Product name

BSC-5045 high speed document scanner express waybill scanner



Product description

High speed document scanner, express waybill scanner



Product feature

Scans documents, plastic ID cards, checks, business cards

Scan rate up to 45ppm/90ipm

ADF scanner holds up to 75 pages

Capability 5000pcs per day

Support long document 5588mm

Double-sided color documents up to legal size

Easy to use button scanning

Automatic crop, deskew and thresholding image-enhancing features



Product parameter

Item

Parameters

Scan

Scan method

ADF, two sides

Scan element

CIS

Scan resolution

600dpi (optical resolution)

Scan type

Color (24bits), grey (8 bits), white&black (1 bit)

TIFF, JPEG, BMP, PDF

Scan speed

45PPM/90IPM (A4, 200DPI color/300DPI grey)

ADP Capacity

75pcs

Scan area

Width: 50mm-216mm
Endwise: 50mm-863mm; lengthened 5588mm;

Barcode (1D/2D)

Code 39, code 128, QR, PDF417

RAM

64M(Default); 128/256M optional

Interface

USB 2.0 high speed interface, serial interface (optional)

Power supply

Input

100-240V, 50/60HZ

Output

24V, 1.5A

Environment

Operating

5℃~45℃,20%~90%(40℃)

Storage

-40℃~60℃,20%~93%(40℃)

Physics Spec.

Folded

300(W)*195(L)*238(H)mm

Unfolded

300(W)*594(L)*357(H)mm

Weight

4.5KG

Software

Driver

USB, TWAIN 2.1, WIA, SANE(Linux)

SDK

Windows, Linux

Application

One Button Scan, image capture/management software

Standards

Standards

CCC, Energy Star, RoHS.



Application

Logistics

Retail

Banking





Lead time

60days after receiving official purchase order based on forecasting.



Packaging & Shipping



Our Services

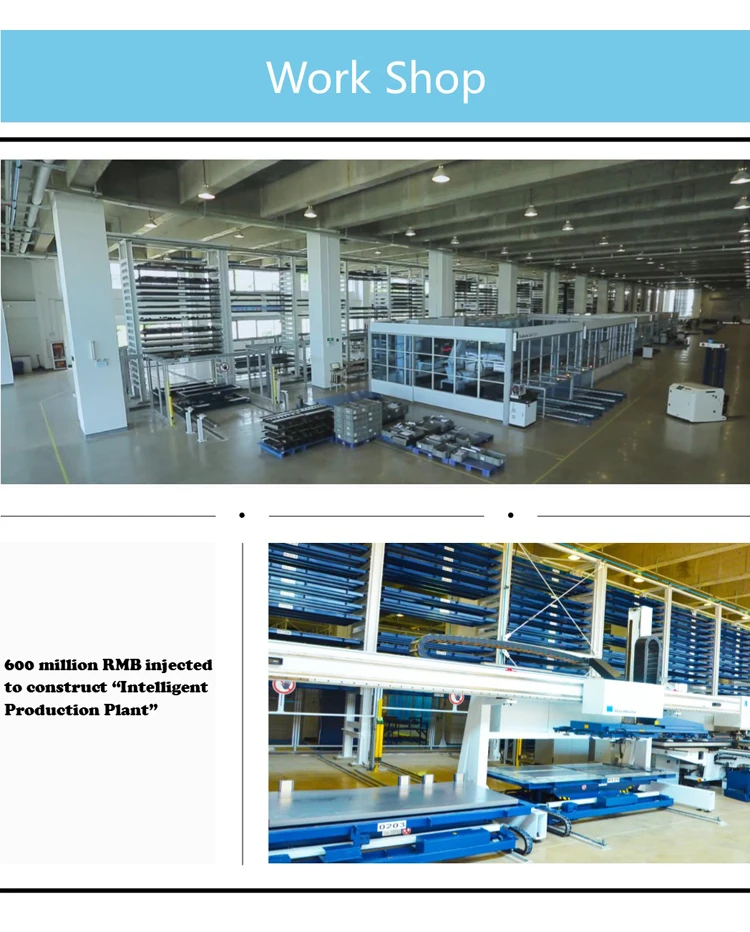

Company Information

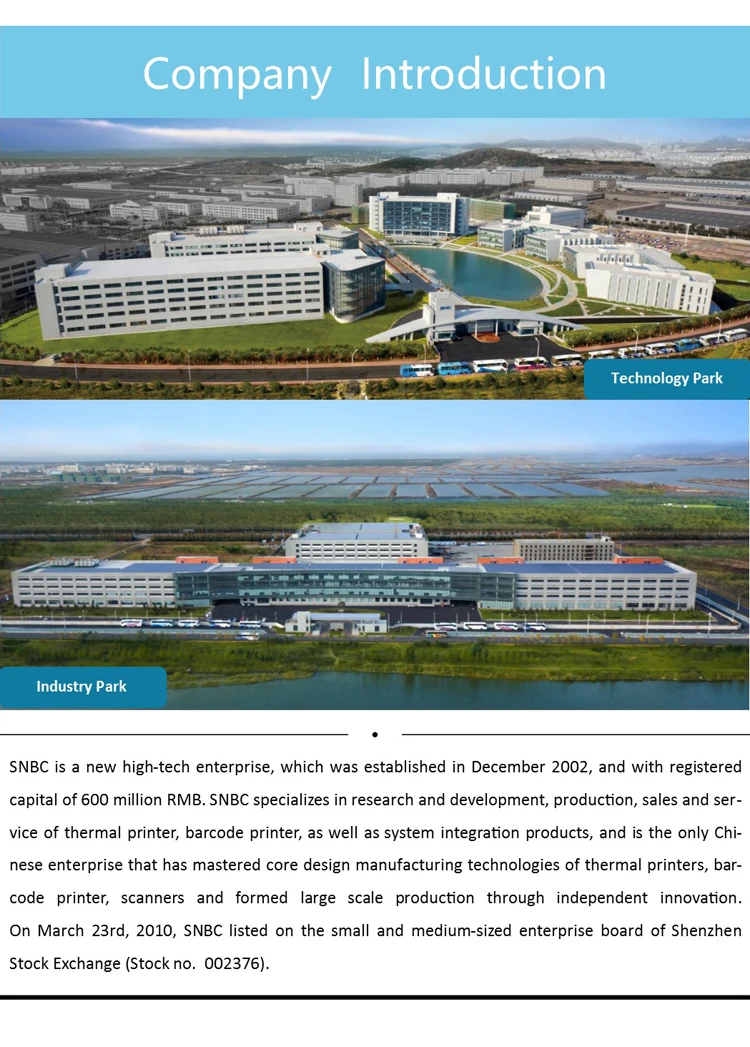

Shandong New Beiyang Information Technology Co., Ltd. (hereinafter referred to as ”SNBC”) is a new high-tech enterprise, which was established by Weihai Beiyang Electric Group Co., Ltd. in December 2002. SNBC has the registered capital of 600 million RMB. On March 23rd, 2010, SNBC listed on the small and medium-sized enterprise board of Shenzhen Stock Exchange (Stock no. 002376).



SNBC specializes in research and development, production, sales and service of thermal printing, identification as well as smart system integration products provides leading products and complete solutions for many industries in the world,  and is the only Chinese enterprise that has mastered core design manufacturing technologies of special printers, scanners and formed large scale production through independent innovation.



SNBC is a high-tech enterprise, key software manufacturing enterprise in the State planning, and National technology innovation demonstration enterprise who owns the sole “State-Accredited Enterprise Technology Center” in the Chinese special printer industry, and the laboratory has been accredited by China National Accreditation Service for Conformity Assessment (CNAS). The small thermal transfer printer won the Second Prize of the National Science and Technology Awards, the Thermal Print Key Technology and Product Industrialization Project won the 2009 Significant Technical Invention Award of the Chinese Information Industry.



SNBC owns the most patents in special printing and scanning industry in China. China’s two national standards “Thermal Printer General Norms” and “Sheet-fed Scanner General Specification” which was mainly drafted by SNBC has officially released. SNBC is also the chief drafting organization of national standard “Label Printer General Technical Specifications”.



Besides printing, SNBC is also one of the largest intelligent parcel locker manufactures in China with over 20,000 sets of lockers installed in residential communities, office bulidings, campus, retail centers in China. SNBC is providing flexible and reliable hardware& software solution including installation, operation and maintenance service. We not only satisfy customer with "The first and last mile" delivery solution, but also steps further to service our customer and their customer based on their specific requirements.



SNBC has three main series of products, including key basic parts, complete printers and system integration products. SNBC is capable of conducting all-round testing involved in product reliability, environment, mechanism, safety, electromagnetic compatibility and harmful substance detection, and has established a complete management system involved in design and development, supply chain control and customer service according to related international standards. All products are designed and produced according to related international requests and certification, and have passed RoHS-certified.



SNBC has established an international sales service network, and our products have been in batches exported to many countries and regions in Europe, North America and Asia-Pacific. Holding the largest comprehensivemarket share of China’s specialty printing/scanning market among Chinese brand enterprises, SNBC is a professional manufacturer and service provider of special printer and scanner.
