Auto Parts BW13238 Sprag Freewheel Cage Bearing Price List

Feature

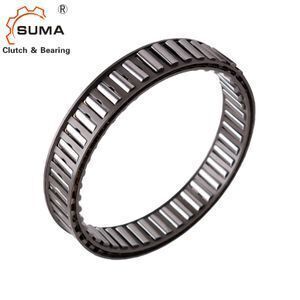

Type BWC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The BWC type version-N accepts all types of lubricants  currently used in the power transmis-sion equipement. The sprag space tolerance must not be exceeded. Inner and outer races must

both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly. Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0, 6 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0, 007 mm for 25 mm width.

Data Sheet

Different Sizes Of Sprag Freewheel Cage X,BW,BWC

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality

Q: How do you pack the goods?

•  Total less than 25 KG :  Each in white box + 19*18*9cm box + 29*28*19CM carton box

•  Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A:  It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

•    Small items: In stock.
•     Medium Items: 10-15 Days
•     Big items: 20-25 Days
