Form, fill and seal machines with 10 rotary stations

  • Supplier: SN-Maschinenbau GmbH
  • Region: North Rhine Westphalia, Germany
  • Contact: Michael Tepel
  • Price: $512002.50 /piece
  • Min. Order: 1 piece
Product details
Warranty:Unavailable;6. Machine dimensions L x W x H [mm]:ca. 4.900 x 2.400 x 2.200;
Packaging Detail:1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container. 2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details. 3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.;Brand Name:SN Maschinenbau GmbH;
5. Air consumption:ca. 550 Nl/min, 6 bar;1. Packing material:sealable laminated film;
Place of Origin:Germany;Port:Wipperfuerth;
4. Voltage [V]:400 / 230 / 24;After-sales Service Provided:No after-sales service;
2. Electricity power [kVA]:ca. 10 - 30;3. Electricity supply:3 x 400/230V + N + PE, 50/60 Hz;
Product Description

Description:



The technically high-quality and intermittently operating rotary machines include the FM 215 to FM 515. They are suitable for the production of flat bags or stand-up pouches into which resealing systems can also be incorporated. From the role, these packaging machines produce bags which can be filled with almost all types of products with different consistencies.
High-value technologies
Duplex, Triplex, Quadro, Quinta available
10 stations for the multi flexible use of filling systems and additional equipment (e.g. Nitrogen gassing)
Up to 20% savings of packaging material by using thinner foil
Fully developed servo drives
Servo driven sealing systems
Up to 20% savings of packaging material by using thinner foil
Easy access for operators
Compact, modular design
Dosing systems: Slide doser, auger doser, scales, micro doser for smallest volumes, rotary and valve pump doser, flow meter systems
Hygienic design and easy cleaning
Central operation and visualization on touch panel



Characteristics:



Packing materialsealable laminated film
Electricity power [kVA]ca. 10 - 30
Electricity supply3 x 400/230V + N + PE, 50/60 Hz
Voltage [V]400 / 230 / 24
Air consumptionca. 550 Nl/min, 6 bar
Machine dimensions L x W x H [mm]ca. 4.900 x 2.400 x 2.200

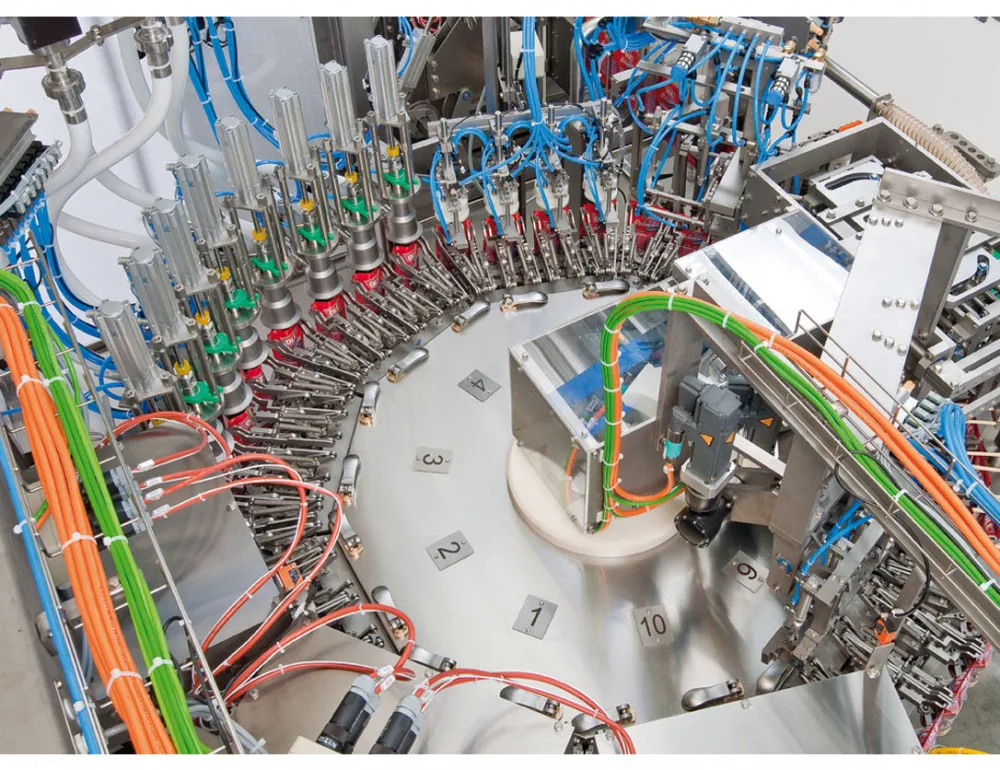

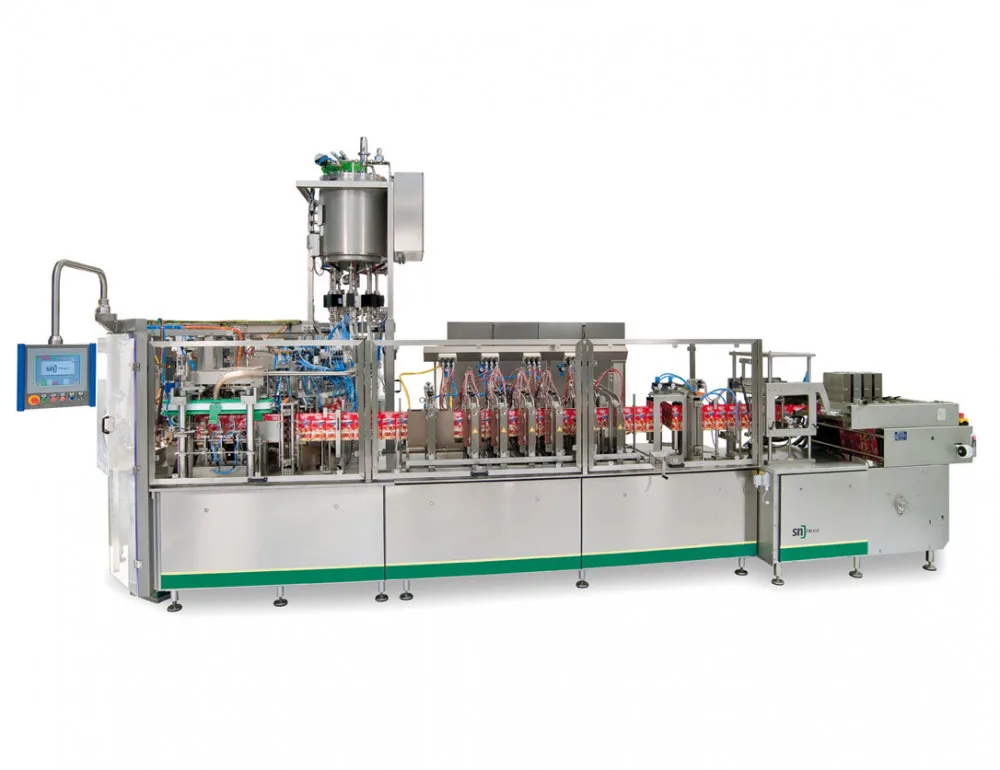

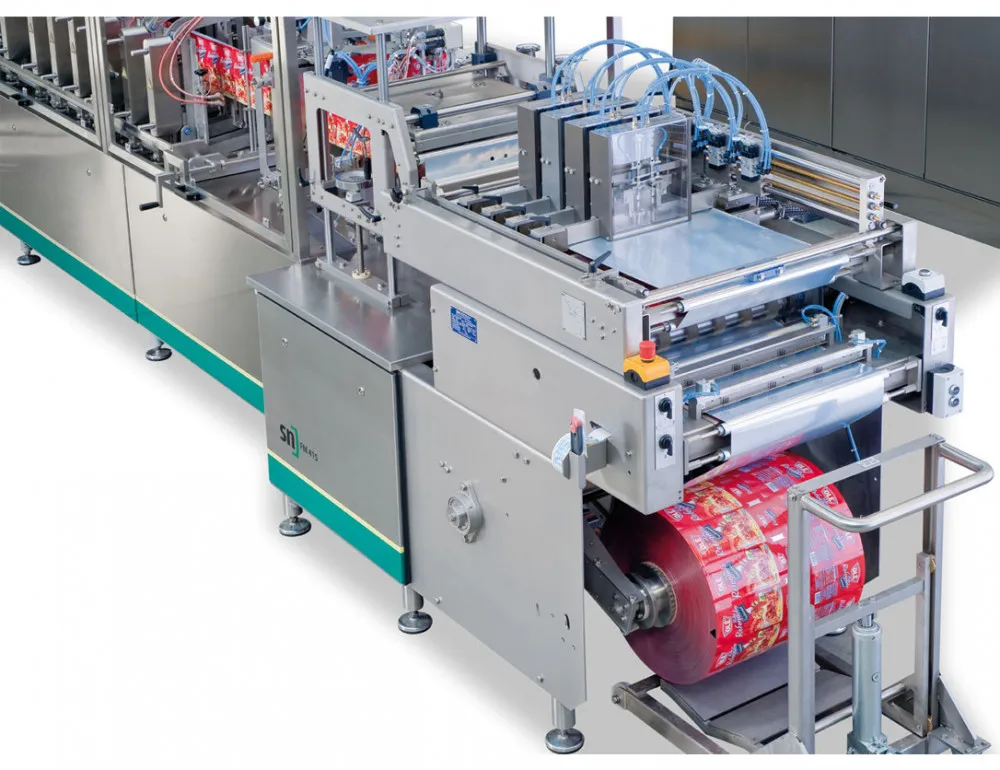

Pictures:









Payment Options



We offer various payment options. Please contact us for futher details.



Packaging & Shipping



  1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.
  2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.
  3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
Company Information



SN Maschinenbau GmbH

http://ky.to/www.sn-maschinenbau.com/



SN German Pouch-Pack Technology supplies you with customized horizontal working form, fill and seal pouch packaging machines with high efficiency for nearly all products. At the SN Technology Center in Wipperfuerth near Cologne/Germany, more than 250 specialists fulfill every single customer request.
More than 60 years of experience make us one of the most important manufacturers and world market leader for horizontally working FFS and FS rotary machines. Our reliable machines produce flexible packaging for food, beverages, pet food, seeds, household, cosmetic or pharmaceutical products.
