computerized automatic socks making knitting machine price for sale

Supplier: Shaoxing Rainbowe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ophelia Yeung
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Blue or Grey;	Condition:	New;
Production Capacity:	250~380 Pairs/ 24 hours;	Servo motor and driving:	YMK brand, which is stable in performance;
Place of Origin:	Zhejiang China;	Dimension(LWH):	0.940.751.6M;

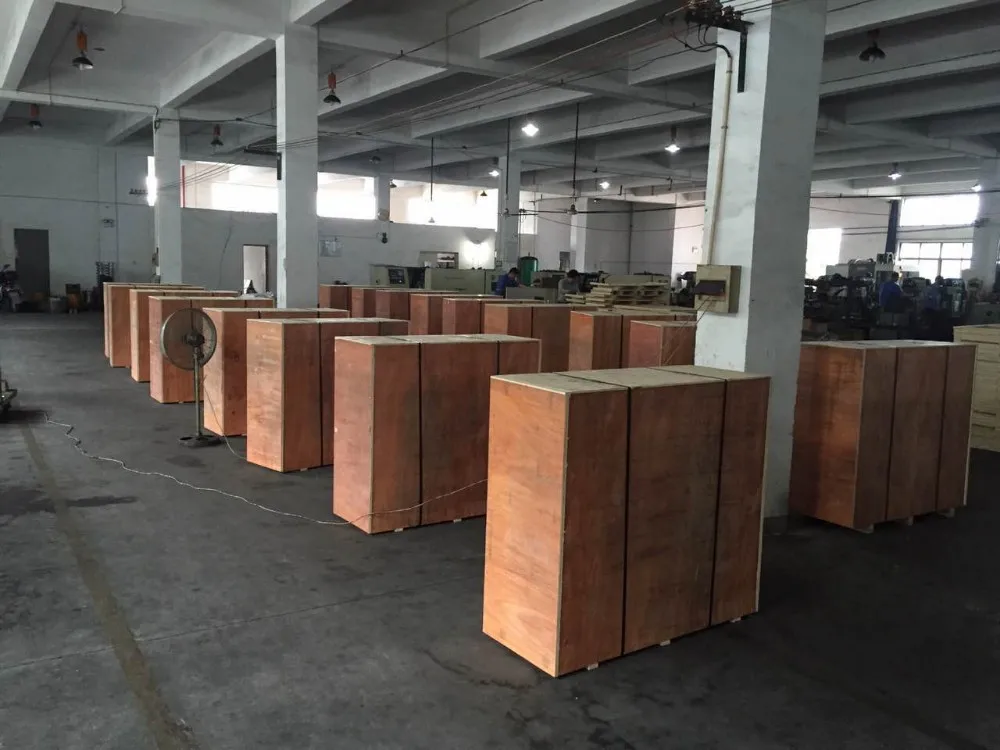

Packaging Detail:	plywood case 18 sets can be loaded in 20ft container, 39 sets in 40ft container;	Production Capcity:	250~380 pairs per 24 hours according to different sizes of socks;
Port:	Ningbo, Shanghai, Lianyungang, etc;	Item:	Machines for making socks;
Power(W):	1.5KW;	Diameter of Cylinder:	3.75'';
Type:	Jacquard Knitting Machine;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Voltage:	380V/220V/415V, etc;	Display or controller:	Mingde or Glory;
Warranty:	Spare parts one year;	Needle brand used:	Feijian, a famous brand in China;
Brand Name:	Rainbowe;	Needle Count:	96N 108N 120N 144N 156N 168N 200N;
H.S Code:	84471100;	Kinds of Sock:	Terry and Plain Sock;
Weight:	300KGS;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Supply Ability:	500 Set/Sets per Month socks making knitting machine price for sale;	Certification:	CE;

Product Description

Standard Function

Introduction

1.Machine is with 8 main feeders and 5 groups of auxiliary feeders, 6 colors can be knitted in one horizontal line, and max. 16 colors can be knitted in one sock
2.Double down pickers, up pickers are adopted, improving and increasing the toe/heel knitting speed, also can knit big or small sock heels, high heels
3.High speed controlling system is adopted with muti-languages: English, Russian, Spanish, Arabic etc. UPS function can keep the running program when electricity fails and can continue the previous program when electricity is on again. And huge qty of pattern files can be stored in the sock machine computer system
4.Automatic lubrication system, making it easy for sock machine maintenance. Besides needle or yarn breakage, electronic error will be shown on the display automatically, lessen the sock defective rate and needle consumption
5.Easy pattern designing software, which can be installed and used on personal computer
6.Branded pneumatic system is adopted, making sure more accurate controlling, quicker movement, longer machine life
7.Double elastic motors are used for more convenient and precise sock density adjustment
8.Running cams are manufactured by our own CNC equipment, making sure the quality, stability, and duration
9.Quality cylinder is used preventing white oily socks

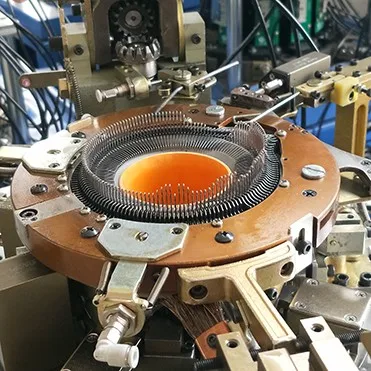

3.75 inch cylinder

As the most important part of socks machine used to knit socks. The diameter cylinder of this model is 3.75 inch, which is suitable for making normall summer socks. The needle counts of cylinder can be choosen according to the different age group.
96N 108N 120N - usually baby socks
132N - teenagers' socks
144N - ladies or men's socks
156N 168N 200N - men's socks

Double use machine

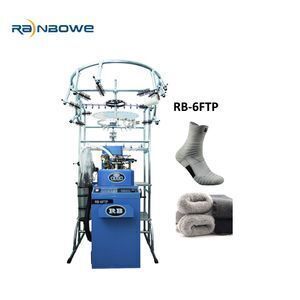

RB-6FTP is double use sock machine model, which is suitable for both summer wearing plain thin type socks and winter wearing terry thick type socks.

Pay only 1 machine cost but can make 2 different kinds of socks, it is really a economical choice!

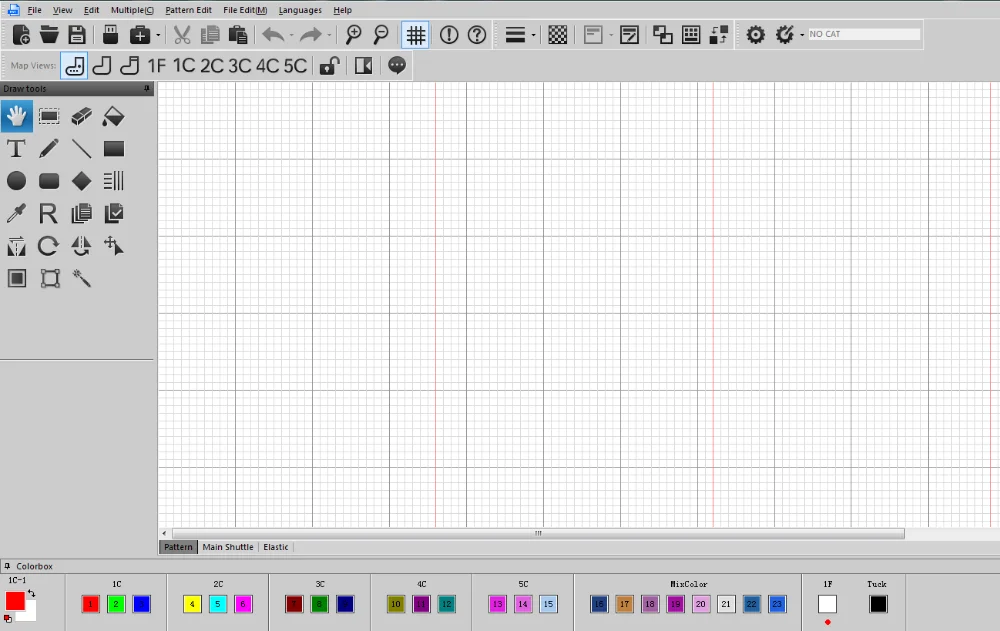

Pattern designing software

Easy pattern designing software, which can be installed and used on personal computer. You can design socks patter with your own idea, to make DIY socks as you like!

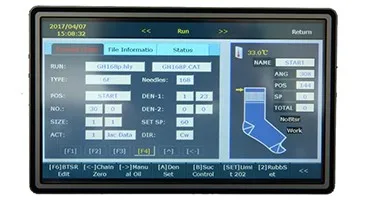

Electric cabinet interface

It is a controller with mingde brand which is a famous brand in China. There is double system can be installed which be with mingde system and glory system ( If needed, Hengqiang controller with jiagu system can be also optional ).
It is with touch screen combined with keyboard which will be more convienient. computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale

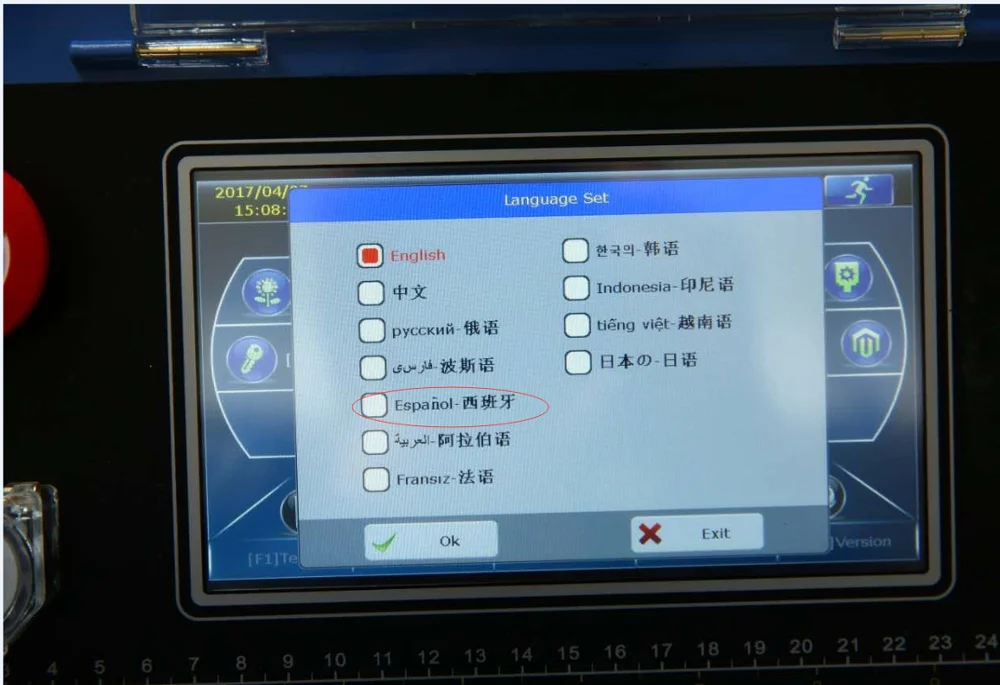

Language

The language for systems can be setting in 11 kinds: Chinese, English, Spanish, Arabic, Japanese, Vietnamese, Indonesian, Korean, French, Persian, Russian,etc. computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale

Selector

It is used to control the Jacquard needles to make jacquard patterns as you like. Mingde brand as standard configuration, Fushun brand will be option if buyer requires. computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale computerized automatic socks making knitting machine price for sale

computerized automatic socks making knitting machine price for sale

Standard accessary

For each machine, there will be some standard accessary sent together with machine, which are easily broken or often used.

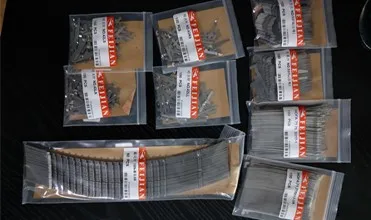

The picture shows a part of the needle, and there will be other spare parts, such as ring cutter, small cutter, sinker cover, main feeder, plain bridge, sinker spring, etc. If you want more, it is also available for us to provide.

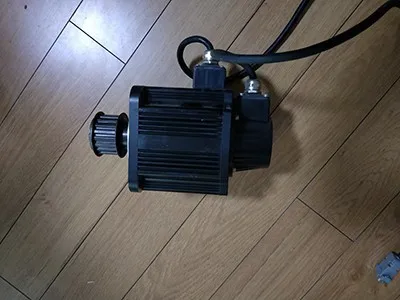

Servo driving & Motor

The key part of socks machine to drive the machine running. Royaltec or Y.M.C brand are both stable in performance and less repair which can be choosen as you like.

Optional Function

1. Suction fan motor 1.1kw (for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over 10 sets, central suction fan motor is better, which can help save electricity consumption greatly)
2. Solenoid on main feeders, sub-feeders, valve box
3. Double elastic motors, double elastic feeders
4. Invisible sock function
5. BTSR yarn break sensors
6. LGL or Chinese brand accumulators
7. Robert yarn creels
8. Power: 220V, 3-phase
9. Machine colors: blue or grey

Production Introduce

1. Pre-production Equipment :

Air Compressor, Air Compressor Storage Tank, Filter, Cooling Drier, Stabilizer, Suction Fan Motor
The above-mentioned equipment sizes or power will be different according to different quantity of sock machine For example, the equipment needed for 10 sets of sock machine will be different from 20 sets of sock machine
