port: | Shanghai/Ningbo/Guangzhou | brand: | Rosso |
After-sales service provided: | On-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support | Origin: | Zhejiang, China |
Dimensions (L*W*H): | 1.5*1.0*2.2M | Package preview: | |
payment terms: | L/C, T/T, Western Union, MoneyGram | weight: | 380KG |
Voltage: | 380V | Certification: | CE certificate |
Warranty: | 1 year | Health status: | new |
type: | socks machine | strength: | 1300 |
Packaging Details: | Moisture-proof inner packing wooden box outer packing | Supply capacity: | 500 sets per month |
Production capacity: | 200-300 pairs/day |

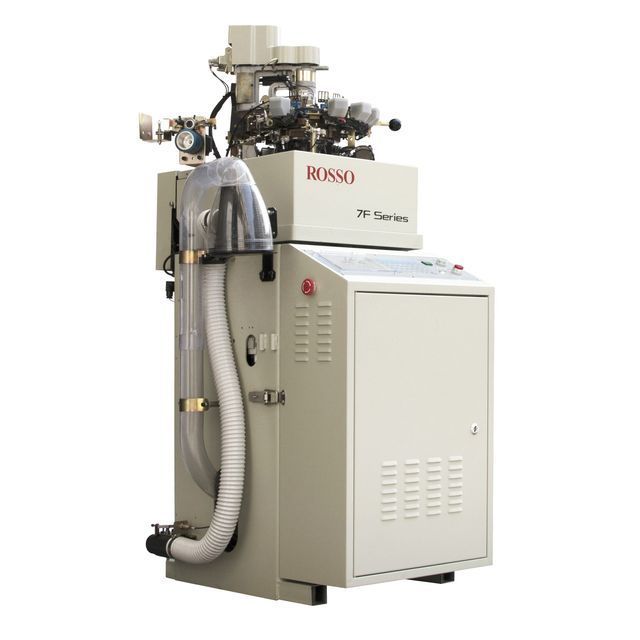

ROSSO-7F series | |
Cylindrical diameter | 3.75 inches |
model. | RC-7F-1 |
application needle | Plain: 84N-200N / Terry: 84N-200N |
Maximum speed | Primary color: 320RPM / Terry: 300RPM |
Voltage | 380V |
site area | 150*100*220cm |
gross weight | 380KG |
Click to get the latest price now! |
Knitting Features:
This machine can produce plain, terry, jacquard, tuck, mesh, double rib and other fabrics, especially suitable for making multi-color embossed jacquard socks, three-dimensional socks, cartoon socks, elastic slim socks, business socks, casual socks.
Machine Features:
1. It can knit 1 main color and 6 sub-colors on one thread at the same time, with 9 main shuttles and 17 sub-shuttles.
2. Strong adaptability to terry materials, large variation in process size, and high flatness of socks.
3. The heel rubber can be flexibly connected, no need for fixed positions for hanging loops and patterns, and the range is not limited.
4. The 6c cam can control the reinforcement weaving arbitrarily, and the control can be realized without feeding the cloth again.
5. There are fewer replacements for invisible socks.
6. When weaving the heel, it can be controlled continuously without mechanical restrictions.
