ROSSO- 696 socks linking machine socks sewing closing machine

Product details
Dimension(L*W*H):98*48*132cm;Warranty:1 Year;
Power:1070W;Type:Socks linking Machine;
Supply Ability:500 Set/Sets per Month;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Place of Origin:Zhejiang China;Weight:119KG;
Title:ROSSO- 696 socks linking machine socks sewing closing machine;Condition:New;
Packaging Detail:ROSSO- 696 socks linking machine socks sewing closing machine Standard wooden Case;Brand Name:ROSSO;
Production Capacity:1000 pairs/h;Voltage:220V;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Online support,Video technical support;Port:NingBo Shanghai Guangzhou;
Certification:CE Certificate;Package Preview:;

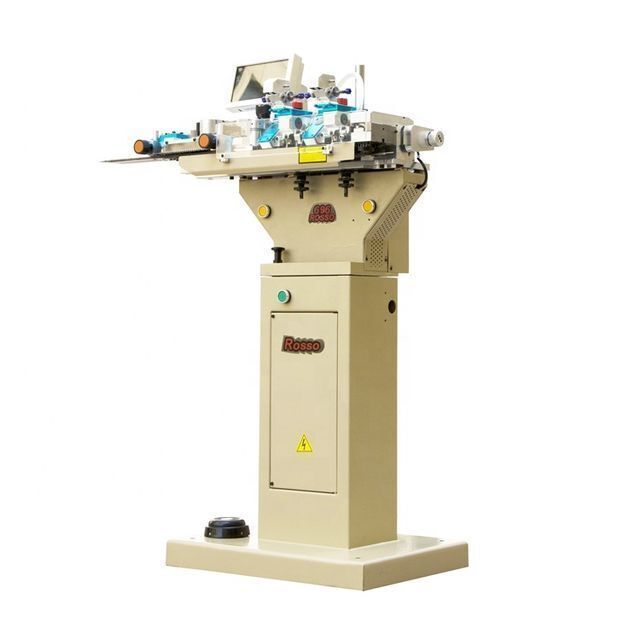

 ROSSO- 696 socks linking machine socks sewing closing machine



Product Description





ROSSO-SOCKS LINKING MACHINE
Voltage220V (special country voltage 110V can be customized )
Power

1070W (fan370W,machine700W)

Frequency

50-60Hz

Gross weight119KG

Package size

98*48*125CM
Max speed4500RPM
  Click to get latest price now!









Functional characteristics

1.Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.

2.Adopting automatically cutting device,the sutures will be cutting unified length.

3.Turnover yarn feeding device makes the yarn cleaning conveniently.Inner automatic hoisting device is for conveying purpose,assure the sock’s flatness.

4.An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed,which reduces the waste of sutures substantially when sewing.

5.Adopting dual channel nose device,makes the sock sewed with fine flat seams.

6.Point-contact touch screen computer control system makes it easy to handle.

7.Single motor control for dual-channel heads. Density can be adjusted at any time through the computer.The lines can be closed together to match the hand-stitching.The pattern can also be separated from the tensile strength by hand.More able to adapt to different types of socks for sewing requirements.

8.The separate motor control of the conveyor drive chain more effectively controls the elongation or shortening of socks during sewing.More able to adapt to different types of socks for sewing requirements.

9.There is an automatic hoisting device between the first nose and the second one,act as anti-dropping apparatus when one-sided of socks suddenly fall off.This comes to a better flatness and sewing quality,close to handsewer’s job.

Different of our machine
MODLEMotorAdvantageDisadvantage
6361 set Difficult to link perfect.
6763 setAfter linking, the stitch is distinctly.Socks with different stitches need different gears.
6666 setCan adjust the density on control computer,socks can stretch out and draw back,well-adapted.Bad distinct,the motor has inertia ,start and stop can’t fall in the same place.
6965 setTwo needles are distinct,needle stitch is distinct,four wires.Can adjust the density on control computer,socks can stretch out and draw back,well-adapted.





Related Products

Packaging & Shipping





Company Information







ROSSO Company Established in 2002 year, our company is a professional manufacturer and exporter of Sock sewing machines, integrating design, development and production. We are located in Beautiful XiShiGuLi of ZhuJi Shaoxing, Zhejiang, with convenient transportation access . All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.We have over one hundred employees and an annual sales figure that exceeds USD$5 million.We are specialized in manufacturing socks sewing machine about ten years and we have about twenty engineer to develop our machine. So we will produce the socks machine in this year.Our Machine are exported to many countries and regions. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. We have the Q&C department to control the quality and have a very good after-sevice group to sevice. So you don't worry about the quality and sevice.As a result of our high quality products and outstanding customer services, we have gained a global sales network reaching Brazil, Turkey, India, Bangladesh, Vietnam, Pakistan and so on.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
