rainbowe 3.75 6ftp fully computerized automatic circular jacquard socks knitting manufacturing making sock machine

Supplier: Shaoxing Rainbowe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ophelia Yeung
Price: $3880.00 / 1 - 2 sets
$3580.00 / 3 - 8 sets
$3380.00 / 9 - 18 sets
$3280.00 / >=19 sets
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Certification:	CE Certificate;
Voltage:	220V/380V;	Needle number:	72N-168N, 200N;
Brand Name:	Rainbowe;	Needle:	Feijian;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Packaging Detail:	polywood case 18 sets can be loaded in a 20ft container; 39 sets for a 4ft container.;
Machine name:	computer industrial socks production line sock knitting machine price;	Machinery Test Report:	Provided;
Condition:	New;	Marketing Type:	Hot Product 2020;
Dimension(LWH):	150120240CM;	Power:	1.1KW;
Package Preview:	;	Production Capacity:	300~380 Pairs/24hours;
Drive Control:	Servo Motor;	Production capacity:	300~380 pairs/24 hours dependin on the size of socks;
Warranty of core components:	1 Year;	Supply Ability:	500 Set/Sets per Month sock machine price;

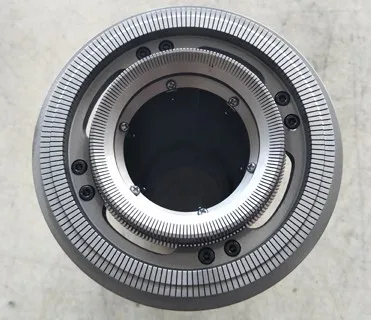

Cylinder diameter:	3.75'';	Key Selling Points:	Easy to Operate;

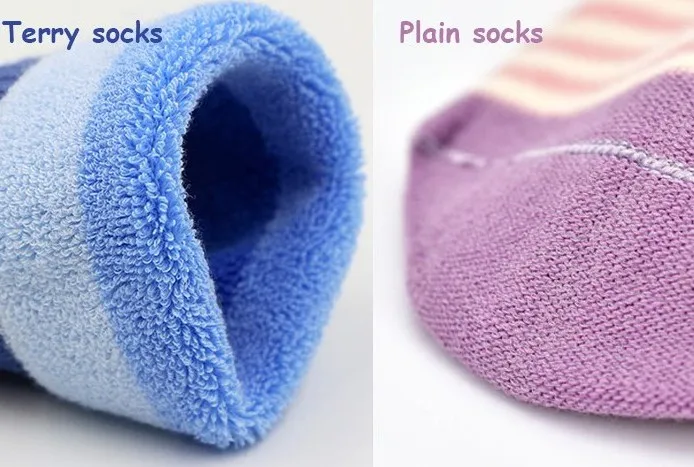

Local Service Location:	None;	Kinds of Sock:	Plain or Terry;
Port:	Ningbo, Shanghai, Lianyungang, Zhenzhou etc.;	Showroom Location:	None;
Place of Origin:	China;	Warranty:	Spare parts for one year guarantee,One Year;
Payment Terms:	L/C,Western Union,T/T,MoneyGram;	Weight:	305KGS;
Type:	Jacquard Knitting Machine;	Control system:	Fully Computerized;
Applicable Industries:	Manufacturing Plant,Home Use,Retail,Sock Making Factory;	keyword:	compression socks machine;
Core Components:	Motor;

Standard Configuration Introduction

1. Controller: Mingde controller is adopted which is compatible with glory system. Glory/ Hengqiang(Jiagu Software) are also optional.
2. Servo Motor: Royaltec or Y.M.C, both of them are stable in performance and less repair rate.
3. Pneumatic Cylinder: LIDING, best brand in China.
4. Selector: Mingde brand as standard configuration, Fushun brand will be optional if buyer requires.
5. Needles: Feijian or Golden Roc brand.
6. Cams: CR12MOV material are used instead of casting part, which has a longer life.
7. Standard air valve configuration.
8. Package: Plywood case, usually 18 sets can be loaded in a 20ft container and 39 sets in a 40ft container.
9. Electricity Required: 380V 3-phase,and 220V can be optional.

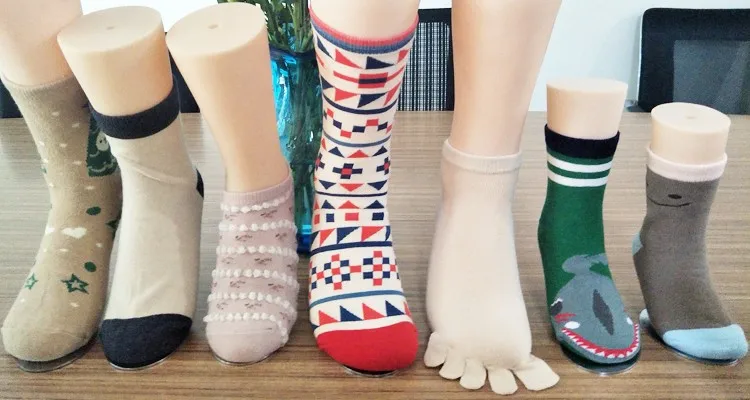

With standard configuration, Max.16 colors can be knitted on one sock, the length, and density can be set up on the machine controller, patterns can be designed through the software according to buyers' requirement, therefore, there are a lot of different types socks can be made, like cotton socks, polyester socks, woolen socks, etc, thin socks, thick socks, high knee socks, low cut socks, jacquard socks, flat socks, five toe socks, two toe socks, football socks, 3D socks, etc.

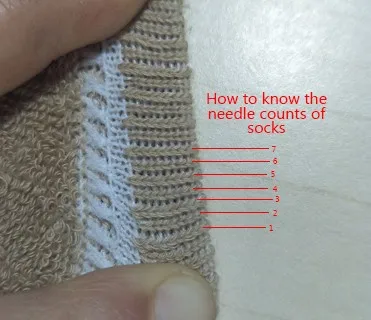

The needle counts of socks machine is also important which influence the yarn consumption, natural size of socks, etc.

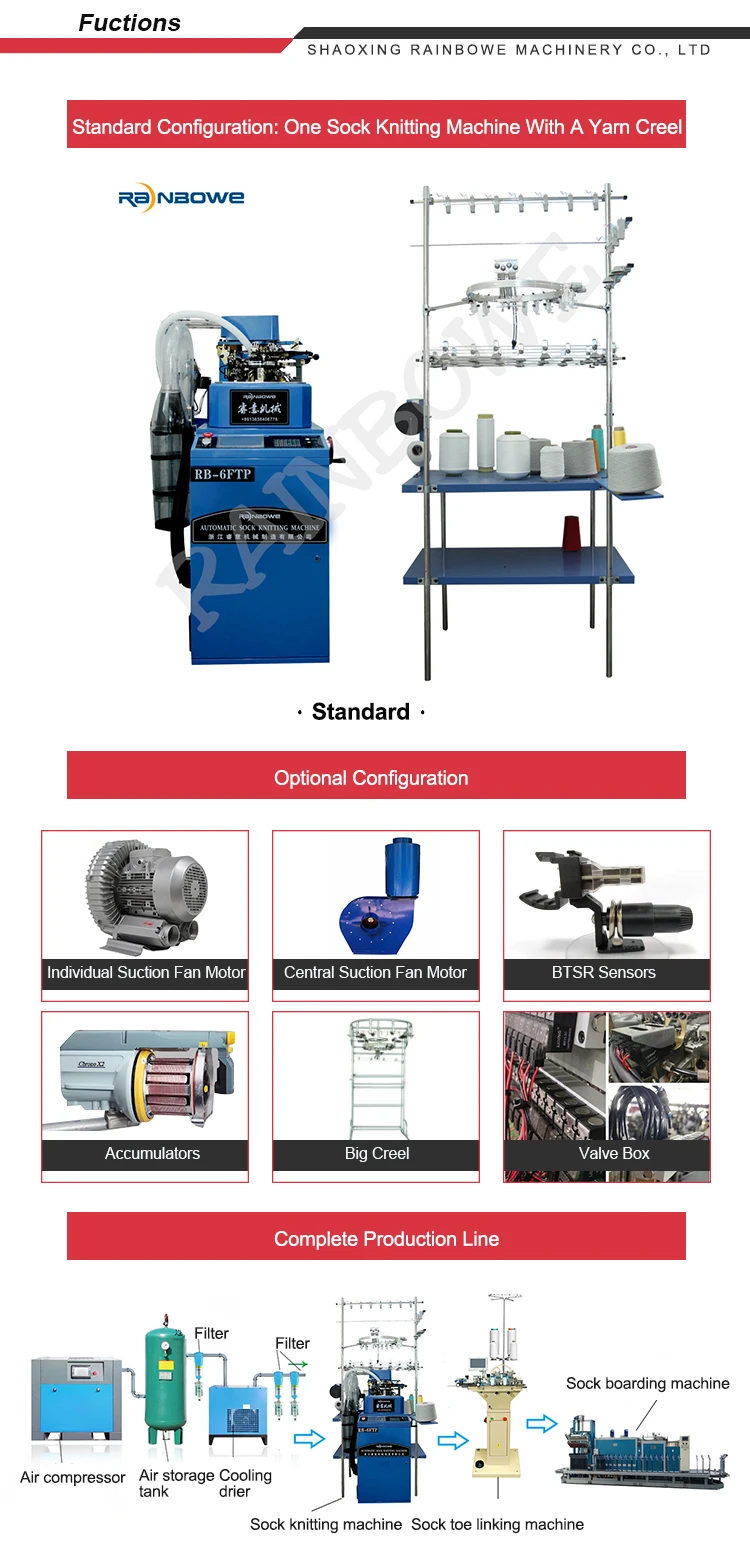

Pre-production Equipments

1. Air compressor

2. Suction fan motor

3. Air storage tank

4. Filter and air dryer

5. Stablizer

Sock Knitting machine

Choosen most suitable sock knitting machine ( cylinder diameter, needle counts, socks type) depends on the socks you want to make.

After-treatment Machines

1. Socks toe linking machine

Type: one motor, two motor, three motor, five motor, six motor

2. Socks boarding machine

Type: rotary steam, box steam, simple

The differences of auxiliary machine between different quantity of socks machine

	1/2 set sock knitting machine	10 sets sock knitting machine	20 sets socks knitting machine
Air compressor	1 set with small power	1 set with middle power	1 set with middle power
Suction fan motor	1/2 set individual suction fan motor	1 set central suction fan motor	1 set central suction fan motor
Air storage tank	/	1 set	1 set
Filter and air dryer	/	1 set	1 set
Stablizer	/	1 set	1 set
Socks toe linking machine	1 set	1 set	1 set
Socks boarding machine	1 set simple sock boarding machine	1/2 set simple sock boarding machine	1 set box steam or small rotary socks boarding machine
