Bosch rexroth a2f a2fo a2fm a2fe a2fe45 a2fo12 a2fm32 a2fm45 a2fm80 a2fm180 a2fm200 axial piston hydraulic pump and motor

Supplier: Ningbo Helm Tower Noda Hydraulic Co., Ltd
Region: Zhejiang, China
Contact: Mr David Liu
Price: $400.00 /set
Min. Order: 1 set

Click here to contact

Product details

theory:	rotary pump;	Port:	Ningbo/Shanghai;
power:	hydraulic;	structure:	piston pump;
Place of Origin:	Zhejiang China;	Type:	piston pump;
Brand Name:	Helm Tower;	Payment Terms:	L/C,T/T;
Supply Ability:	5200 Set/Sets per Month;	Packaging Detail:	Standard export package;
pressure:	high pressure;

1. Product Features:

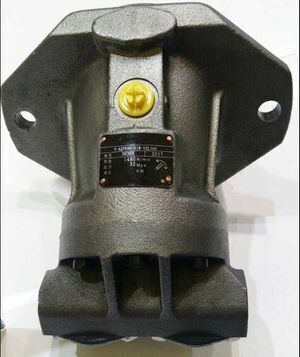

A2FM fixed piston pump

Low noise level,Fast response,Service-friendly,High self-priming speed,Compact design

Size			10	12	23	28	45	55	63	80	107	125	160	200	250	355	500
Displacement			9.4	11.6	22.7	28.1	44.3	54.8	63	80	107	125	160	200	250	355	500
Max Speed n max(e/min)	Close Circuit		7500	6000	5600	4750	4500	3750	4000	2250	3000	3150	3650	2500	2500	2240	2000
	Open Circuit	0.09	4700	3750	3750	2800	2850	2360	2550	2120	1900	2120	1650	1700	1400	1250	1120
	Inlet Pressure	0.1	5000	4000	4000	3000	3000	2500	2700	2240	2000	2240	1750	1800	1500	1320	1200
	(Pabs=Mpa)	0.15	6000	4900	4900	3600	3550	3000	3300	2750	2450	2750	2100	2180	1850	1650	1500
Max Flow Q max(l/min)	Close Circuit		71	70	127	133	199	206	253	268	321	394	424	500	625	795	1000
	Open Circuit	0.09	43	42	83	76	122	125	156	165	197	257	256	330	340	430	543
	Inlet Pressure	0.1	46	45	88	82	129	133	165	174	208	272	272	349	364	455	582
	(Pabs=Mpa)	0.15	55	55	108	98	157	159	202	213	251	333	326	423	449	568	728
Max Power Pmax(Kw) P=35Mpa	Close Circuit		41	41	74	78	116	120	147	156	187	230	247	292	365	454	583
	Open Circuit	0.09	25	25	48	44	71	73	91	96	115	150	149	192	198	251	317
	Inlet Pressure	0.1	27	26	51	48	75	78	96	101	121	159	159	204	212	265	340
	(Pabs=Mpa)	0.15	32	32	63	57	92	93	118	124	148	194	190	247	262	331	424
Electric Motor Speed n=1450r/min	Close Circuit		13.6	16.8	32.9	40.7	64.2	79.5	91.3	116	155.2	181.2	232	290	363	515	725
	Open Circuit		13.2	16.3	31.9	39.5	62.3	77.1	88.6	112.5	150.5	175.8	225	281	352	499	703
	Close		7.9	9.8	19.2	23.7	27.4	46	53	67.7	90	106	135	169	212	300	423
	P=35Mpa Open		7.7	9.5	18.6	23	36.3	45	51.7	66	88	1.3	131	169	212	300	423
Torque	P=10Mpa		15	18	36	44.7	70	87	100	127	170	199	254	318	398	564	795
Torque	P=35Mpa		52	65	126	156	247	305	351	445	595	696	890	1113	1391	1976	2783
Approx Weight (kg)			5	5	12	12	23	23	33	33	44	63	63	88	88	138	185

2. Appliation:

Our pumps and motors are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.

3. Packaging&Shipping:

Packaging

1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.

2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.

Shipping

urgent & small gross weight by air

big gross weight by sea

4. Company Information:

About US
By the way, we introduce ourselves as follows: our company belongs to Wenkui Group Company,
which is a professional manufacturer for hydraulic systems, motors,pumps and parts,including:

Japanese IHI vane motor with three series of HVK,HVN,HVL total 10 size which can used in ship crane and port crane.
Poclain MS series Motors and Parts:MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83,MS125
Rexroth Motors and Parts:MCR03,MCR05,MCR10,
Hydraulic drum cutter.HDC05,HDC08,HDC11,HDC18,HDC50..
Rexroth Pumps and Parts:A10VSO,A2F,A2FE,A2FO,A2FM,A6V,A7V,A4VSO,
Danfoss Orbit Motor: OMP,OMR,OMS,OMT,OMV,OMM,
Vickers: PVB,PVQ,PVH,V,Cartridge kits,
Komatsu pumps:705,704series
Daikin pump:V8,V15,V38 etc.
Hydraulic radial piston pump: YCY/MCY/SCY/PCY series ,RK series
Hydraulic Winch, Rexroth GFT,GFB Series Gearbox..
