Model Number: | BSEU40-25; | Package Type: | carton box; |

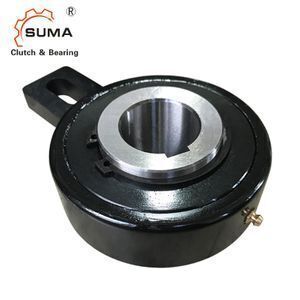

OEM: | Accept; | Product name: | BSEU40-25 Cam Clutch One Way Freewheel Bearing for Textile Machines; |
Model: | BSEU40-25; | Material: | Chrome Steel; |
Precision Rating: | P6; | Type: | Sprag Type; |
Port: | Shanghai;Ningbo; | Seals Type: | no-sealed; |
Selling Units: | Single item; | Single package size: | 29X28X20 cm; |
Max. Overrunning: | 450r/min; | Package: | single box or as your requirements; |
Torque Capacity: | 1440Nm; | Brand Name: | SUMA or OEM; |
Single gross weight: | 5 KG; | Place of Origin: | Jiangsu China (Mainland); |
Delivery Detail: | 0 days after payment; |
BSEU25-25 One Way Sprag Hold Back Backstop Cam Clutch Bearing for Elevator
Model No. | BSEU40-25 |
Size | 40*118*55 MM |
Torque Capacity | 1440 NM |
Rotation Speed | 450 RPM |
Weight | 3.6 KG |
Package | Carton Box / Wooden Box |
Delivery time | 7 DAYS |
Application | Bucket Elevator / Inclined Conveyor |
Detailed Data Sheet for Backstop Clutch

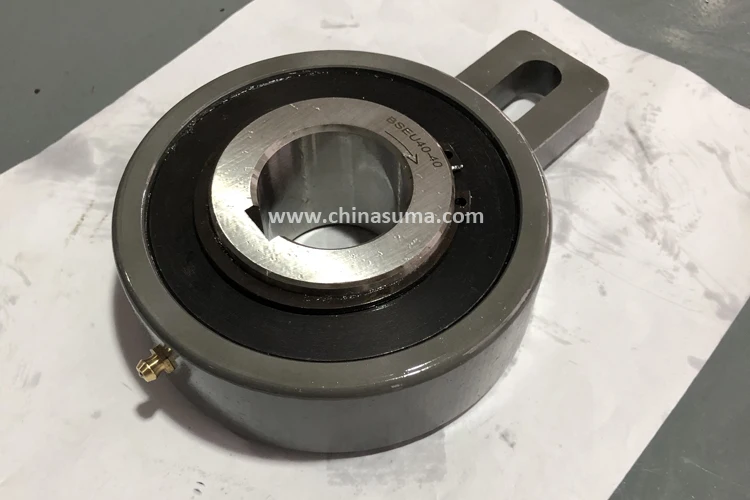

BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the rotation is required. You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation. The recommends BS series Cam Clutch in the very dusty environment condition or the inclined conveyor and the bucket elevator which are used in outside location.

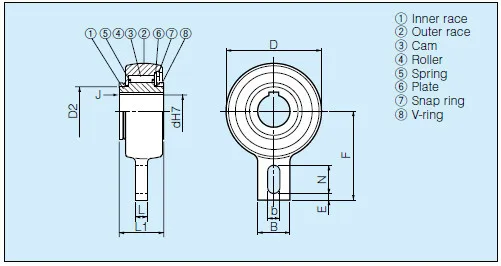

Model | Bore Size | Torque Capacity (N·m) | Max. Overrunning (r/min) Inner Race | D | D2 | L1 | L | B | F | b | N | E | J | W. MIN | W. Max | |
Dia ( H7) | Keyway | |||||||||||||||
BSEU25-20 | 20 | 6×2.8 | 216? | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | 0.999 | 0.948 |
BSEU25-25 | 25 | 8×3.3 | 216? | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
BSEU40-20 | 20 | 6×2.8 | 1,440? | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | 3.781 | 3.363 |
BSEU40-25 | 25 | 8×3.3 | 1,440? | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40-30 | 30 | 1,440? | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | |||
BSEU40-35 | 35 | 10×3.3 | 1,440? | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU40-40 | 40 | 12× 3.3 | 1,440? | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
BSEU70-45 | 45 | 14×3.8 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | 7.607 | 6.541 |
BSEU70-50 | 50 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | |||
BSEU70-55 | 55 | 16×4.3 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70-60 | 60 | 18×4.4 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU70-65 | 65 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | |||

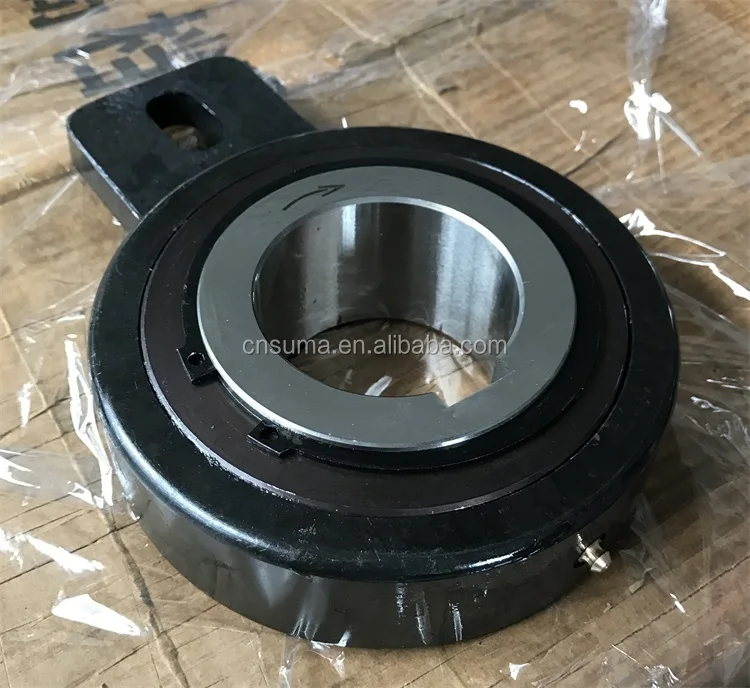

BSEU70-70 | 70 | 20×4.9 | 3,140? | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
BSEU90-75 | 75 | 4,700? | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | 10.046 | 9.265 | |
BSEU90-80 | 80 | 22×5.4 | 4,700? | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
BSEU90-85 | 85 | 4,700? | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | |||
BSEU90-90 | 90 | 25×5.4 | 4,700? | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
