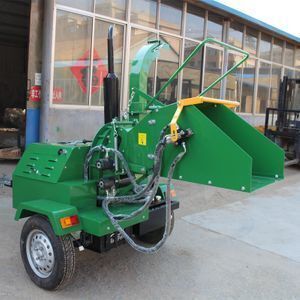

YS-40 40hp mobile wood chipper,hydraulic wood chipper, trailer wood chipper

Click here to contact

Product details

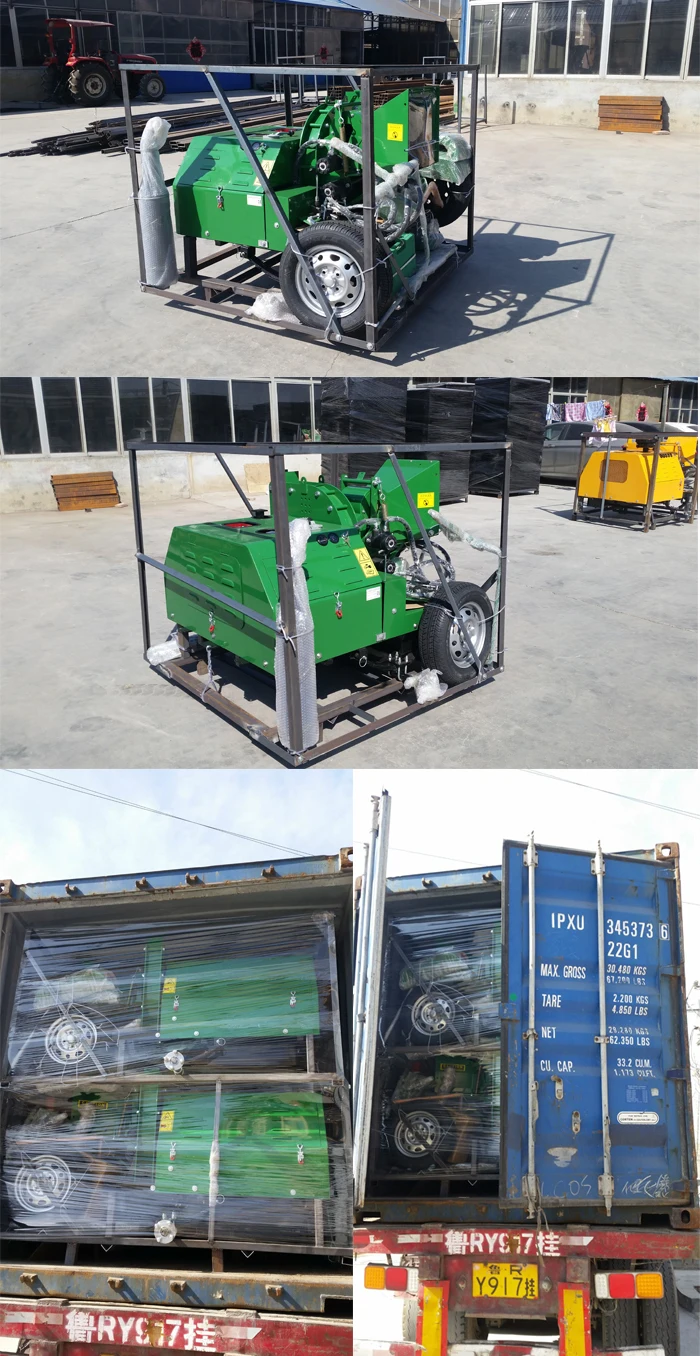

After-sales Service Provided:	Video technical support;	Packaging Detail:	Iron crate;
Number of Cutter:	15;	Brand Name:	YS;
Port:	Qingdao;	Condition:	New;
After-sales Service Provided:	Engineers available to service machinery overseas;	Product name:	Wood Chipper;
color:	all kinds of color;	Weight:	780KG;
Warranty:	1 Year;	Inlet Diameter:	x;
engine mode:	Changchai 490;	Supply Ability:	230 Unit/Units per Month;
Knives number:	1 stationary knife; 2 rotor knives;	Working efficiency:	8-9 m3/h;
Place of Origin:	Shandong China;	Certification:	CE;
Aperture Size:	x;	Length of Cutter:	x;
Payment Terms:	L/C,T/T;	Chip Size:	8 inch;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Construction works ,Food & Beverage Shops;	Feeding system:	full hydraulic (forward, stop and reverse adjustable);
Dimension(LWH):	170015501400MM;	Cutter Diameter:	x;
Mill Granularity:	x;

40HP Diesel Wood Chipper

Product Description

40HP Main Specifications
40HP Main Specifications
Engine	Changchai 490
Type	vertical,water cooled,4-stroke,direct injection
No.of cylinders	4
Bore*Stroke	80*90 mm
Rated power/rev.	29/3000 kw/r/min
Min.fuel consumption	Max.247 g/kw.h
Total displacement	1.809 L
Starting type	electric start
Chipper capacity (diameter)	8 inch
Feeding system	full hydraulic (forward, stop and reverse adjustable)
Rotor plate size	60 cm
Rotor plate weight	85kg
Knives number	1 stationary knife; 2 rotor knives
Dimensions (to hopper discharge)	170015501400MM
Feed hopper inner opening	200*220 mm
Discharge hood height	200 cm
Rated rotary speed	1200 rpm
Total Weight	700 KG
Working efficiency	8-9 m3/h
Features

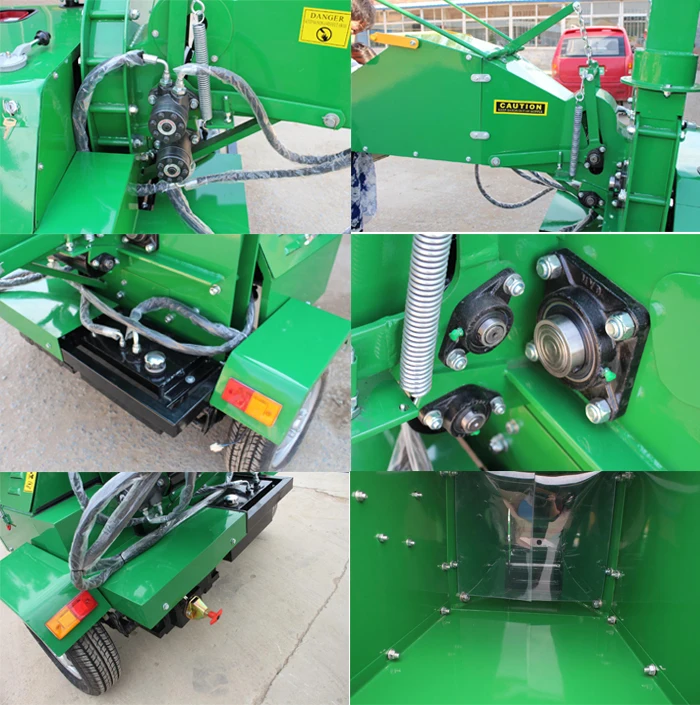

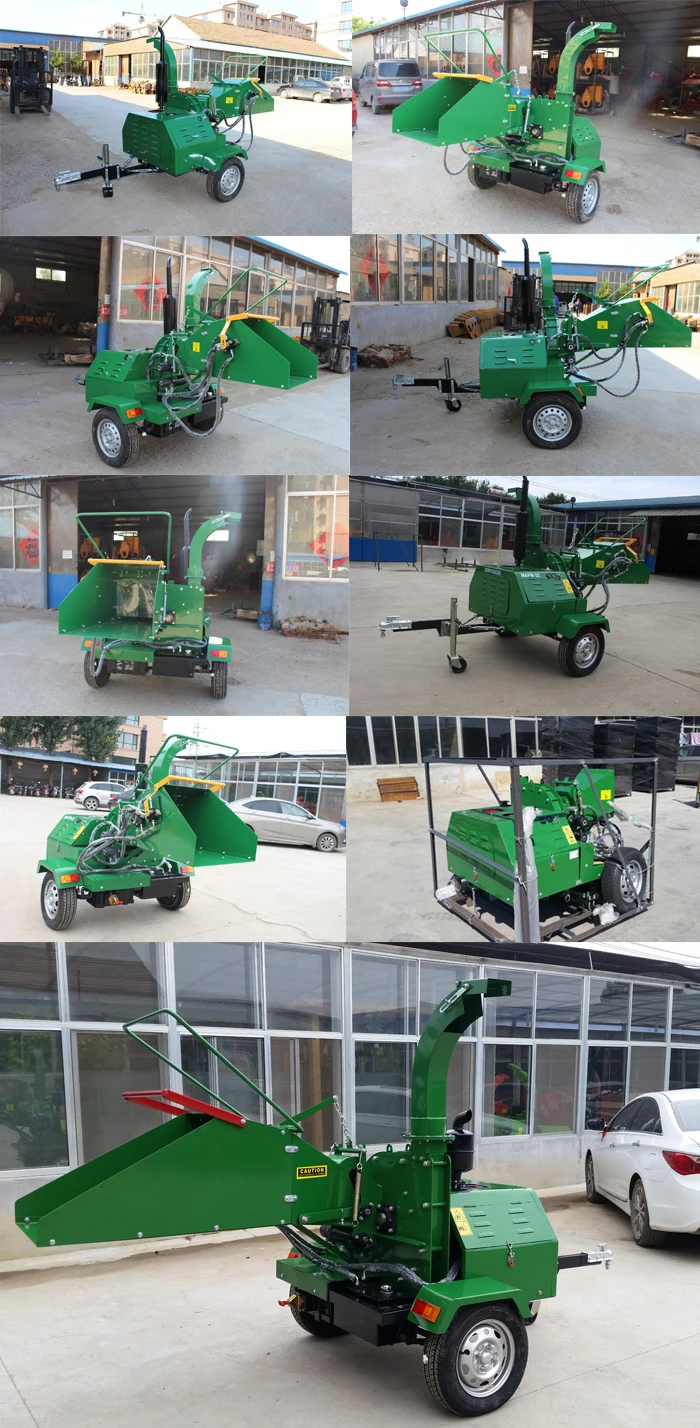

Trailer Mounted Wood chipper, complete automatic hydraulic feeding roller, 3 Bladed, 8" Diameter Capacity, Powered by 40 hp 4 cylinders Electric start diesel engine, Equipped with turning lights, easy discharge hood, 2" Ball Hitch & Safety Chains and leaf spring on the axle. Round flywheel house and square flywheel house,easy to Change knifes. 8 inch wood diameter. Max. diameter wood chips: 300mm
