XY-B Vacuum homogenizing emulsifying mixer cosmetics cream ointment making machine

Product details
Heating methord:electric heating or steam heating;Emulsify methods:Bottom;
Lifting way:Hydraulic;Delivery Detail:35;
Payment Terms:L/C,T/T;Outside material:SS304;
Type:Vacuum Emulsifying Mixer;Control methods:Electric cabinet or PLC screen;
Capacity:100L/200L/300L/500L/1000L/2000/;Supply Ability:30 Set/Sets per Month;
Inner material:SS316L;Port:Guangzhou;
Packaging Detail:Wooden case;Model Number:XY-B;
Application:Cosmetics/food;After-sales Service Provided:Service Machinery Overseas Available;
Product Description

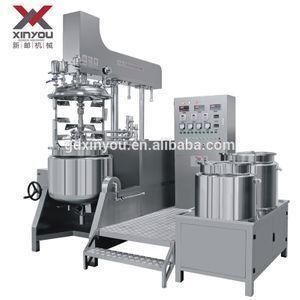

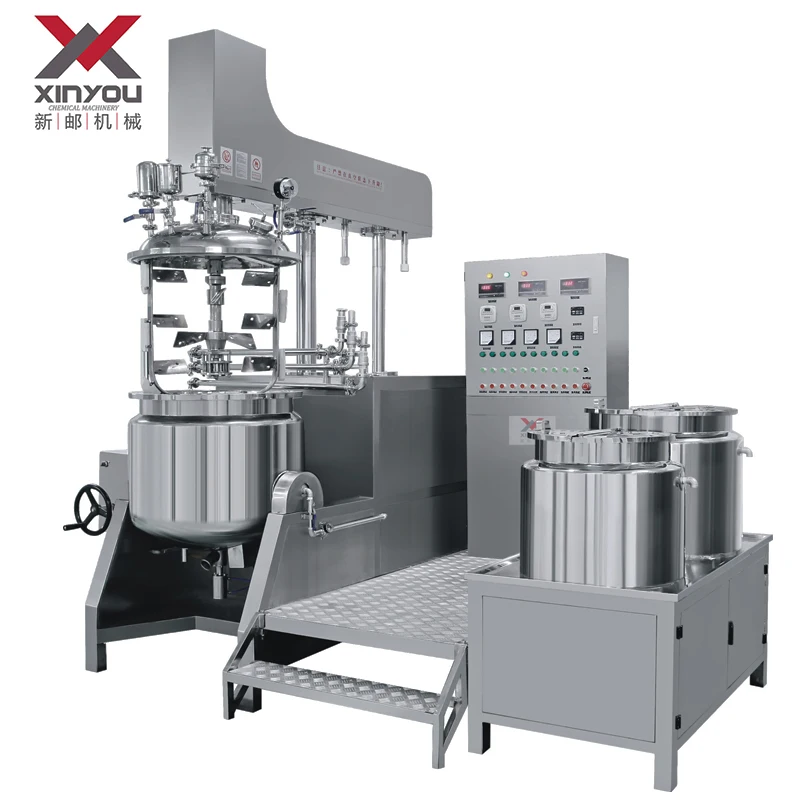

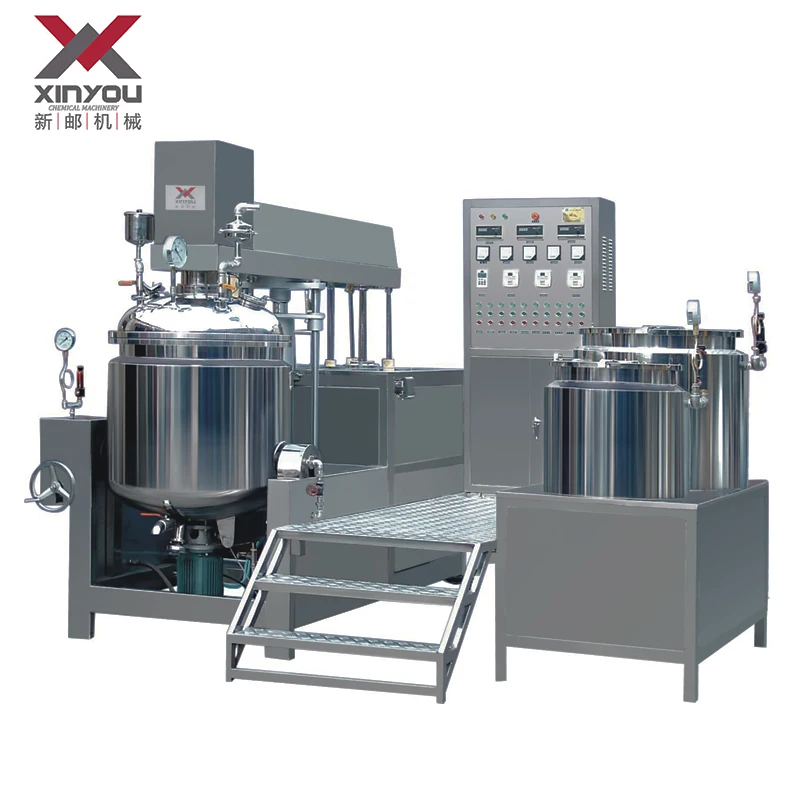

Hydraulic lifting Vacuum emulsifying machine mixer homogenizer for cosmetic

Integrating vacuum defoaming, blending, homogenizing, heating and electric control etc founctions, the equipment is an ideal device for producing high and middle level creams and honeys etc. The equipment is ocmposed of vacuum homogenizing and emulsifying boiler, oil phase boiler, water phase boiler, operation platform, vacuum system and material pressing system etc.


Model No.

Volume Capacity
Emulsify
Agitator
Outside Dimension (mm)
Total Power
KW
RPM
KW
RPM
L x W x H
Electric Heating
Steam Heating
XY-B-150
150L
2.8-4
1440/2800
1.5
0-63
1270*2500*2300
30 KW
7 KW
XY-B-250
250L
6.5-8
1440/2800
2.2
0-63
1480*2650*2700
35KW
9 KW
XY-B-350
350L
6.5-8
1440/2800
3
0-63
1580*2800*2800
38 KW
12 KW
XY-B-500
500L
6.5-8
1440/2800
3
0-63
1780*3050*2950
50 KW
15 KW
XY-B-800
800L
9-11
1440/2800
4
0-63
1850*3250*3150
65KW
20 KW
XY-B-1000
1000L
9-11
1440/2800
5.5
0-63
2100*3400*3650
75 KW
29 KW

Main Features

1).Stepless speed adjustment is adopted during the blending so that the speed of blending line can be randomly adjusted within the range of 0-150 M/Min to meet different technological requirements.

2).The advanced homogenizer adopts technological from US company, featured by unique structure and prominent efficiency.

3).The parts that contact the materials are all made of imported stainless steel 316L, the interior surface of the vessel is subjected to mirror polishing 300 MESH(sanitary level), which is in accordance with sanitary requirements.

4).The whole process including vacuum material suction material suction and vacuum defoaming can be completed under the vacuum status without cellular contamination, and thus prolonging shelf life of products.

Certifications
Company Show

Officeroom

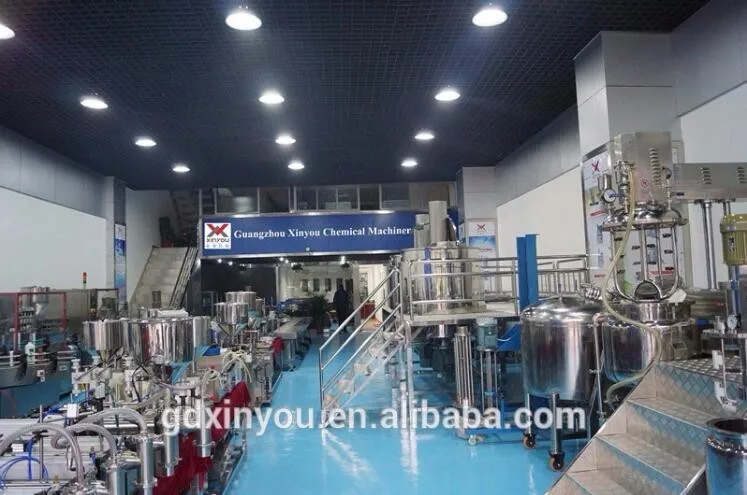

Exhibition


Machine Details

Company Profile



Guangzhou xinyou chemical Machinery Company is a light industrial machinery and equipment plant xinyou for the strong backing ,is a manufacturer that produces cosmetic , pharmaceutical, chemical and dairy product equipment .



We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. The main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks, all of which are of reliable quality and good effect.

FAQ
Q
A
Why choose us ? Are you a Factory?
We have our own factory and skilled workers, rich-experienced R&D and professional service team.
 How long is your delivery time?
Generally it is 15-30 days.
 I want to set a production line, can you provide a whole line packing machinery?
We are professional in packing machinery and we can provide such whole line machinery like Cream/Toothpaste/Soap/Liquid Products/Make Up Products/Powder Filling packing line.
Do you have one year guarantee for the machines?
Sure! We Guarantee one year for the machines, if the machines goes wrong in guarantee and wasn't caused by improperly operation we will offer the new parts for free.
How about the after service?
There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.
Packaging & Delivery

Packing Details : Wooden Packaging Available.
Delivery Details : 30-45 days after received the deposit.
