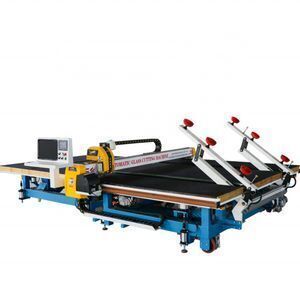

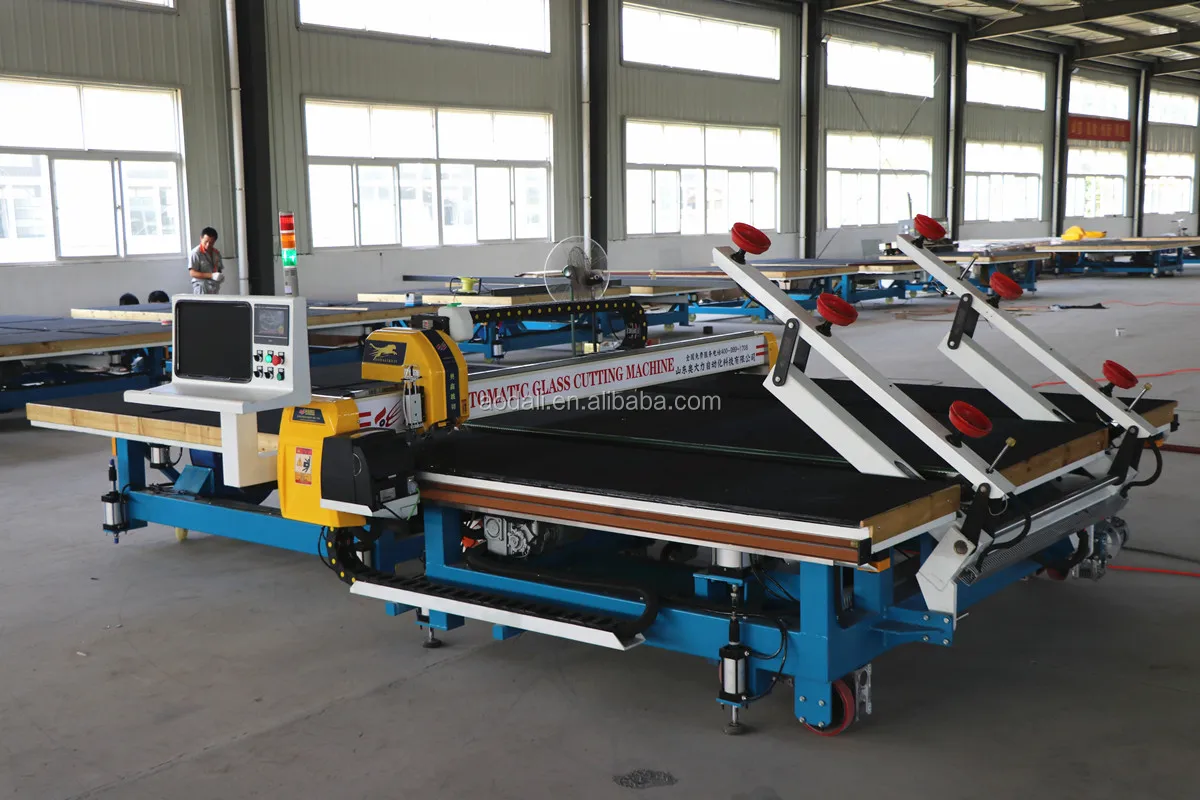

Full automatic multi-function glass uploading cutting breaking machine

Product details
Suction depth:700mm;Supply Ability:10 Set/Sets per Month multi-function glass cutting machine;
Place of Origin:Shandong China;Name:CNC Full automatic functional glass cutting machine;
Packaging Detail:standard wood case or recording to your request multi-function glass cutting machine/ Full automatic glass cutting machine;Weight:2000kg;
After-sales Service Provided:Online support,Video technical support;Loading Glass thickness:2-19mm;
Brand Name:Aodali;Warranty:3 years;
Voltage:380V;Dimension(L*W*H):3000*2500*1400mm;
Certification:CE ISO;Maximum loading glass size:2600*2100mm;
Condition:New;Fast loading speed:20s;
After-sales Service Provided:Overseas third-party support available;Power(W):6kw;
Port:Qingdao port;Glass loading arms:2;
Payment Terms:L/C,T/T,Western Union,paypal;Cutting speed:0~210m/min;
Function:glass uploading cutting breaking;Production Capacity:10 sets/month;

                                                  Multi-function glass cutting machine

                                                     glass uploading cutting breaking machine






Product Description

 Application:

The multi-function glass cutting machine can be applied to the following  areas:

  • Architectural glass, car glass, furniture glass, craft glass, decorative glass, cupboard glass, glass cutting



Three parts:

  • Full auto glass loading machine(single turning arms single position)
  • CNC full auto glass cutting machine
  • Breaking machine



Description:

  • Import or domestic first-line brand electrical pneumatic components:

           *effective protection of cutting accuracy and stability, to meet the various

           shapes of glass cutting.

  • Automatic load glass , smart suck glass:

           *loading:A key to open, the machine automatically raised the arm,

           automatic walking rotation to find the glass position and angle

           *monitor:Equipped with a suction monitoring system. After checking the

           suction,automatically puting the glass on the cutting table.

           *cutting:The machine can automatically position, scan and cut the glass.

  • Glass sucker use the imported high-strength silica gel:

           *the temperature -30 degrees - 200 degrees, it is durable, tear-resistant,

           not easy to aging.

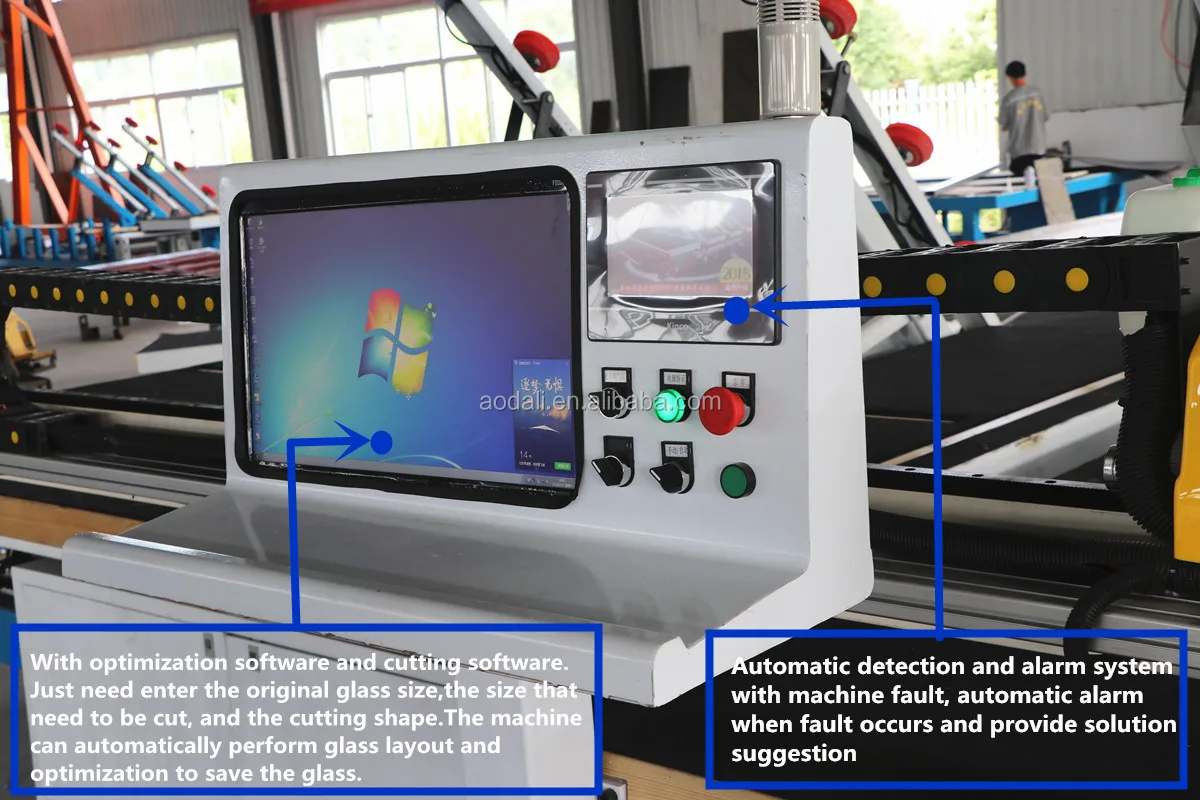

  • Intelligent software:

           *Automatic scanning glass shape, all kinds of glass can be cut.

           *Automatic typesetting

           *Automatic optimization,

           greatly saving the cost of the use of the original glass

  • Intelligent cutting:

           *The equipment and computer linkage closed-loop, high-precision and

           high-speed cutting.

           *Fool-like operation,straight cutting, profiled cutting.

           *With automatic laser positioning, graphics scanning and other latest

           features.

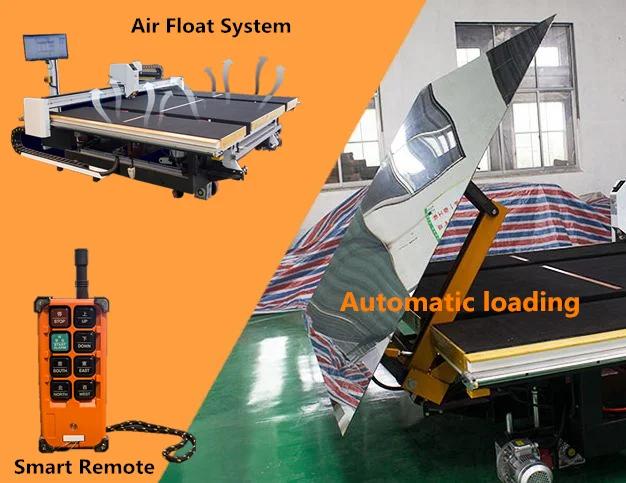

  • Flotation device:

           *more than 100 stomata evenly arranged in the cutting table to ensure the

           stability of the air, push and pull the glass is very simple.

           *With internal air pump and air intake filter device to ensure stable and

           effective cutting, reduce the failure rate

  • Automatic oil filling function and automatic constant pressure adjustment function:

           *effectively guarantee cutting stability and cutting effect.

  • Pneumatic Breaking:

           *It greatly improves work efficiency

  • Intelligent remote control:

           *The use of hand-held wireless remote control device, it can move around

           360 degrees, start the machine and realize automatic intelligent load and

           break the glass

  • Free walking:

           *Four groups of drive wheels, 360 degrees around the rotation, can walk

           freely in the workshop

  • Added automatic machine detection and alarm device so that you can easily see where the machine has failed.This is more convenient for foreign customers to contact manufacturers to solve problems
  • Increased the machine operation stability device to avoid the shaking caused by the machine operation and improve the cutting accuracy of the machine.
  • The cutting speed is greatly improved. It can reach 210 meters per minute .

Features:

  • Saving plant space
  • Simple and safe operation
  • High speed and high precision
  • Saving manpower
  • Free movement
  • Cost-effective

Machine Parts:

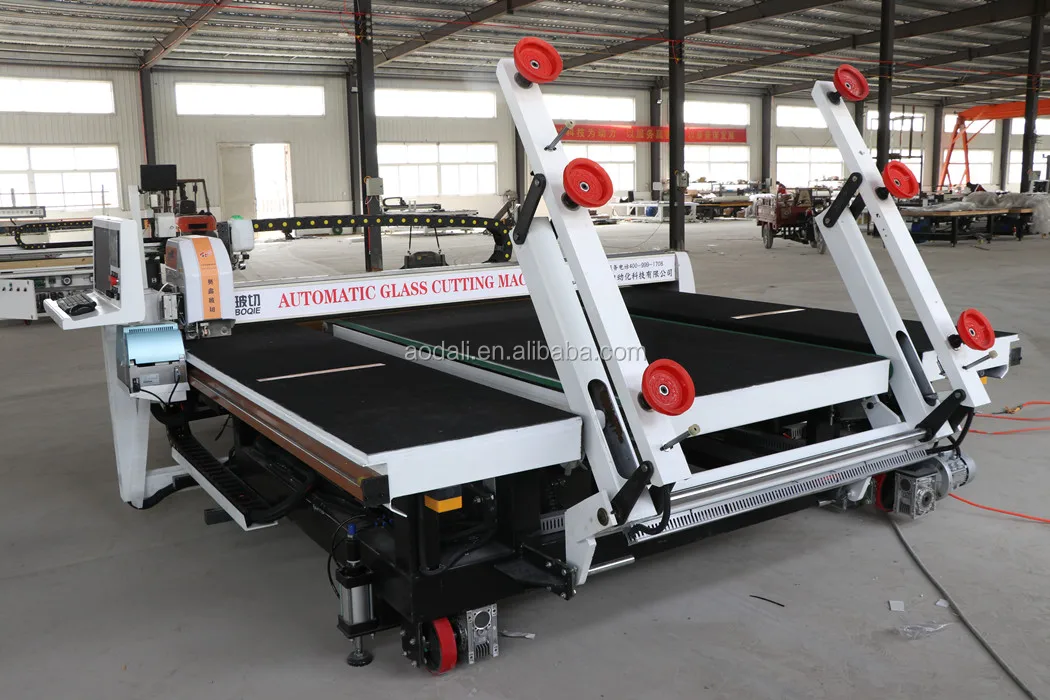

 The Full automatic glass cutting machine detailed display:









Our Services

Pre-sale service

After sale service

*24h consultation service,

professional answer puzzles, and recommend the suitable machine

*1 year warranty period,life-long maintenance

Full automatic glass cutting machine with main parts(excluding the consumables)shall be changed free of charge when problems happened during the warranty period.
*24 hours technical support by email or skype or whatapp .

*English manual and Video CD for machine using and maintenance.

*Free training course at our plant.



Company Information

 Shandong Aodali Automation Technology Co., Ltd

Our company is a specialization and technological corporation which sets the glass deep processing equipment R&D, manufacturing, sales and service integration.



*Establishment Date: February 2009.Focus on deep processing of glass for nine years

*Address:Linyi North Road and Shanhai Second Road Interchange west 50 meters,Donggang District,Rizhao City,Shandong Province

    *Main products:

     Glass Linear type polishing mechine

     Glass edging beveling machine

     Profiled Glass polishing mechine

     Glass straight edge bevel one machine

     Small automatic multi - functional glass polishing machine

     Glass cleaning machine

     Glass drilling machine

     Glass cutting machine

     Equipment and glass deep processing equipment development and production

  Welcome friends from all countries to visit our factory!



Cetifiates:

Customers:

        Part show:--National customers come to our factory to visit the glass                                                 products processing machineries.



FAQ



   Q: How can I get the best glass cutting machine for our business?

   A: Just let us know your material, thickness, and working area needed, we will suggest

       the most suitable machine and professional solution.

   Q: This is my first time using this kind of machine, is it easy to operate?

   A: Of course the machine is easy to operare. We will send you the English

     version user manual and install video which shows how to assamble and use  the machin

     clearly,almost all the customers can operate the cutting machine easily.No need to worry

     about this, after all, we will always be here to help!

   Q: If the full automatic glass cutting machine has problem in my place, how could I do?

   A: Usually there won't be any problem under "normal use" as per the user manual. But in case

       you have any problem,our professional after-service team will provide you any support you

       need any time!

   Q: This model is not suitable for me, do you have more models available?

   A:Sure, in order to meet different customers' different requirments, we reserched many other

       different models.
