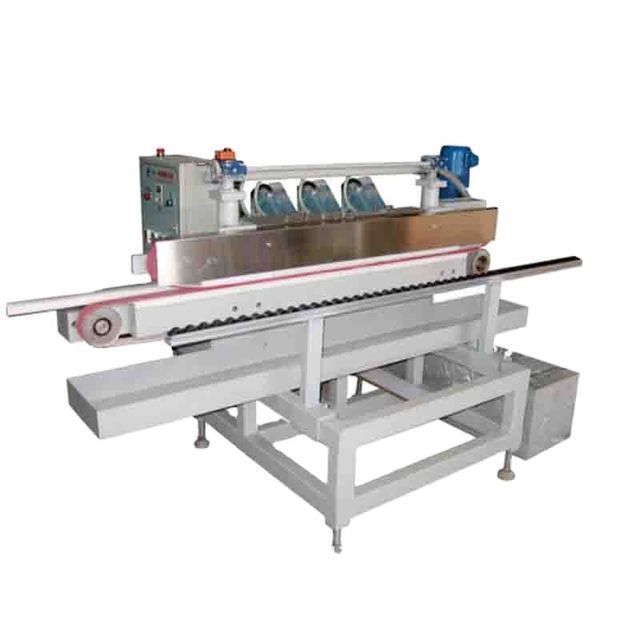

SY-1000 single side horizontal glass edging machine

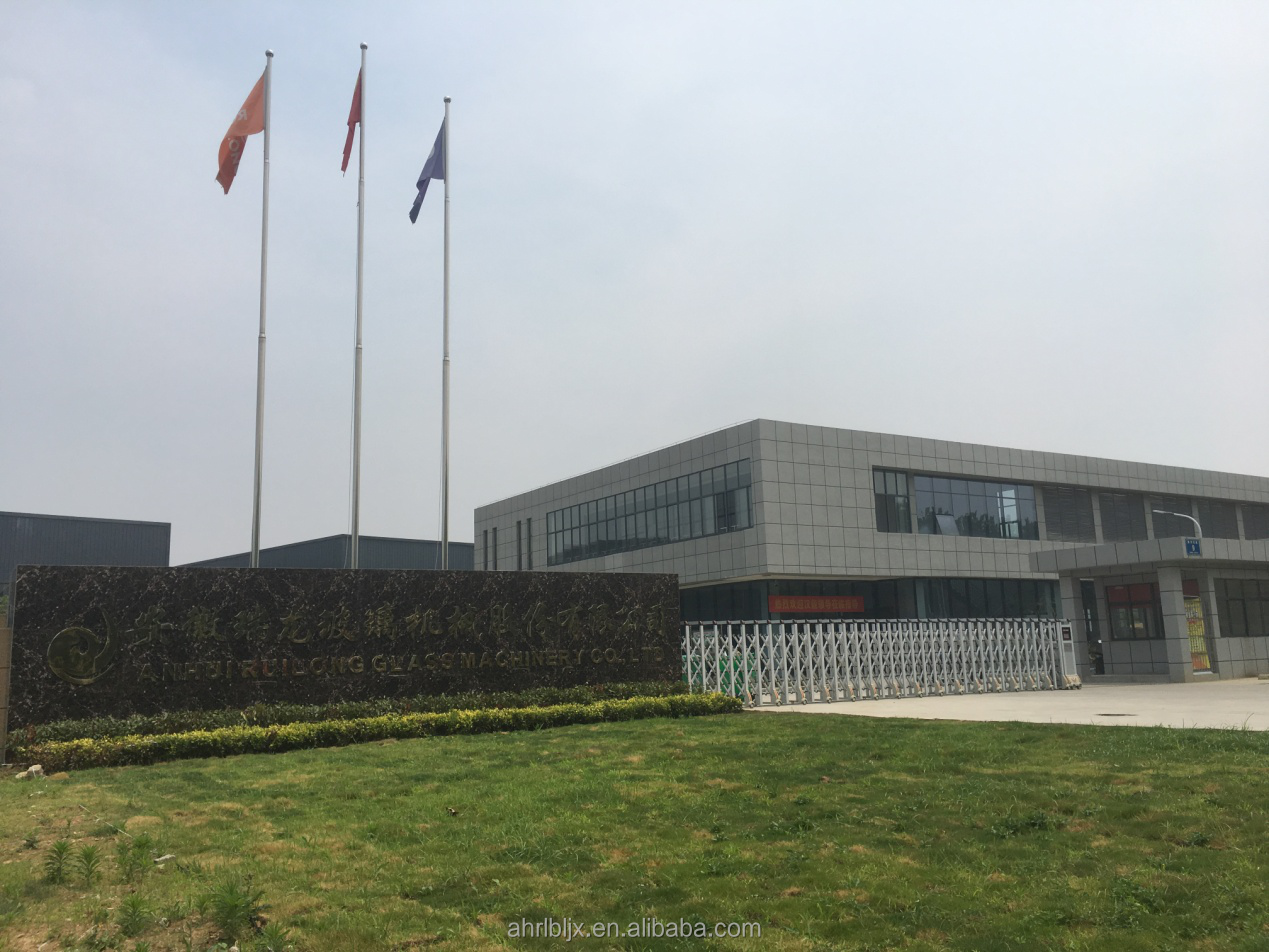

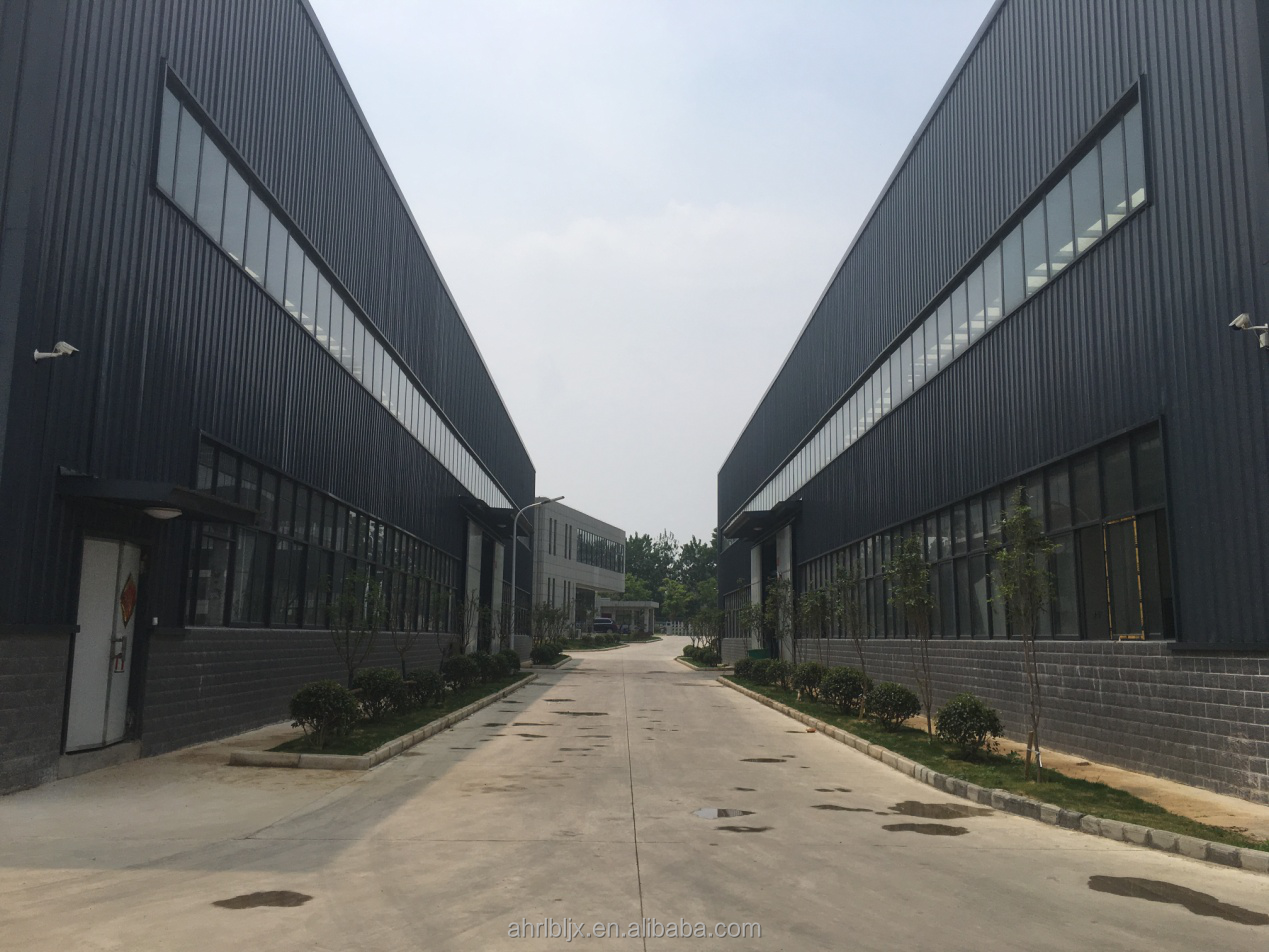

Anhui Ruilong Glass Machinery Co., Ltd. focuses on intelligent glass machinery and related automation machinery.We are also one of the comprehensive new enterprises integrating R&D, production, sales, technical services and after-sales maintenance and other services. The company covers an area of ​​40,000 square meters, with a total investment of more than 200 million yuan (310,000 US dollars), and currently has 80 employees.

So far Ryzen has won the Commendation AwardANanhui Provincial Industrial Design Competition,BengbuCityThe first batch of major technical equipment certification enterprises specialized, special and new certification enterprises, SecondEmbuCityDemonstration of Internet and information integration developmentAnd a variety of honorary certificates.

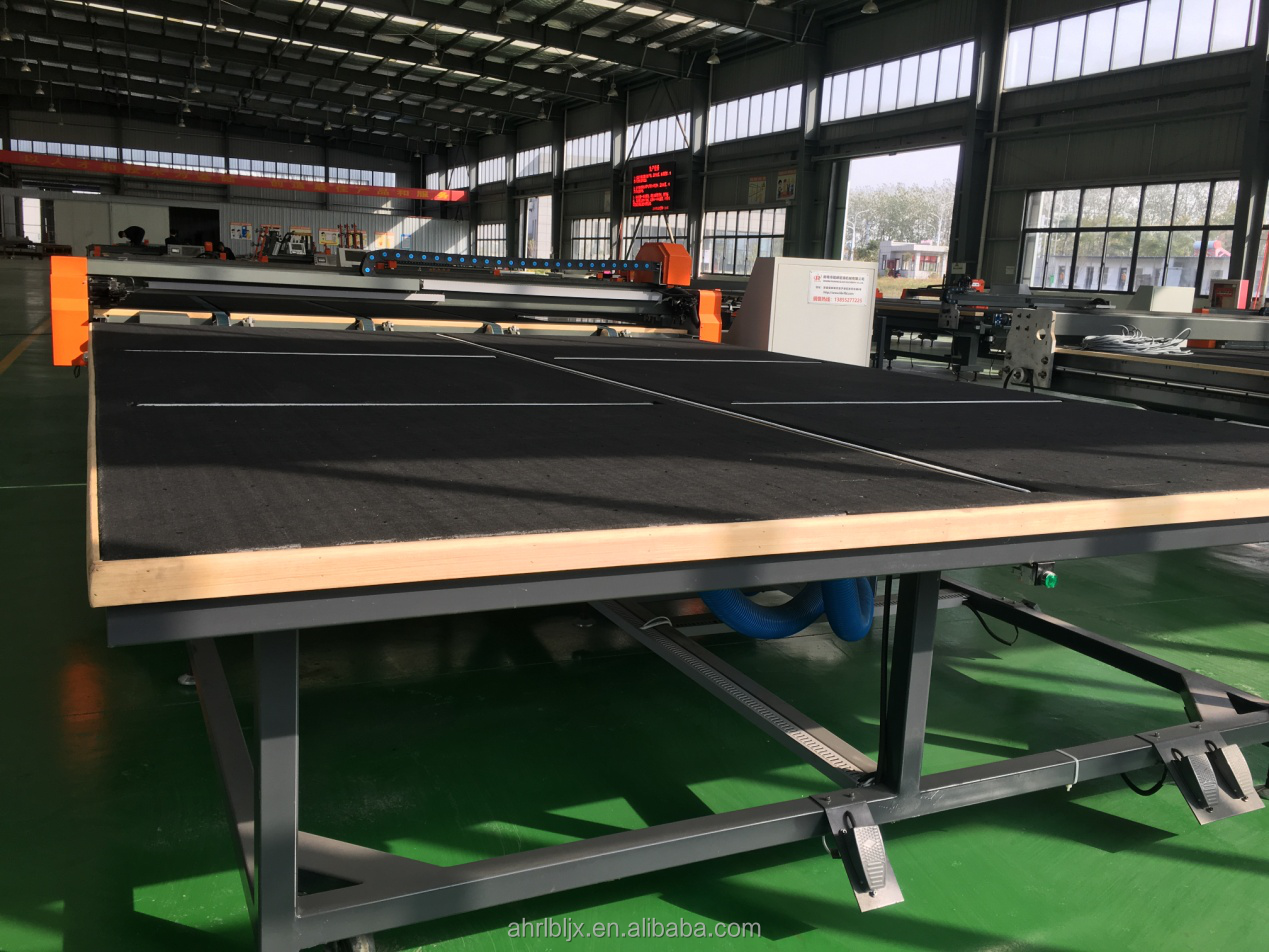

The main products developed, designed, produced and sold by our company are:Load and uploadvarious glass machinery,CNC Glass Cutting Machine,semi-automatic glass cutting machine,double sided or single sidedGlass grinding machine, all kinds of ultra-thin glass cutting machine and grinding machine, general, convex,Ultra-thin glass washing machine, glassrods, bricks, tubes,Cutters for bottles and optical materials, glassspreadWork table, glass drilling machine, top intelligent cold glass processing line and various non-standard automation equipment, etc.

As a key investment attraction enterprise in the Longzihu area, while actively responding to the construction of the "Belt and Road", we are striving to develop business; 4.0 Strong industrial province, strong industrial province, strong manufacturing province and other national and provincial strategies are in the party and government's With the care and strong support of relevant functional departments, Ruilong interprets its own heart and Chinese spirit craftsmen to produce new styles through continuous efforts and progress. In the future, we will make persistent efforts, continue to improve, establish a sound and perfect business process, in order to successfully build an industry-leading brand as soon as possible, and become the setter of industry standards and the inheritor of industry development. The century-old foundation starts with a single step and becomes more and more perfect. Ryzen People shoulder the mission, achieve the final glory, and make dreams come true.

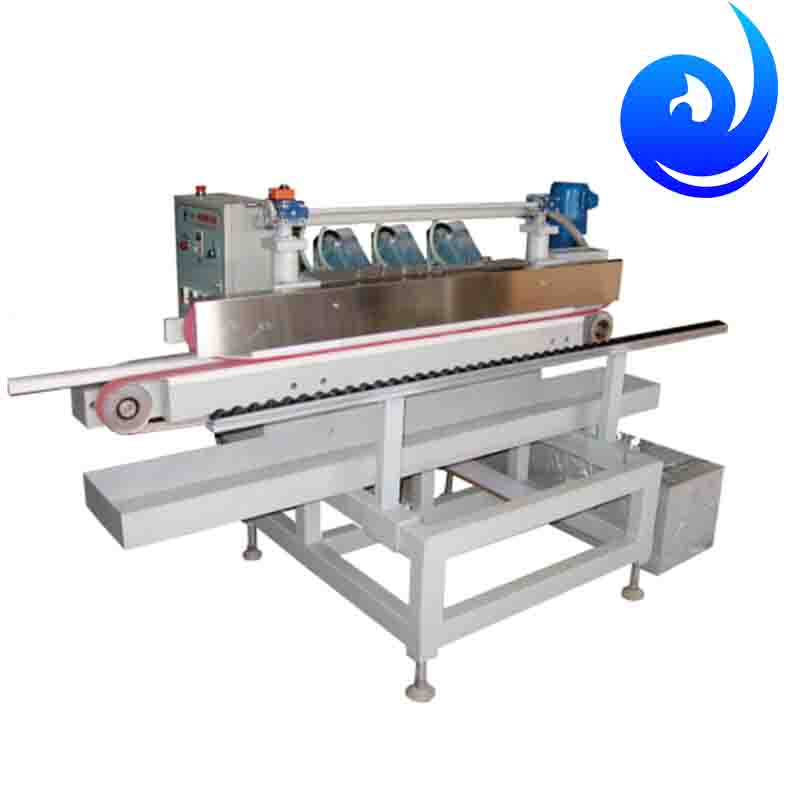

SY-1000-4 Single-sided horizontal glass linear edge grinding and polishing machine Horizontal single-sided linear glass edge grinding machine is a precision and efficient glass processing equipment, which can fill the function of large and small glass edge grinding, and is more widely used in small and medium-sized Glass grinding, low cost, single-phase electric work, easy to operate.
The horizontal single-sided glass edging machine is suitable for conventional glass, especially for cabinet door panels, diamond door panels, bathroom, hollow, mirror, mosaic and other industries.

scope

Machine parameters

Weight: 850kg

Size: 2700*1200*1000mm

Motor: Grinding special motor 2.2KW, 1.1kw

Power: 10KW

Voltage: 380V

Process parameters

1 Processing glass size: 80*80mm---2000*1500mm (longer bracket can grind larger size)

2 chamfer width 0-3mm

3 chamfer 45 degrees

4 Glass thickness: 2-19mm

5 Grinding amount: 0-2mm

Wheel position:

Four heads: bottom rough grinding, fine grinding; upper and lower chamfering.

configuration

1 National standard square tube welded frame. The motor base is cast iron.

2 Motors: New East Asia

3 belts: Shanghai

4 plates: made of spring steel

5 Electrical appliances: Great Wall or Chint products

6 rounds: Nanhua quality BD rounds

Voltage: 380v, 50HZ

7 8kw Power: 8kw

8. Feed speed: 0.5m/min～5m/min stepless

Nine, process range:

a) Max. Grinding amount: 3mm

b) The maximum grinding width of the corner: 2.5mm

c) Angle: 45°

d) Glass size:. Maximum: 2000×1500 Minimum: 50×50

e) Glass thickness: 2~19mm

f) Accuracy: parallelism plus or minus 15s/m; diagonal plus or minus 50s/m
