Ruilong Automatical CNC Glass Edge Grinding Machine with drilling milling grinding polishing function

Ruilong Automatical CNC Glass Edge Grinding Machine with drilling milling grinding polishing function

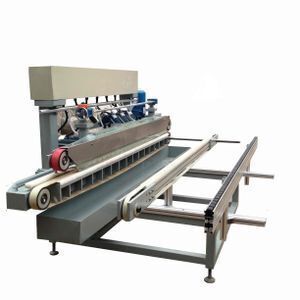

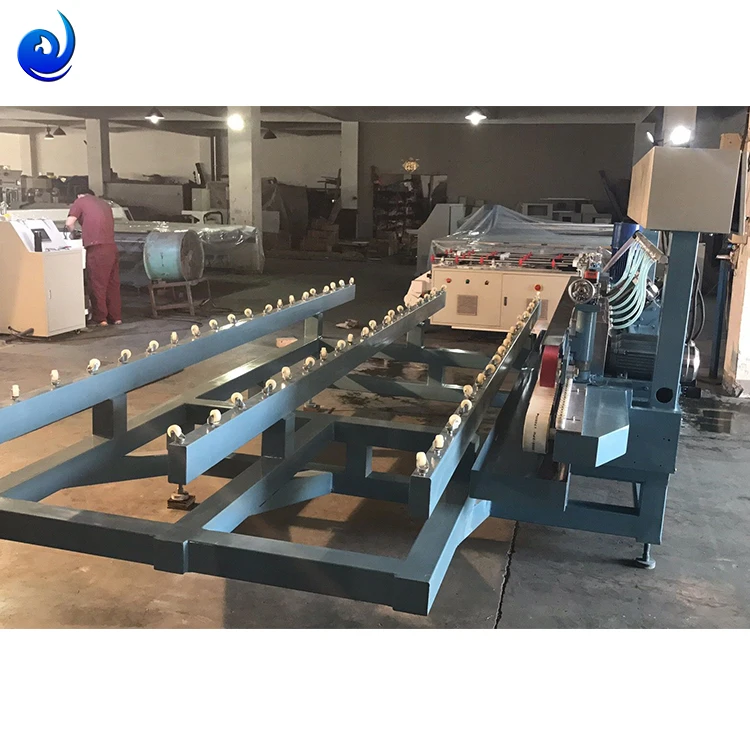

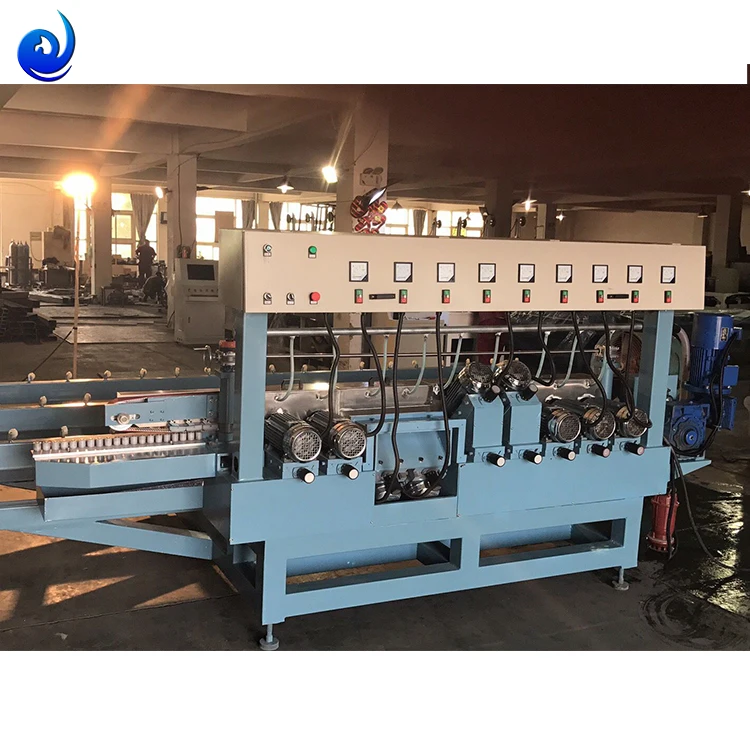

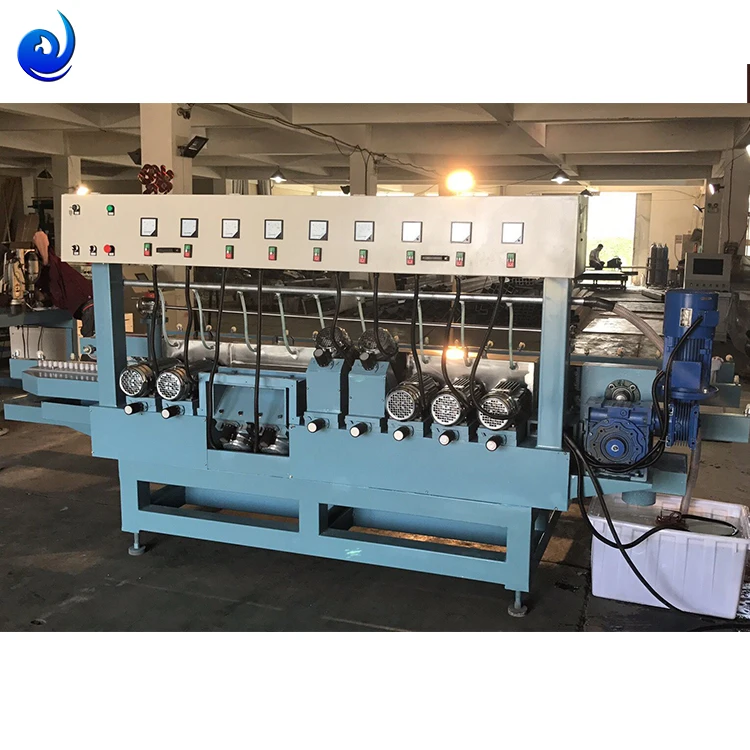

Ruilong Automatical CNC Glass Edge Grinding Machine with drilling milling grinding polishing function is a precise and efficient glass processing equipment, can fill the big, small glass grinding function, more widely applicable to small and medium-sized glass grinding, and low cost, the single-phase electric work, the operation is simple.
Horizontal unilateral glass edge grinding machine for conventional glass, especially ambry door plank, king kong door plank, sanitary ware, hollow, spell mirror, Mosaic, and other industries use.

Parameter

Machine parameters

Weight: 850kg

Dimension: 2900*1700*1550mm

Motor: special grinding motor 2.2KW, 1.1kw

Power : 10.2KW

Voltage: 380V

Process parameter

1 Processing glass size: 50*50mm--15000*1500mm (Extended bracket can grind a larger size)

2 Chamfer width 0-3mm

3 Chamfer angle 45 degrees

4 Glass thickness : 2-15mm

5 Grinding amount: 0-2mm

Configuration

1 GB square tube welded frame. Motor base is cast iron.

2 Motor: New East Asia

3 Belt: Shanghai

4 Plate: spring steel production

5 Electrical: Greatwall or Chint products

6 Wheel: Nanhua Quality BD round

    Voltage: 380v, 50HZ

7 8kw Power : 10.2kw

8.Feed speed: 0.5m/min ~ 5m/min stepless

9. Process range:

 a)Max. gridning amount: 3mm

b)angular maximum grinding width: 2.5mm

c)angular angle: 45°

d)glass dimensions:. max: 2000 × 1500 min: 50 × 50

e)glass thickness: 2~19mm

f)precision: parallelism plus or minus 15s/m; diagonal plus or minus 50s/m

At first, Anhui Ruilong glass machinery Co., Ltd. named Anhui Sadavax glass Machinery Co., Ltd. the products are mainly sold to domestic glass processing factories and foreign trade companies. Increased with the development of glass processing industry, Ruilong add production lines and expanded workshops began to do foreign business directly, in this way customer's can save purchasing cost. Ruilong's products is going high-end route, have been uphold the quality and technology first.

Q: Do you supply overseas engineers service for glass edge grinding machine ?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for glass edge grinding machine ?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for glass edge grinding machine  ?
A: Yes, we will provide some additional loss of accessories.
