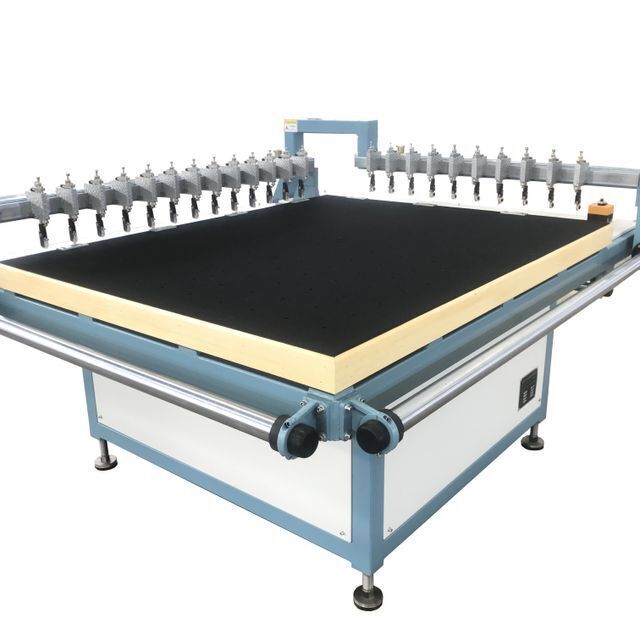

Manual glass cutting machine for mosaic glass cutter

Product details
Packaging Detail:Frames Manual glass cutting machine for masic glass cutter;Local Service Location:None;
Min. cutting machine:20 mm*20 mm;Machine Type:Glass Cutting Machine;
Port:Shanghai;Dimension(L*W*H):1300*1600*1300mm;
Certification:ce;After-sales Service Provided:Overseas service center available;
Weight:500 kg;Payment Terms:L/C,Western Union,T/T,MoneyGram,paypal;
Name:manual glass cutting machine for mosaic glass;Key Selling Points:Easy to Operate;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Showroom Location:None;
Power:2kw;Accuracy:±0.10mm/m;
Core Components:Pump;Condition:New;
Place of Origin:Anhui, China;Production Capacity:1-2pcs/min;
Max cutting size:Customized;Diagonal precision:≤±0.25mm/m;
Warranty:1 Year;Brand Name:Ruilong;
Glass Thickness:2-25mm;Video outgoing-inspection:Provided;
Marketing Type:Ordinary Product;Supply Ability:1000 Pieces per Year manual glass cutting table;
Warranty of core components:1 Year;Machinery Test Report:Provided;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Other;





Details
Name Manual glass cutting machine for masic glass cutter
Model  SY-1215
Type  Manual
Max. glass size  1200*1500×1300mm

,





Model : SY-1215y manual glass cutting machine

Introduction

Our SY series manual high precision multi-cutting is widely used in online/offline cutting of flat glass, ultra-thin glass, LCD glass, ceramic glass, amorphous glass. It is easy operation, work steadily, high cutting speed and precision, long cutter life and free for repairing.

Feature

Accuracy: ≤±10mm/m

Diagonal precision: ≤±0.2mm/m

Max. size: 1200*1500×1330mm (special specification is customized.)

Min. size: 20*20mm(smaller size can be customized.)

Thickness: 2-25mm

Speed: 1-2 large/min

Cutter wheel life: 3--5 ten thousand meters(regular straight cut )

Operator: 1-2



Introduction

(1) adjusting the cutter box

Putting small glass in the bottom of cutting wheel, loose the screw on the cutter box, turning the screw, making the bottom of cutter box and glass surface into 60 ° -75 ° angle, and then tightening the screw, turning. Another rotating the screw of cutter box cutter to adjust cutter pressure.

(2)Cutting size adjustment

First, adjust the first cutter box, then loosing the bolts, making pointer right the locked steel ruler tick; and adjust second cutter box with the same way, trial cutting, after passing, adjust the third one like before, and so on.

Transporting & Installation Notes

During the process of carrying, taking and put it lightly, not colliding, rails and beams are forbidden as the supporting parts. Using level rule to check the tabletop when installation, and adjust the four feets to make the table top horizontal.

Maintenance & repairing

Filling clean oil or agent in the oil tank on the beam before cutting; adjusting corresponding angle on the oil tank, making the linoleum full of coal oil and co- agent.

protection and maintenance of the moving shaft below vertical and horizontal beam  before and after using with some engine oil.

Pushing vertical beam back to original place, then pushing horizontal beam to avoid colliding when working.

After cutting glass, clean desktop, wipe the device.

Shall not be stacked heavy things or drop watering, oil liquids on the desk surface, to prevent deformation.

Configuration:

1 frame: GB square tube

2 table: Import Combet waterproof board plus wool felt, not deformed .

3 axis: 50 bearing steel

4 fan: Shanghai



Company Information

  Anhui Ruilong glass machinery co.,ltd focus on intelligent glass machinery and relevant automatic machinery . we are also one of the comprehensive new enterprises that provide the research and development,production,sale , technology service and  After-sale maintenance and other services .The company covers an area of 40000 square metres  , total investment more than 200 million yuan(31 million dollar), existing staff 80 people.





  So far Ruilong has been won the recognition award in Anhui province industrial design competition ,Bengbu city first sets of major technical equipment certification enterprise specialization, arts and new certification enterprises, Bengbu city Internet and information fusion development demonstration and many kinds of honorary certificate .





   Our company research and development design ,production and sales of main products are: loading and uploading for all kinds of glass machine, CNC glass cutting machine ,Semi-automatic glass cutting machine, double or single sides glass grinding machine, various types of ultra-thin glass cutting machine and  grinding machine, normal ,convex ,ultra-thin glass cleaning machine, glass rod,brick,tube, bottle and optical material cutting machine, glass transmission table, glass drilling machine, Top level intelligent cold glass processing line and all kinds of non-standard automation equipment and  etc .





   As a key investment enterprise in the Longzihu area, we trying to business development as well as positive response One Belt And One Road ; 4.0 industrial ,power industrial ,manufacturing strong province of  various national and provincial strategyUnder the keen concern of the party and government, under the support of relevant functional departments, the Ruilong is through continuous efforts and enterprising, explaining the belongs to own heart spirit and Chinese craftsmen to make new style. In the future we will make persistent efforts continued ascension, establish a sound and efforts to improve the business process, in order to succeed at an early date to build industry leading brand, become the industry standard makers and guidance in the development of industry Inheritance, The century-old foundation begins with the first step, and the day progresses into perfection, Ruilong people are on a mission to get the final glory and let the dream come true .











Patent



Our Services

What are we supply?



Why choose us?

FAQ

Q: Do you supply overseas engineers service for Manual glass cutting machine for masic glass cutter ?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for Manual glass cutting machine for masic glass cutter ?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for Manual glass cutting machine for masic glass cutter ?
A: Yes, we will provide some additional loss of accessories.
