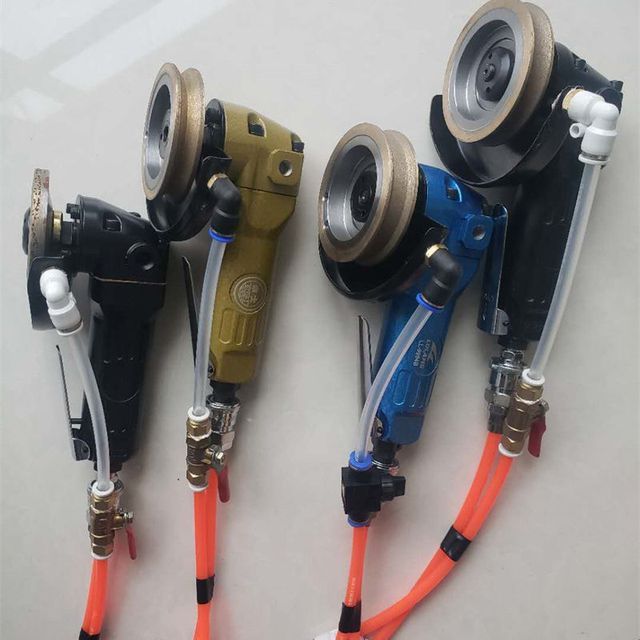

Portable Glass Edger

Supplier: Jinan Zhaoyang Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Brady Ni
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies	Core components:	motor, water pump
Certification:	ce	CNC or not:	normal
speed:	0-4m/min	Dimensions (LWH):	700011002350mm
weight:	3100 kg	Video shipment inspection:	if
Package preview:		payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
strength:	18 kW	Main selling points:	easy to operate
Minimum working size:	40mmx40mm	After-sales service provided:	On-site service by overseas engineers, online support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support
Warranty:	1 year	brand:	Zhaoyang
glass thickness:	1-40mm	Marketing Type:	New Products 2020
port:	Qingdao/Shanghai/Shenzhen	Health status:	new, new
Type of machine:	Glass edger	Production capacity:	300-500 pieces
Supply capacity:	200 sets per month	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Showroom location:	France, Russia, Japan	Mechanical test report:	if
product name:	Glass linear edging machine	application:	Construction Furniture Home Appliances
Core component warranty:	1 year	Local service location:	France, Malaysia, Romania
Packaging Details:	wooden bag	Glass processing size (maximum):	3000*3000mm
Processing glass thickness:	1-30mm	type:	Glass edger
Origin:	Shandong China	Voltage:	380v, 50HZ

Glass edger

Brady-ZY-4/8/9/10 axis glass linear edging machine/beveling machine/double line edging machine

ZY-glass beveling machine

ZY-Glass edging machine

ZY-glass polishing machine

ZY-glass grinder

1. ZYE4325 glass linear edging machine (4 axis)

ZYE4325 4-axis glass linear edging machine is used for edging flat glass of different sizes and thicknesses. Complete rough grinding, fine grinding, and angle making at one time. The feeding speed can be adjusted steplessly, and the operating speed can be changed as required.

Specification

Model	ZYE4325
Dimensions (length x width x height)	5000×1000×2500mm
minute glass size	80×80mm
Glass thickness range	3-25mm
Feeding speed	0.5-5m/min
power supply	380V/50Hz
Installed power	10Kw
weight	2000KG

2. ZYE4325-45° glass linear edging machine (4 axes)

ZYE4325-45° Glass Linear Edge Grinding Machine (9 Axis)It is suitable for edging and corner grinding of flat glass of different sizes and thicknesses, rough grinding, fine grinding and polishing can be completed at one time. The polished grease surface is close to the finish of the glass substrate. When adjusting different processing thicknesses (refer to the front axle beam data display instrument), the front chamfering grinding head can move synchronously with the front axle beam, which has the advantages of advanced structure, high machining accuracy, convenient operation, and continuous processing. The thickness is the same, it is the necessary equipment for deep processing of glass.

Specification

Model	ZYE4325-45°A
Dimensions (length x width x height)	6000×1000×2500mm
minute glass size	50×50mm
Glass thickness range	3-25mm
Feeding speed	0.7-5m/min
power supply	380V/50Hz
Installed power	10.5Kw
weight	1900KG

Model	ZYE4325-45°B
Dimensions (length x width x height)	6000×1000×2500mm
minute glass size	25×25mm
Glass thickness range	3-25mm
Feeding speed	0.7-5m/min
power supply	380V/50Hz
Installed power	10.5Kw
weight	1900KG

3. ZYE8325 glass linear edging machine (8 axes)

ZYE8325 Glass Linear Edge Grinding Machine is specially designed for grinding flat glass with different sizes and thicknesses with straight edges or 45 angles. Round grinding, polishing, and cornering can be completed at one time. Its speed can be widely adjusted with its stepless regulator. Very smooth speed change In the grinding operation, the feed speed and running speed can be adjusted arbitrarily. Font guides can be adjusted for different thicknesses of processed glass. With clamping, lubricating, voltage stabilizing and other automation systems, advanced structure, high precision, convenient operation and high work efficiency, it is one of the indispensable instruments for glass processing. Grinding wheels 8 pcs, designed for straight edge, coarse grinding, semi-rough grinding, fine grinding, edging, semi-finish grinding, double-sided angle polishing and fine polishing.

Specification:

Dimensions (L×W×H) 7000×1100×2350mm

Platform height 750mm

Weight 3000Kg

Power 18Kw

Feeding processing size 0.5m/min-4m/min

Glass processing size (max)3000mm×3000mm (miu)100mm×l00mm

Angle maximum width 2.5mm

Flat edge maximum cutting 3mm Angle 45°

Glass thickness 3-25mm

Voltage 380V.50Hz

4. ZYE8325-45° glass linear edge grinding machine (8 axes)

ZYE8325-45° Glass Linear Edge Grinding Machine (9 Axis)It is suitable for edging and corner grinding of flat glass of different sizes and thicknesses, rough grinding, fine grinding and polishing can be completed at one time. The polished grease surface is close to the finish of the glass substrate. When adjusting different processing thicknesses (refer to the front axle beam data display instrument), the front chamfering grinding head can move synchronously with the front axle beam, which has the advantages of advanced structure, high machining accuracy, convenient operation, and continuous processing. The thickness is the same, it is the necessary equipment for deep processing of glass.

Specification:

Model	ZYE8325-45°A
Dimensions (length x width x height)	6800×1000×2500mm
minute glass size	50×50mm
Glass thickness range	3-25mm
Feeding speed	0.7-5m/min
power supply	380V/50Hz
Installed power	17.25Kw
weight	2900KG

Model	ZYE8325-45°B
Dimensions (length x width x height)	6800×1000×2500mm
minute glass size	25×25mm
Glass thickness range	3-25mm
Feeding speed	0.7-5m/min
power supply	380V/50Hz
Installed power	17.25Kw
weight	3100KG

5. ZYE9325 glass linear edge grinding machine (9 axes)

ZYE9325 Glass Linear Edge Grinding Machine is specially designed for straight edge or 45 angle grinding and polishing of flat glass of different sizes and thicknesses. Round grinding, polishing, and cornering can be completed at one time. Its speed can be widely adjusted with its stepless regulator. Very smooth speed change In the grinding operation, the feed speed and running speed can be adjusted arbitrarily. Font guides can be adjusted for different thicknesses of processed glass. With clamping, lubricating, voltage stabilizing and other automation systems, advanced structure, high precision, convenient operation and high work efficiency, it is one of the indispensable instruments for glass processing. Grinding wheel 9, designed for straight edge, rough, semi-rough, finish, edging, semi-finish, double-sided angle polishing and finish polishing.

Specification:
Dimensions (length x width x height): 7000 x 1100 x 2350mm
Platform height: 750mm
Weight: 3000Kg
Voltage: 380V/50Hz
Power: 18Kw

Feed processing size: 0.5m/min-4m/min
Glass processing size (max): 3000mm×3000mm (miu) 100mm×l00mm
Maximum width of corners: 2.5mm
Flat edge maximum cutting: 3mm
Angle: 45°
Glass thickness: 3-25mm

6. ZYE9325-45° glass linear edging machine (9 axes)
