China Supplier Rectilinear Edging Machine for Glass
-
Supplier: Jinan Zhaoyang Machine Co., Ltd. -
Region: Shandong, China -
Contact: Mr Brady Ni -
Price: $8500.00 /set -
Min. Order: 1 set
| Port: | Qngdao; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Packaging Detail: | China Supplier Rectilinear Edging Machine for Glass Paked in wooden case; | Video outgoing-inspection: | Provided; |
| Weight: | 3200kg; | Applicable Industries: | Building Material Shops; |
| Place of Origin: | Shandong China; | Shippment: | by sea; |
| Warranty: | 1year; | Warranty of core components: | 1 Year; |
| Production Capacity: | 5m/min; | Package Preview: | ; |
| Name: | Rectilinear Edging Machine for Glass; | Supply Ability: | 100 Set/Sets per Month China Supplier Rectilinear Edging Machine for Glass; |
| Payment Terms: | L/C,T/T; | Local Service Location: | Italy,France,Germany; |
| Power: | 18.5kw,18.5kw; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Showroom Location: | Italy,France,Germany; | Machinery Test Report: | Provided; |
| Certification: | CE, ISO; | Voltage: | 380V; |
| Occupation: | 6900*1100mm; | Key Selling Points: | Easy to Operate; |
| dimension of the main machine: | 3900*900*1500mm; | Glass thickness: | 3-28mm; |
| Weight: | 3200KGS; | Processing speed: | 1-5m/min; |
| Brand Name: | Zhaoyang; | Core Components: | PLC; |
| Marketing Type: | New Product 2020; | Min size of glass: | 120mm*120mm; |
| Condition: | New; | Dimension(L*W*H): | 3900*900*1500mm; |

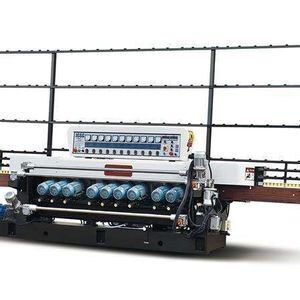

China Supplier Rectilinear Edging Machine for Glass
Rectilinear Edging Machine for Glass is mainly suitable for furniture glass and architectural glass and process glass processing, is one of the important processing equipment in deep processing of glass. Mainly used for ordinary flat glass bottom edge grinding and chamfering, polishing. Generally, there are manual, digital control and the PLC computer control for the machine.
1.1 Complete the coarse grinding, accurate grinding, and polishing of straight-line hemline and corner angle, at a time with different size and thickness of flat glass.
1.2 When adjusting the thickness of the different processing, the pre-chamfering grinding head can be moved synchronously as fore beam.
1.3 Simple to operate and maintain.
1.4 An ideal for the complete processing of glass.
1.5 With 9 spindles, PLC controller if needed.
Technical Parameters:
| 1. Processing glass thickness | 3~28mm |
| 2. Min. size of glass | 120mmX120mm |
| 3. Processing speed | 1.0~5.0 m/min |
| 4. Installed power | 18.5KW |
| 5. Occupation | 6900×1100mm |
| 6. The dimension of the main machine | 3900×900×1500mm |
| 7.Weight | 3200KGS |
Features:
1. Rectilinear Edging Machine for Glass is suitable for processing straight-line edge & 45° arrises of glass sheet with various size and thickness.
2. The main base is made of cast iron.
3.Glass thicknesses is adjusted by a servomotor and showed on PLC
4. A special design of the in-feed section for controlling the desired amount of glass removal without adjusting
each spindle individually.
5. Independent felt wheel and the cerium water recirculation system make the flat edge more shining.
6.Input and output conveyor adopt timing belt which can improve the transmission precision.
7. Rectilinear Edging Machine for Glass is the first choice for processing the glass of wall and furniture .
Payment and Shipment:
Payment:
Delivery Time: During 10-40 days after we receive your first payment.
Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.
Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Shipment: Usually by sea, Rectilinear Edging Machine for Glass is dismountable, so it can be packed in a small container.
