Place of Origin: | Shandong China; | Key Selling Points: | High-accuracy; |
Voltage: | 380v/50hz/3p,380v 50hz 3p; | Package Preview: | ; |
Certificte: | CE/ISO; | Brand Name: | Zhaoyang; |
Local Service Location: | Italy,France; | Thickness: | 3-12mm; |
Warranty: | 1 year; | Weight: | 1800kg,1800kg; |
Speed: | 0-3m/min; | Marketing Type: | New Product 2020; |
Warranty of core components: | 2 years; | Port: | Qingdao; |
Machinery Test Report: | Provided; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Applicable Industries: | Manufacturing Plant,Construction works ; | Name: | small bevelling glass edging machine; |
Packaging Detail: | wooden case small bevelling glass edging machine; | Payment Terms: | L/C,T/T; |
Payment: | T/T; | Power: | 13kw; |
Production Capacity: | 0-3m/min; | Showroom Location: | Italy,France; |
Video outgoing-inspection: | Provided; | Condition: | New; |
Dimension(L*W*H): | 3000*1600*1600mm; | Certification: | CE/ISO; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Qty of wheels: | 7sets; |
Supply Ability: | 60 Set/Sets per Month small bevelling glass edging machine; | Mini glass width: | 25mm; |
Core Components: | PLC; |

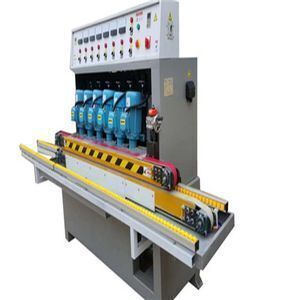

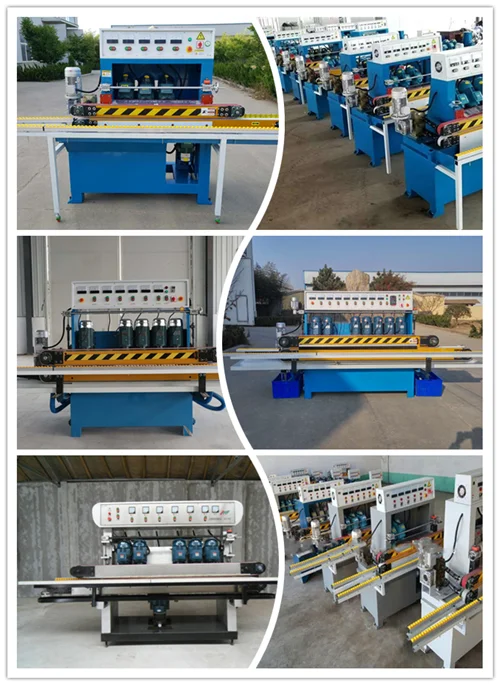

Small Bevelling Glass Edging Machine
Description and function:
1. It is a new glass processing equipment, which changes the traditional glass vertical chain of transmission.
It uses level transmission timing belts to improve the grinding accuracy.
2. It includes five systems: the control system, the grinding system, the nip&transmission system, the cooling system and the carrying on system.
3. The whole structure is tight, the exterior is harmony and unity.
4. The control system: Using double- sided meter dials, in order to monitor the operation of machine, voltage and current instructions on both sides to ensure the unusual situation discovered and resolved promptly.
5. The grinding system: using high-speed and three-phase exchange electrical motor whose design life is 20 years to ensure the machine consistent stability in the longterm use. Grinding wheels use international pop techniques, ensuring the accuracy and polishing brightness achieving to the mirror effect.
6. The nip&transmission system: choosing single whirlpool, double whirlpool, and shift exchange frequency conversion governor in the course of operation to make speed in a smooth transmission from 0 to 4m to meet the requirement of different processes. The nip parts use imported timing belts with red plastic and material PU on its surface, which reduces the glass broken rate in the process of transmission. At the same time, it can also keep nip power between glass and timing belts enough so that glass does not slip with timing belt to make the product achieve the precision requirement.
7. The cooling system: adopting circulating water, double-pump and double water boxes to cool, and add cerium oxide polishing power in one box, to guarantee the circulating cooling water enough, and also guarantee the glass polish.
8. The carrying on system: using timing belt carry-on rack which moves together with the nip cane location
to reduce the large glass’surface scratch rate.
9. The machine can be used in grinding flat glass’linear beveling edge with the angle scope from 5° to 30°. Rough grinding, fine grinding and polishing will be finished at one time and it can reach the mirror effect.
10. Its smallest processing size is 25mm×25mm, filling the gaps of the international market. It is the best equipment for the glass deep processing enterprises.
How to grind different size glass?

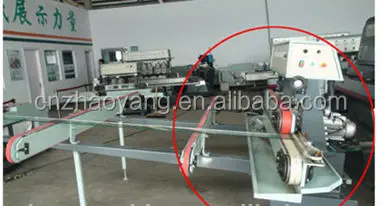

1.Process Mosaic/Art/Crystal Glass from 25*25mm to 1000*1000mm.Glass is transfered by imported timing belt,higher precision than vertical machine, no need any other accessory equipment.

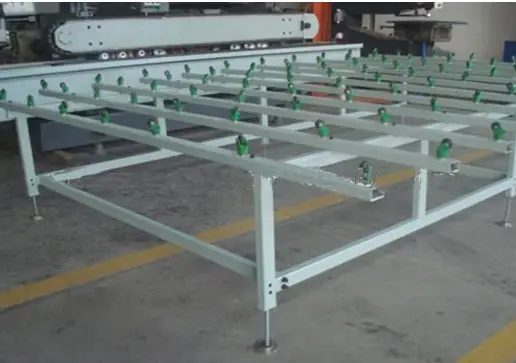

2.Process Furnature Glass from 1000*1000mm to 2500*2500mm, need extend the frame.
3.Process Architectural Glass from 2500*2500 to 6000*6000mm;Glass is horizontaly laid on frame,
Safer to operate than vertical Machine.
Glass sample fyi
Payment: Telex Transfer (T/T), 30% be paid after confirming the order and the rest 70% is effected while delivering the goods.

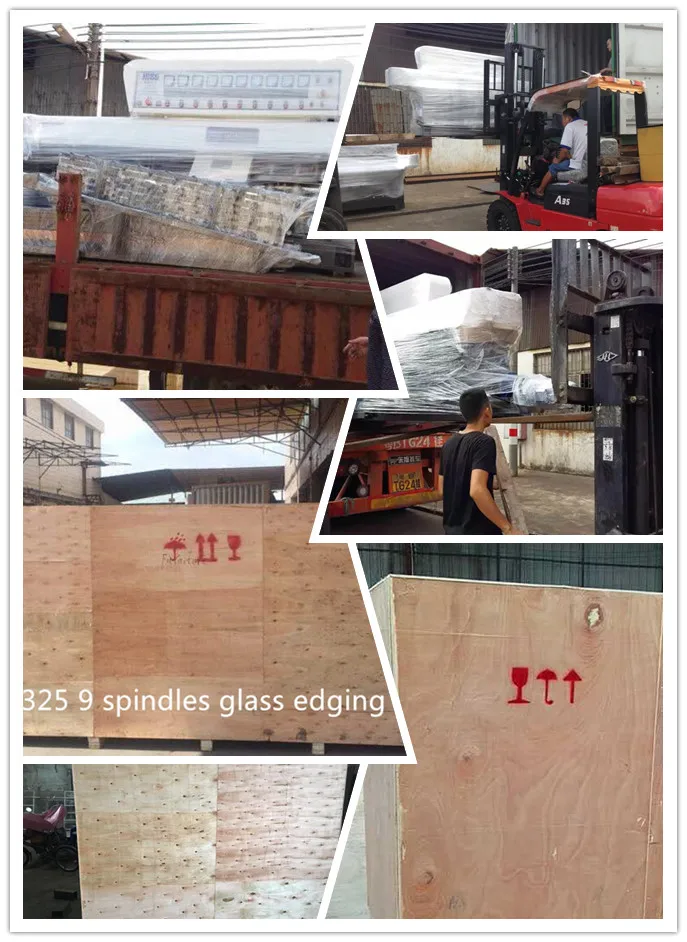

Package: Each PC in wooden cases.
Port of Loading: Qingdao, China
Delivery Time: During 15-35 days after we receive your first payment.
Shipment: Usually by sea, Glass Four Side Edging Line is dismountable, so it can be packed in a small container.
Jinan Zhaoyang Machine Co., Ltd. (Zhaoyang) has been a high and new technology enterprise specializing in developing, empoldering and selling a series of automatic glass machines, laser engraving machine,CNC router machine,window machines and door machines for many years.
Main products: Automatic Laminated glass (various shapes and low-E) production lines, automatic insulating glass production line, glass washing and drying machines, Automatic glass cutting machines, glass engraving machines, laser engraving machine,CNC router machine,CNC Woodworking machine,CNC Advertising machine,PVC window machine,PVC door machine,PVC window and door machine,PVC bending machines,PVC and Aluminum welding machine,PVC and Aluminum cutting saw,corner cleaning machine and other related products.
Advanced products, exquisite techniques, solid working and cordial services all give birth to the unique culture of Zhaoyang today. Zhaoyang always keeps step on the latest technology and is committed to providing the most advanced products for our customers. Moreover, Zhaoyang always emphasizes the training and quality of our staff.
During recent years, our company has taken "customer the highest, technique the first, service following" as our notion, "to be the most customer-oriented and service aware" as our task and "let customer fully know and select the product they need, provide customer the best solutions they need" as our responsibility. Constantly, our company provides high quality services and products for customers. That's why our company receives unanimous trust and good comments from our clients.
Jinan Zhaoyang Machine Co.,Ltd,hopes to set up resplendence with wise people by superior qualitative products and high efficient services.
small bevelling glass edging machine
one of models parameter for reference:
Dimension |
Min processing size |
Glass processing thickness |
Glass transfer speed |
Chamfering degree |
Power |
Weight |
3600*1750*1600mm |
50*50mm |
2mm-12mm |
0.5/min-5m/min |
45 |
13kw | 900kg |
