Sole material Bicycle tire Rubber sheet pvc leather making machine pvc film Calender

Supplier: Zhangjiagang Lanhang Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lanhang Machinery
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Roller Nip Range:	0~6 mm;	Rubber Calender Color:	Green / Blue / etc. (customize available);
Warranty:	1 Year;	PVC Film Calender Material:	Stainless Steel / Carbon Steel / Casting Steel;
Brand Name:	Lanhang;	Type:	Rubber Calender;
After-sales Service Provided:	Free spare parts;	Certification:	CE, SGS, lAF, CNAS;
Power(W):	55000;	Rubber Calender Roller Material:	Chilled Alloyed Cast Iron;
Place of Origin:	Jiangsu China;	Condition:	New;
Roller Gap:	Motorized;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:	100 Set/Sets per Year;	Dimension(LWH):	4.4x1.8x2.3 m;
Weight:	14 T;	Rubber Machine Name:	Rubber Calender;
Packaging Detail:	Wood Pallet & Film Wrap (Rubber Calender);	PVC Film Calender Bearing Style:	Anti-friction Roller Bearing;
Port:	Shanghai;	Motor for the Calender Machine:	Frequency Converter Control;
Voltage:	380V;	After-sales Service Provided:	Overseas service center available;

Why Choose Rubber Calender Products from Lanhang

1. We're founded in 1992, with more than 20 years' professional experience

2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu, Blue Star, Wacker, Momentive...

3. Overseas service center available (in Europe, Japan, Dubai, etc.)

4. International CE, SGS, IAF, CNAS certification

5. National high-tech enterprise / products

6. We own various National Patent for Inventions Letters for rubber & plastic machinery

7. ISO9001:2008 management

Application of Lanhang Brand Rubber Calender

This machine mainly uses in the rubber (tires, belts,textile fiber rubberizing and so on),the plastic (thin film, sheet, thin sheet plate, wallpaper, floor and so on.) formation processing.

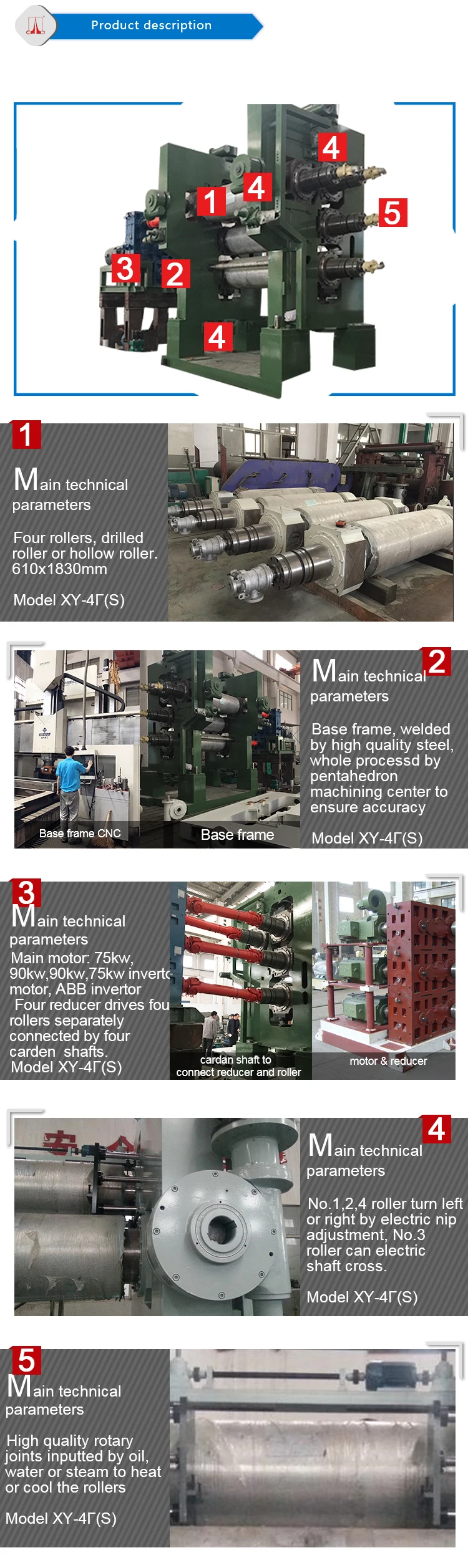

Main Parameters of Our 4 Roll Rubber Calender

Model	XY-4L 630 XY-4Γ 630 XY-4L 630	XY-4Γ 1120	XY-4Γ 1400	XY-4Γ1500	XY-4Γ 1730
Roller Diameter (mm)	Φ230	Φ360	Φ400	Φ450	Φ610
Working Length (mm)	630	1120	1400	1500	1730
Roller Linear Speed	1.5~15 m/min
Speed Ratio	1:1.2:1.2:1
Thickness of Product	0.2~6 mm
Product Width (mm)	100-500	500-920	1200	1250	1500
Thickness of Chilled Layer	10~25 mm
Hardness of Roller	68~72 HRC
Power Supply	AC 380V 50HZ 3P (customize available)
Motor Power (Kw)	15	55/18.3	75/25	100/33.3	160
Air Pressure	0.6~0.8 Mpa
Cooling Water Pressure	0.4 Mpa
Dimension (m)	4.0x1.6x2.2	4.4x1.8x2.3	5.0x1.9x2.6	6.9x2.6x3.8	7.2x2.8x4.0
Weight (t)	8	14	18	33	62
