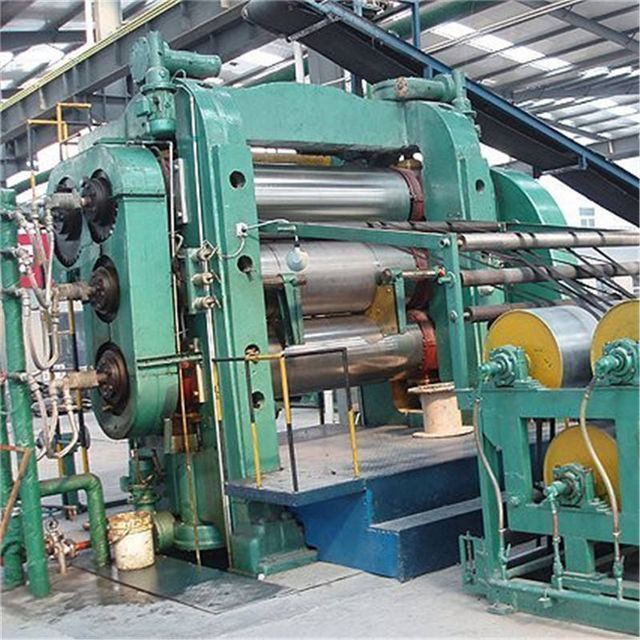

Four Roller Calender/PVC Calender/Four Roller Rubber Calender

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Engineers available to service machinery overseas	Dimensions (LWH):	150024001200mm
Certification:	CE ISO SGS	name:	Four Roller Calender/PVC Calender/Four Roller Rubber Calender
Type of machine:	fully automatic	Warranty:	2 years
brand:	CGY	color:	client needs
place of origin; place of origin:	Shandong China	State of health:	new
Voltage:	client needs	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Advantage:	Low noise, high efficiency	Packaging Details:	Wooden box or according to customer demand
Supply capacity:	30 sets per month	Certificate:	ISO9000/CE/SGS certification
Rubber pad machine calender:	high precision	Processing type:	Plastic thermoforming machine
port:	Qingdao	Types of:	Rubber calender
strength:	60KW	weight:	30 tons

Four Roller Calender/PVC Calender/Four Roller Rubber Calender

1-name: Rubber calender, three-roll rubber calender, two-roll rubber calender, four-roll rubber calender.

2-Features:Making rubber sheets that require the highest thickness quality.

3-feature:

A - The rolls are made of chilled cast iron with vanadium and titanium alloys. The roller surface is hard and wear-resistant. For heating or cooling, the rolls are either drilled around the circumference or in the center to allow an even temperature distribution on the roll surface.

B- Rolls are arranged in I and L forms. The upper roll has roll camber, which can eliminate the bending impact on the roll during the working process. Therefore, it is possible to manufacture products having the same thickness in the axial direction.

The C-drive system adopts hard tooth surface gear reducer, which has compact structure, higher transmission efficiency, lower noise and longer service life.

D- The machine is equipped with an emergency device. In case of an emergency, the calender will stop immediately and the roll gap will be opened to protect the operators and equipment.

4-Certification: CE, SGS, ISO9001

5- Main parameters:

Model and parameters		XY3I 630	XY-3I 1120	XY3I 1400	XY3I 1500	XY3I 1730	XY3I2130
		XY3L 631
			XY-3L1120
Roll diameter	mm	230	400
Roll working length	mm	630	1400
rolling ratio		1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
			1:1.38:1.38	0.73:1:1	1:1.38:1.38
		1:1.42:1	1:1.38:1		1:1.38:1	1:1.5:1
Middle roll line speed	rpm	0.8-8	3-21.06	3-26.39	2.62-26.2	5.5-54	8-50
Adjust the nip	mm	0-7	0-10	0-10	0-6	0-20	0-20
Minimum calendered product	mm	0.2	0.2	0.2	0.2	0.15	0.15
thickness	mm	0.2	0.2	0.2	0.2	0.15	0.15
Motor Power	kilowatt	100-500	500-	1200	1400	1400	1900
Dimensions	mm	3168	5550	6500	7420	7010	7650
	mm	890	1640	1500	2200	3950	4560
	mm	1830	2120	2440	2900	3730	4080
about weight	Ton	2.6	11	twenty two	26	52	67
