rubber mold vulcanizer machine rubber tile making machine

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden case or according to your need;	Supply Ability:	30 Set/Sets per Month;
Applicable Industries:	Manufacturing Plant,Energy & Mining;	Payment Terms:	L/C,T/T;
Local Service Location:	none;	Key Selling Points:	Multifunctional;
Tire Machine Type:	Tire Building Machine;	Brand Name:	chaoguangyue;
Port:	Qingdao/any port of china;	Showroom Location:	none;
Certification:	CE ISO SGS;	Warranty:	3 years;
Type:	Vulcanizer;	Power (kW):	2.2 kW;
Power(W):	According to customer needs;	Dimension(LWH):	According to customer needs;
Place of Origin:	Shandong China;	Weight:	According to customer needs;
certificate:	CE ISO SGS;	Year:	Product after order;
Voltage:	According to customer needs;	Weight (KG):	2000 KG;
Condition:	New;	After Warranty Service:	Online support;
After-sales Service Provided:	Field installation, commissioning and training,Overseas service center available;

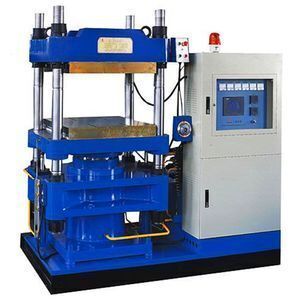

rubber mold vulcanizer machine

1. Small investment, High ruturn
2. Automated temperature
3. Processing easily and low noise
4. Equipment has integrity

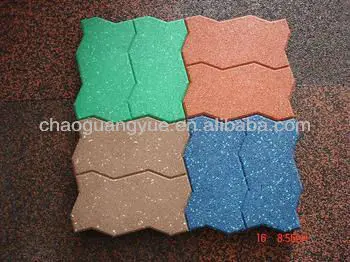

Rubber tile is made of two layers of different rubber granulates, color granulates are fine granulates or rubber wire in surface, the bottom layer is thick rubber granulates or rubber wire.

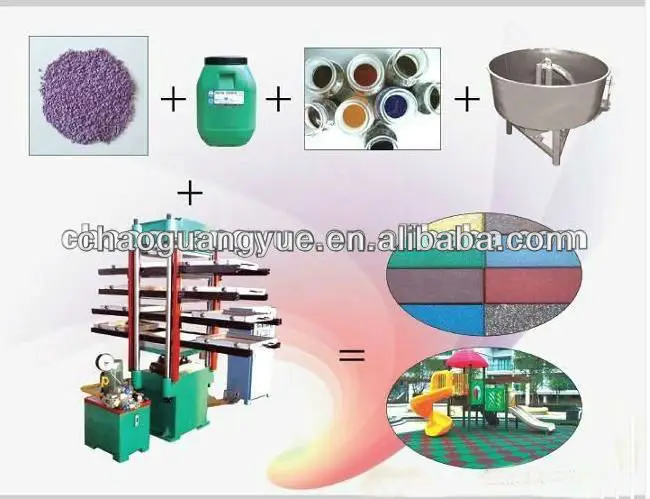

Following is the main processes:

1.conching: Put the rubber granulates and stain into the stirring barrel to stir, and then put into the adhesive to stir, this process requires for 46 minutes ( because the adhesive is easy to cure, so stir it when use ).

2. Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .

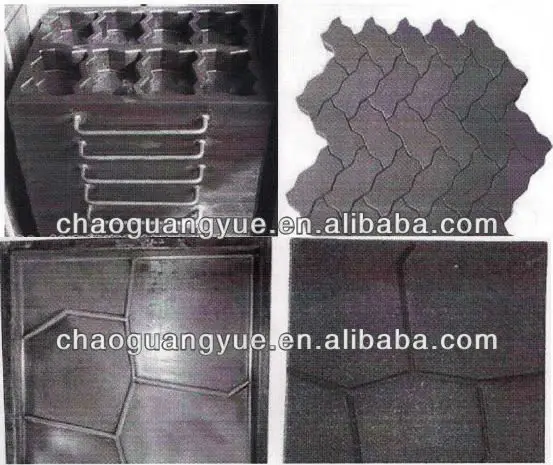

3. Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.

4. Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 38inutes finished. After that, Mold separate automatic, then remove floor tile on the shelves to dry.

5. Inspecting: Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.

Type	XLB-D550x550x4	XLB-D650x650x2
Total pressure(ton)	50	135
plate size (mm)	550x550	650x650
daylight(mm)	150	200
layer	4	2
piston stroke(mm)	400	400
main motor power(kw)	3.0	3.0
overall dimension(mm)	2200x900x2200	2200x1200x2400
weight	3600	5000
