Rubber insulation pipe extruder

Supplier: Qingdao Chaoguangyue Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Daguang Qiu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Reducer gear:	alloy steel	Video shipment inspection:	if
structure:	automatic temperature control	Mechanical test report:	if
Weight (kg):	7200 kg	Screw diameter (mm):	120 mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Advantage:	Better plasticizing effect, higher extrusion capacity
Voltage:	210v, 220v, 380v, 400v, 415v, 440v	After-sales service provided:	Engineers available to service machinery overseas
Core components:	PLC, engine, bearing, gearbox, motor, gear, water pump	port:	Qingdao or any port in China
Warranty:	three years	Certification:	CE/SGS/ISO
Tighten:	more wear-resistant	weight:	7.2 tons
brand:	cgy	Core component warranty:	over 5 years
place of origin; place of origin:	Shandong China	Dimensions (LWH):	301013201500mm
Main selling points:	energy saving	use:	Extrusion and rubber feeding of various rubber products
Applicable industries:	manufacturing plant	Marketing Type:	New Products 2021
Packaging Details:	Standard export carton or FCL or as your request.	Showroom location:	Argentina, Chile, Brazil, Russia
State of health:	new	strength:	90-110KW
Output (kg/h):	1000 kg/h	Supply capacity:	35 sets per month
Types of:	rubber extruder	Power (kW):	110

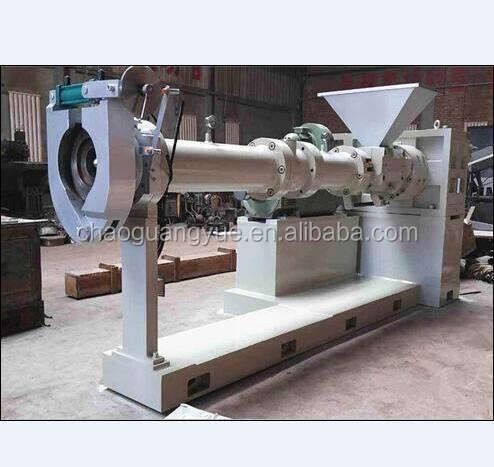

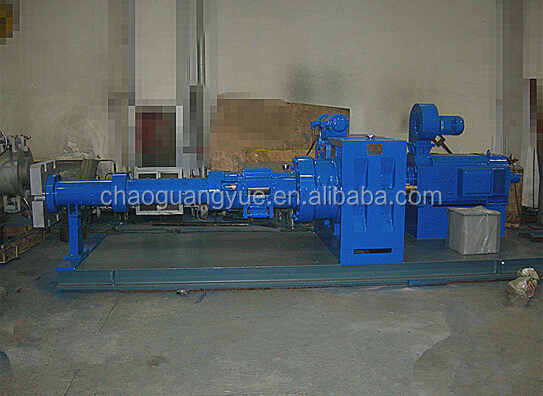

Rubber insulation pipe extruder

use:

Syringe type cold feed rubber extruder is used for extrusion and rubber feeding of various rubber products.

Structural features:

1. The syringe-type cold-feed rubber extruder is a technology introduced by our company. It adopts different extruder heads to extrude various rubber semi-finished products, and can also be used to supply rubber to the rubber rolling machine.

2. The barrel is composed of multiple areas, and in the feeding area, the spiral groove cooperates with the side rollers to increase the feeding capacity. In the plasticizing and extrusion zone, the barrel is equipped with different numbers of pins.

3. The screw rod is processed and polished by foreign milling machine, with excellent geometric precision, and it is more wear-resistant after nitriding treatment.

4. The gear of the reducer is made of alloy steel, and the tooth surface is relatively hard.

5. The hot water circulation device automatically controls the temperature of each zone.

6. The machine is driven by DC motor.

7. The plasticizing effect of this machine is good, the extrusion volume is large, the temperature of the glue is low, and the operation is stable.

8. Our company also manufactures special feeding device for the syringe-type cold-feed rubber extruder to convey rubber strips.

Main Specifications:

Model thing			XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw diameter		mm	Post-90s	120	150	200	250
aspect ratio			12	12;14	14;16	12:14:16	12;14;16
Maximum screw speed		rpm	60	50	43	35	26;30
hopper		mm	130*100	164*130	220*130	260*180	310*230
Number of pin headers			8	8;10	10	10;12	10;12
Number of Pins per row			6	6	8	10	12
power supply			380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
strength		kilowatt	75-90	90-110	200-220	315-355	355-480
hot water circulation area			4	4	4	4	4
Total power of hot water hydronic heating		kilowatt	32	48 years old	48 years old	64	64
capacity		kg/h	250-360	600-900	1000-1500	1600-2600	3000-3500
Dimensions	large	mm	2570	3010	4000	5500	6000
	W	mm	1335	1320	1810	2100	2400
	h	mm	1500	1855	1620	1850	1850
about weight		Ton	~4.5	~6	~7.25	~12	~17

Sealing strip rubber extruder

High-efficiency rubber filters are also produced

Our packing way: export standard (wooden packing) or according to your requirement.

our service:

1. We will design, manufacture, install and test the machines according to customers' requirements. Train relevant personnel for customers to ensure that customers fullyMaster the use and maintenance techniques.

2. Our service department is always listening to customer feedback and providing spare partsParts were in time.

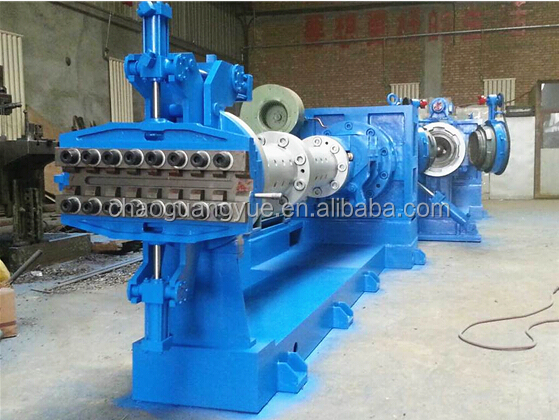

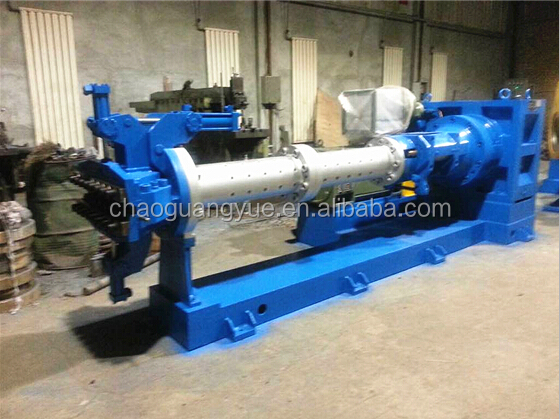

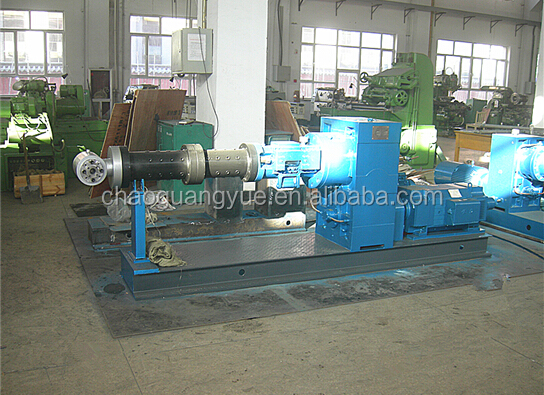

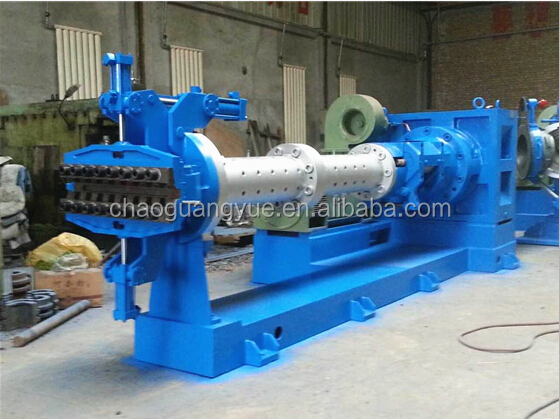

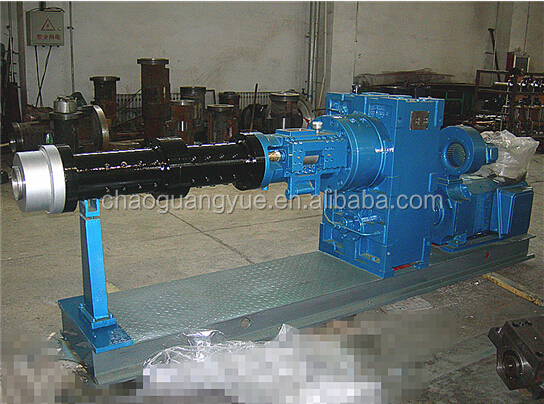

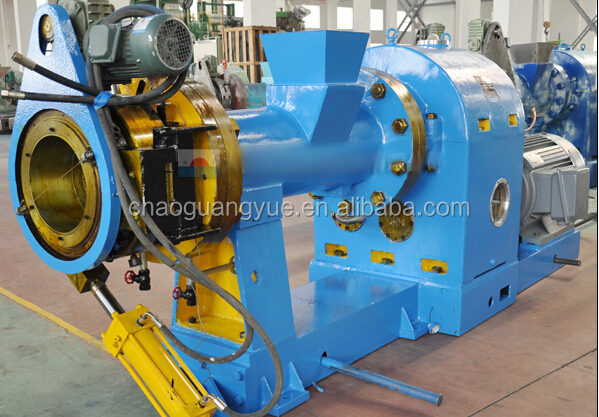

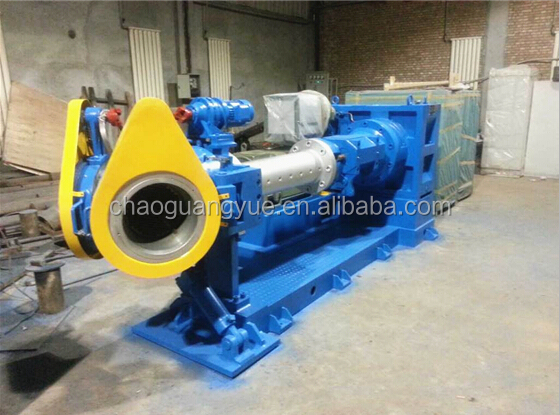

Welcome to visit our factory, we can show you the working status of the machine:

If our products win your interest, please send us an inquiry and we will provide you with detailed information. We can also make non-standard machines according to your requirements.
