Rubber tube/rubber belt/rubber profile extruder

Supplier: Qingdao Jiuzhou Jucai Machine Co., Ltd.
Region: Shandong, China
Contact: Mr edward cheng
Price:
Min. Order: 1 piece

Click here to contact

Product details

Product Description

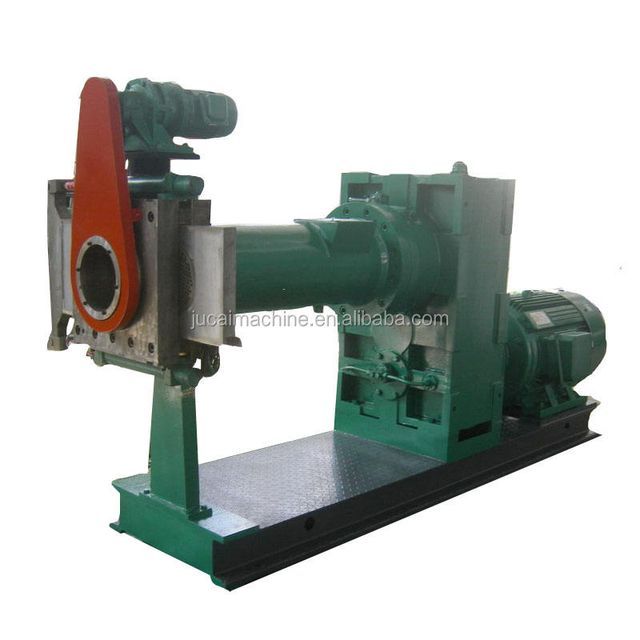

Rubber extruder

Hot feeding rubber extruder: XJ-60(65), XJ-85(90), XJ-115(120), XJ-150, XJ-200, XJ-250

Cold feeding rubber extruder: XJW-65(60), XJW-75, XJW-85(90), XJW-115(120), XJW-150, XJW-200

Waste rubber extruder: XJ-50, XJ-60, XJ-65, XJ-70, XJ-75, XJ-90, XJ-120, XJ-150, XJ-200,

Pin barrel rubber extruder: XJ-50, XJ-60, XJ-65, XJ-70, XJ-75, XJ-90, XJ-120, XJ-150, XJ-200,

Rubber filter: XLJ-150, XLJ-200, XJL-250

Rubber profile extruder

Extrusion lines produce continuous strips of shaped or formed compounds. We offer various types of general rubber extruders suitable for different production capacity requirements.

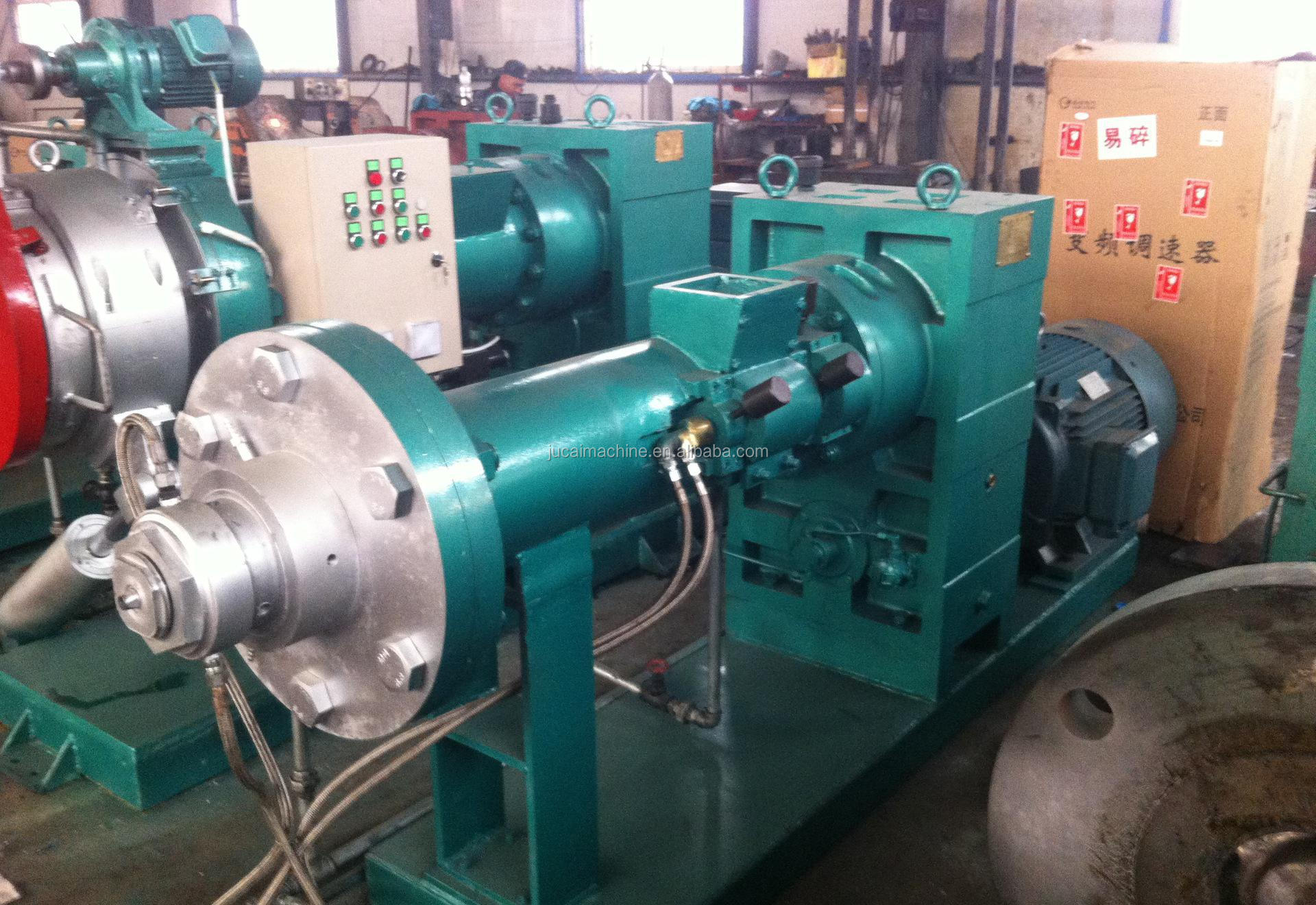

Cold feed rubber extruder

We provide extruders of different diameters, 55mm, 60mm,

75mm, 90mm, 120mm, 150mm suitable for pipes, profiles and tires

Treads, blanks, blocks, fuel lines, fenders, rubber liners and

Other technologies squeeze.

application

The spiral channel of the fuselage system has good thermal conductivity

The screw and bushing are made of nitrided steel, which has good strength and wear resistance.

The screw structure adopts the main thread structure, which has good plasticization and good self-cleaning properties.

C/W temperature control device controlled by hot water circulation device

c/w AC variable frequency or DC motor

Model	XJ-90	XJ-120	XJ-150
Screw diameter	90mm	120mm	150mm
Screw speed	55 rpm	50 rpm	43 rpm
engine	55kW	110kW	185-220kW

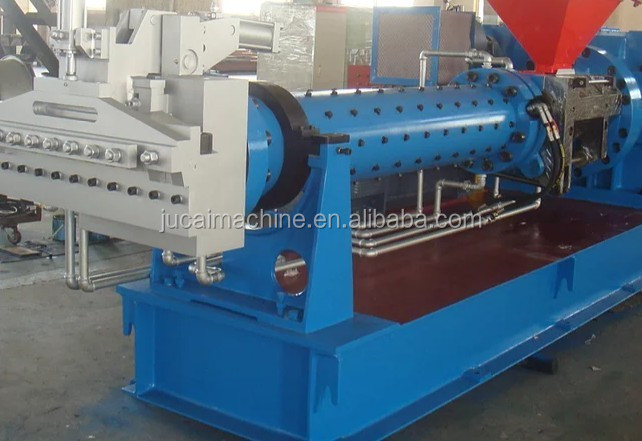

Syringe cold feed rubber extruder

The pin barrel has a segmented structure, and the feeding belt

The cylinder adopts spiral groove and the drum adopts enlarged

Feeding volume, plasticizing extrusion barrel

Pins contain different numbers

application

Introduced Acten's pin-type cold feed extruder with advanced manufacturing technology

The pin barrel has a segmented structure to increase plasticization

The screw is CNC milled, high-precision polished, and nitrided.

It has strong extrusion capacity, low production temperature and stable production.

Model	XJ-120	XJ-150	XJ-200
Screw diameter	120mm	150mm	200mm
Screw speed	50 rpm	43 rpm	40 rpm
engine	110kW	185-220kW	315kW

Rubber profile extrusion

We provide quality profile production systems

Manufacture of rubber, TPE or silicone profiles. us

Recognize the importance of different extrusions

Vulcanization technology, accomplished through proper cooling,

Cutting and winding systems ensure a stable production process.

Hot feed rubber extruder

It is widely used in the extrusion molding of rubber products such as rubber tubes, pipes, rubber sheets, airtight layers, seals, etc. It can also be used to supply glue to calenders.
