Rubber band making machine/natural rubber band production line and technical support

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380V or as your request	Core component warranty:	2 years
capacity:	1000 kg/h	port:	Qingdao
Main selling points:	long lasting	Output (kg/h):	1800 kg/h
Health status:	new	Dimensions (LWH):	Different sizes
Warranty:	12 months	Screw diameter (mm):	200mm
Packaging Details:	Wooden packaging can be customized. The key components are wrapped with shockproof packaging materials, and then packed in wooden boxes.	Screw speed(rpm):	3 - 64 rpm
Serve:	custom made	Power (kW):	90
Key words:	with technical support	brand:	Securities Regulatory Commission
Screw aspect ratio:	1:4.4	Year:	custom made
Supply capacity:	20 sets per month	Customs code:	84778000
usage:	Making Natural Rubber Bands	Video outbound inspection:	if
type:	Natural Rubber Band Products Making Machine	Weight (kg):	3800 kg
Origin:	Shandong Province, China	Applicable industries:	Manufacturing plants, machine repair shops, retail
Screw diameter:	115 mm	Type of machine:	complete production line
Showroom location:	Egypt, Vietnam, Brazil, Russia	After Warranty Service:	On-site maintenance and repair services
Length: Depth:	4.4:1	Core components:	Engine, gearbox, motor
payment terms:	L/C, T/T	Package preview:
Mechanical test report:	if

Rubber band making machine/natural rubber band production line and technical support

Qingdao Shunchang Rubber Machinery Manufacturing Co., Ltd.Qingdao Rubber Machinery Co., Ltd. is located on the west coast of Qingdao City. It is a professional manufacturer of rubber machinery. Our company is committed to the development and research of rubber machinery, and actively introduces foreign design and manufacturing technology.

The company implements the ISO9001:2008 quality management system, has advanced manufacturing equipment, rich technology and perfect sales service system. General managerMr. Liu (Whatsapp : 0086-18253286958)Warmly welcome business friends from all walks of life to establish business relationships and create a brilliant and successful future together.

eraserSecondandSecondextrusionProductionine:

No.	thing	Quantity (set)
01	Rubber Bale Cutting Machine	1
02	Rubber kneader	1
03	Rubber mixer	1

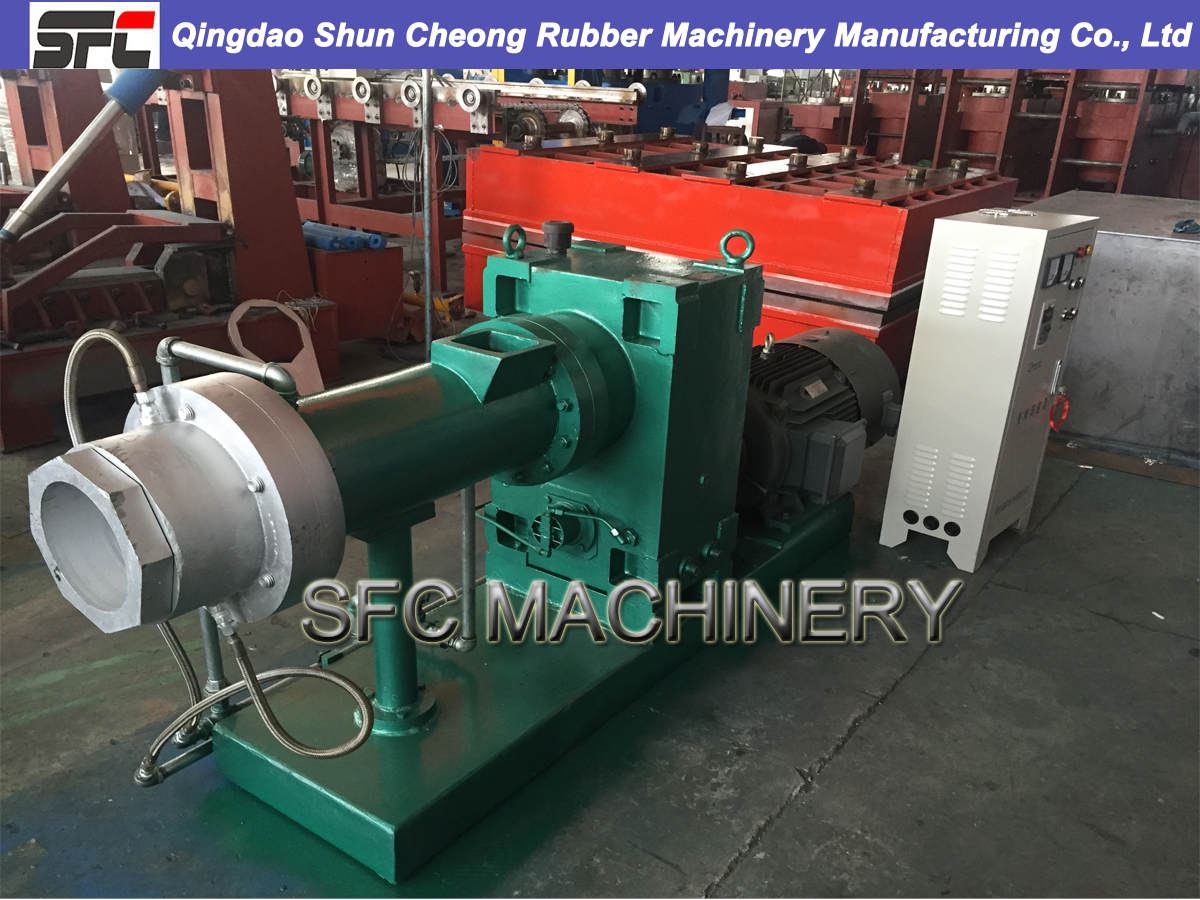

04	Hot Feed Rubber Extruder	1
05	Vulcanization tank	1
06	Rubber Band Cutting Machine	1

application:

The hot-feed rubber extruder can be used for the molding and extrusion of various rubber products, rubber products, wire and cable outer coatings, and can also be used for the extrusion of rubber filters.

Parameter Type	XJ-65	XJ-120	XJ-150	XJ-200
Screw diameter (mm)	65	120	150	200
Screw aspect ratio (L/D)	4	4.6	4.43	4.35
Screw speed r/min	5.2~52	5.6~55.6	20~26	22.4~67.2
Production capacity (kg/hour)	50~80	100~450	700-1200	1500-2200
Vapor pressure (Mpa)	0.2-0.3	0.2~0.4	0.6	0.6-0.8
Cooling water pressure (Mpa)	0.2-0.3	0.2~0.4	0.2-0.3	0.2-0.3
Dimensions (length x width x height) (mm)	1750×550×1100	2427×750×1330	3411×814×1470	4564×1800×1750

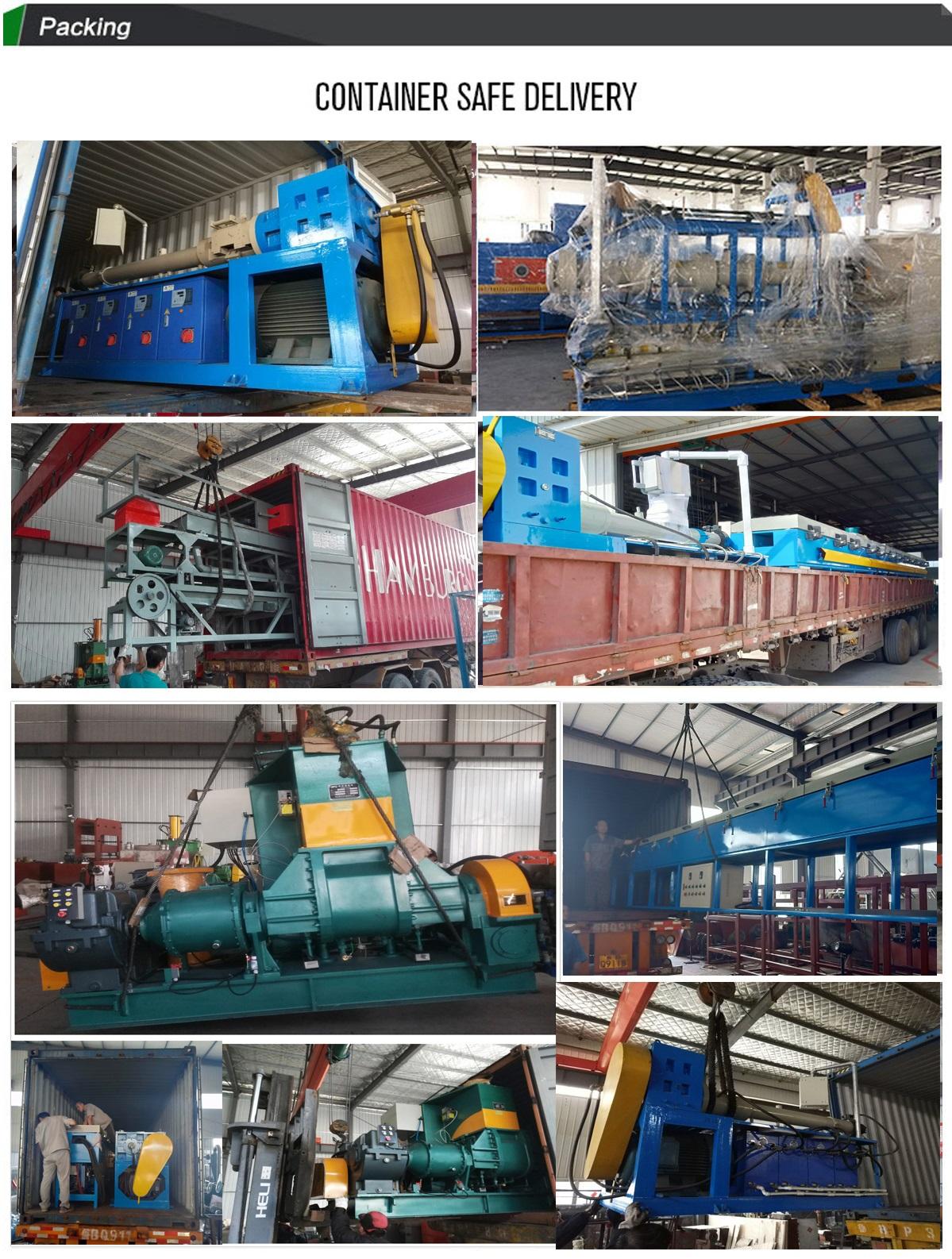

Packaging and Shipping

our service

Our main products include:

Mixing equipment:Rubber kneader, two-roll mill, rubber tablet press, rubber refiner, rubber crusher.
Curing equipment: Column/frame type flat vulcanizing machine, duplex vulcanizing machine, rubber brick vulcanizing machine, jaw type vulcanizing machine, large flat vulcanizing machine, automatic flat vulcanizing molding machine, etc.

Extrusion equipment:Hot feed extruder, rubber filtering machine, EPDM rubber extrusion vulcanization production line.

Calender equipment:Two-roll calender, three-roll calender, four-roll calender, inner liner and rubber calender line.

Waste tire recycling equipment:Semi-automatic waste tire recycling production line, fully automatic waste tire recycling production line, new waste tire recycling production line. Fine rubber powder pulverizer.

other devices:Reclaimed rubber production line, intermittent cooling machine, conveyor belt splicing machine, etc.
