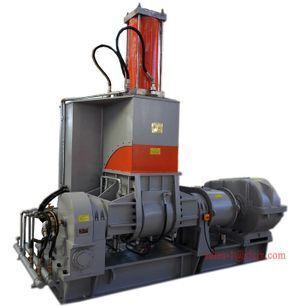

rubber kneader/rubber mixer / kneader machine 35 liters

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SFC;	Weight:	different weight;
Condition:	New,New;	Warranty:	1 Year;
Capacity:	35L;	Automatic Grade:	Automatic;
Payment Terms:	L/C,T/T;	Dimension(LWH):	3200x1900x2950mm;
Power:	55KW;	Type:	Rubber kneader;
After-sales Service Provided:	Field maintenance and repair service,Video technical support,No after-sales service,Field installation, commissioning and training,Online support,Engineers available to service machinery overseas;	Port:	Qingdao;
Reducer:	Hardened reducer;	Supply Ability:	20 Set/Sets per Month;
HS code:	84778000;	Place of Origin:	Shandong China;
Voltage:	380V or as requirement;	Certification:	ISO9001:2008/CE/SGS;
Year:	Customized;	Model Number:	X(S)-35X30;
Layout type:	Horizontal;	Service:	Customized;
Packaging Detail:	wooden packaging can be customized. key parts will be wrapped by shockproof packaging materials, and then packed in wooden cases.;	Machine Type:	Mixer;

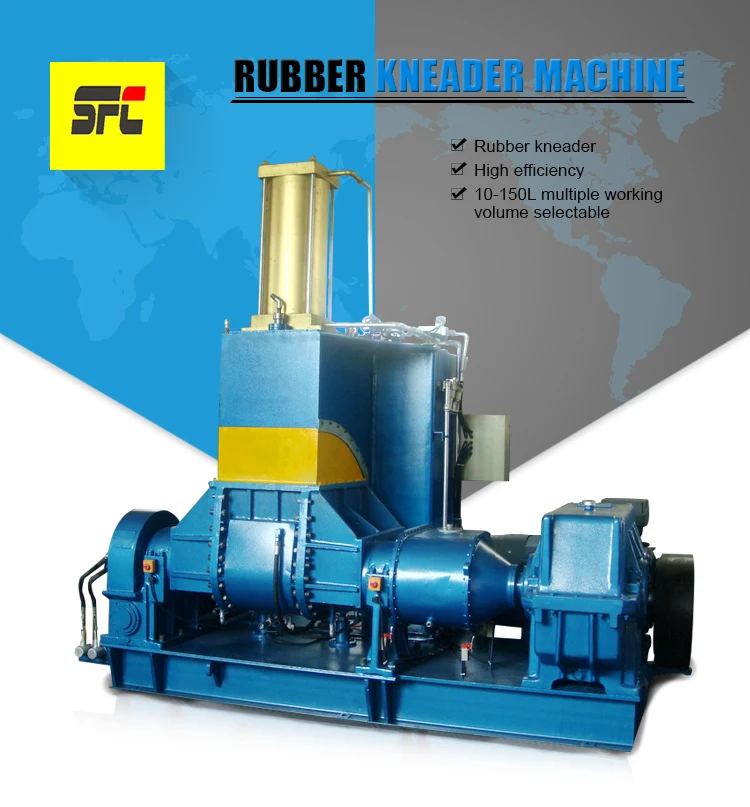

rubber kneader/rubber mixer / kneader machine 35 liters

Product Description

Application:

This Rubber Kneader is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.

Construction Features:

1. With completely condition, materials are mixed or plasticizing under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent quality

2. Spiral angle and over lapping length of blades of the rotors are of reasonable design and make the materials to be dispersed uniformly

3. Rubber Kneader surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant

4. Jacket construction is adopted in rubber kneader parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.

Item	Unit	X(S)N-35x30	X(S)N-55x30	X(S)N-75x30	X(S)N-110x30	X(S)N-150x30	X(S)N-200x30
Total Volume of Mixing Chamber	(L)	75	125	170	250	325	440
Working Volume of Mixing Chamber	(L)	35	55	75	110	150	200
Driving Motor Power	(KW)	55	75	110	185	220	280
Titling Motor Power	(KW)	2.2	2.2	4	5.5	11	11
Rotational Speed of The Rotor (front/rear)	(r/min)	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	(m³/min)	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥4.0
Pressure of Cooling Water (mixing rubber)	(MPa)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam (plastic mixing	(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions (L x W x H)	(mm)	3200x1900x2950	3230x1927x2958	3325x2615x3150	4075x2712x3580	4250x2750x4106	4250x3400x4215
Gross Weight	(t)	~6.3	~7.1	~9.5	~14.9	~19.5	~22.5

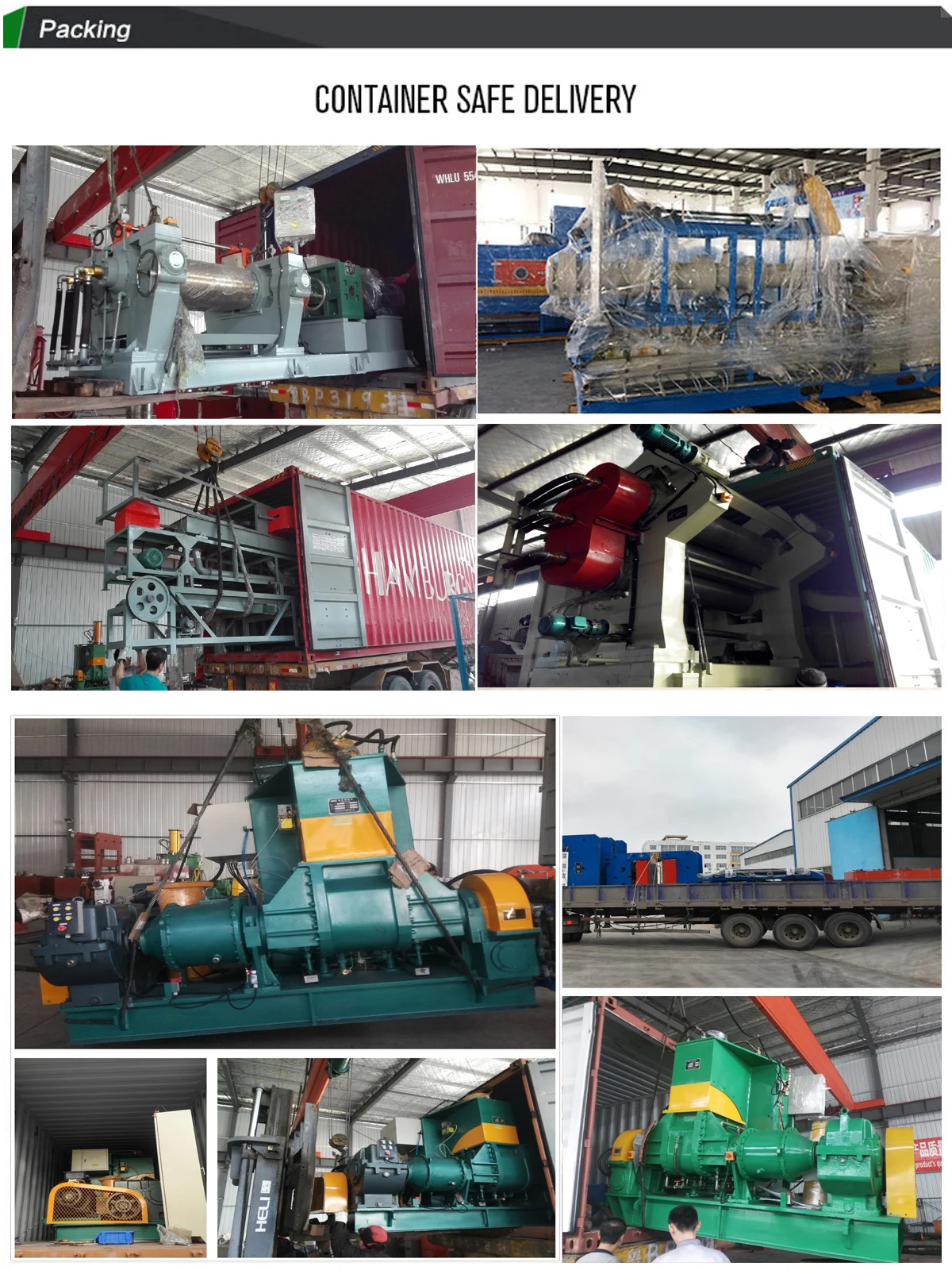

Packaging & Shipping

Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
