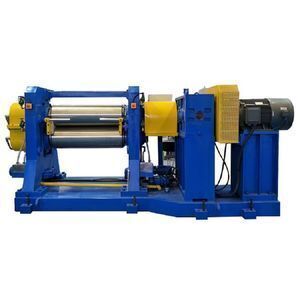

Rubber Sheet Calendering Machine / Rubber Calender

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Condition:	New;
Weight:	different;	Brand Name:	SFC;
Certification:	CE , ISO , SGS;	Packaging Detail:	Seaworthy Package for rubber calender;
Place of Origin:	Shandong China;	Dimension(LWH):	different size;
Year:	customized;	Power:	45 KW;
Port:	qingdao;	Payment Terms:	L/C,T/T;
Style:	Rubber Calender;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;
Voltage:	220-510V;	Supply Ability:	4 Set/Sets per Month;

Rubber Sheet Calendering Machine / Rubber Calender

Product Description

We can make 2 rolls, 3rolls and 4 rolls; Φ250-Φ800mm; I type, r type, L type and s type calenders.

1. Tailored structure, easy to operate and install.

2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.

3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.

4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

5. Perfect emergency stop device can ensure the safety of person and equipment

6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil

7. The calendar is equipped with rolling bearings.

8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.

Model	XY-2I-320	XY-2I-630	XY-2I-900	XY-2I-1500	XY-2I-1830	XY-2I-1730
Roller Diameter	160	230	360	450	550	610
Roller Working Length	320	630	900	1500	1830	1730
Roller Ratio	1:1	1:1	1:1	1:1	1:1.08	1:1
Roller Linear Speed	7.79	14.8	3-20.2	2.5-24.8	2-18.7	4-36
Nip Adjustmen Range	0-4.5	0-5.5	0-10	0-10	1-12	0-15
Min Thickness of Production	0.2	0.2	0.2	0.2	0.2	0.2
Production Width	250	580	920	1250	1600	1500
Main Motor Power	5.5	15	37	45	75	90
Diamenson	22005301470	31007701590	533015421681	7113-1595*2446	742017602760	598718602988
Weight	~1.2	~5	~14.5	~22	~24	~30

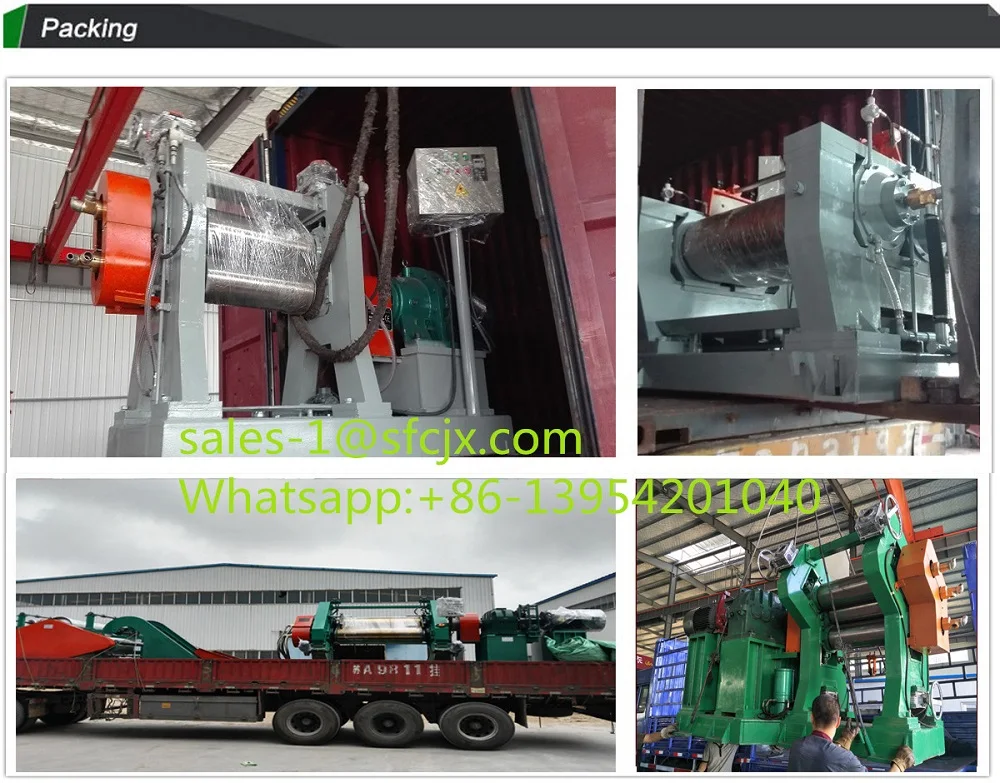

Packaging & Shipping

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
