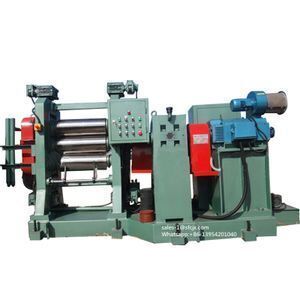

Excellent quality three roll rubber calendering machine for rubber sheet

Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr Jake Chen
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Year:	customized;	Key Selling Points:	stable quality;
Product name:	Calender Machine;	After-sales Service Provided:	Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;
Port:	Qingdao;	Warranty:	1 Year;

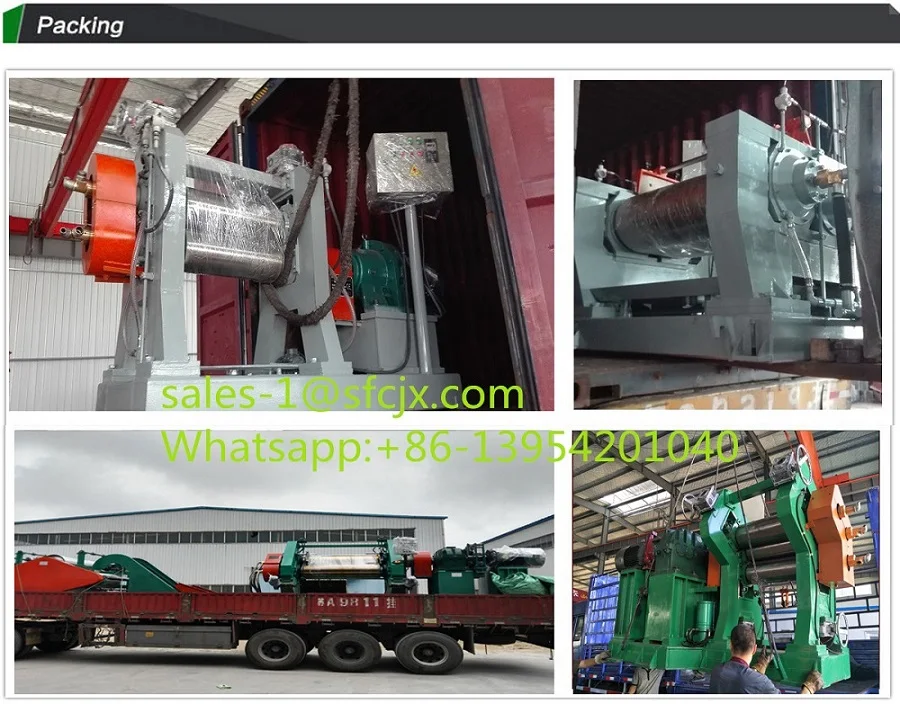

Brand Name:	SFC;	Packaging Detail:	Seaworthy Package for rubber calender;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Weight:	42000;
Condition:	New;	Voltage:	380V or as required;
Showroom Location:	Viet Nam,Russia,Thailand;	Power(W):	160KW;
Dimension(LWH):	7322 x 2040 2400 mm;	Place of Origin:	Shandong China;
Power (kW):	160;	Supply Ability:	4 Set/Sets per Month;
Payment Terms:	L/C,T/T;	Local Service Location:	Sri Lanka,Russia,Thailand;
Function:	Rubber Sheet;	Certification:	CE; ISO;SGS;
Weight (KG):	42000;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail;
Control System:	PLC;

Three roller calendering machine for making rubber coating or rubber sheet

We can make 2 rolls, 3rolls and 4 rolls; Φ250-Φ800mm; I type, r type, L type and s type calenders.

1. Tailored structure, easy to operate and install.

2. There are many speeds and speed ratios available, which can satisfy most customers’ formula and technique requirements.

3. Frame and base., looking very nice, are welded and treated by annealing for stress relieving.

4. The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.

5. Perfect emergency stop device can ensure the safety of person and equipment

6. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil

7. The calendar is equipped with rolling bearings.

8. The roll is made of chilled cast iron alloy (LTG-H), equipped with rotating joint. Its surface finish is over Ra0.8.bored and drilled rolls are optional.

9.. Roll spacing can be adjusted both by manual or electric mode.

10.. Roller bearings lubricating can adopt drier oil or dilute oil.

Model	XY-630	XY-900	XY-1120	XY-1400	XY-1500	XY-1730	XY-2130	XY-2430
Roll Diameter *Length	230*630	360*900	360*1120	400*1400	450*1500	610*1730	710*2130	810*2430
Friction Ration	1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1	1:1:1 1:1.383:1.383	1:1:1 1:1.5:1	1:1:1 1:1.4:1	1:1:1	1:1:1 1:1.51:1
Middle Roll Linear Speed(RPM)	0.8-8	3-21.06	1.5-15	3-26.39	2.62-26.2	5.4-54	8-50	2-20
Nip Adgustment Range	0-7	0-10	0-10	0-10	0-6	0-20	0-20	0.5-25
Min.Thickness of Product	0.2	0.2	0.2	0.2	0.2	0.15	0.15	0.15
Production Width	100-500	700	920	1200	1400	1530	1900	2150
Motor Power	7.5	45	45	55	75	132	185	220
Dimension	31688901830	532016402120	516016402120	650015002440	742022002900	701039503730	765045604080	930031505200
Weight
