Twin-screw extruder color: | client needs | Finished product: | Granules |
Twin-screw extruder capacity: | 200kg/h-300kg/h | Marketing Type: | New Products 2020 |
Screw diameter (mm): | 62.4mm | Mechanical test report: | if |
Showroom location: | not any | application: | Rubber Processing Machinery |
Voltage: | 380V | Power (kW): | 75kw/90kw/110kw/132kw |
Screw aspect ratio: | 44/52 | Video shipment inspection: | if |
Packaging Details: | wooden bag | aftersale service provided: | Engineers available to service machinery overseas |
port: | Nanjing Shanghai | Origin: | Jiangsu, China |
Twin-screw extruder frequency converter: | ABB Siemens | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, water pump, frequency converter |
Screw speed (rpm): | 400 - 600 rpm | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Supply capacity: | 20 pieces per month | Main selling points: | high accuracy |
Year: | 2020 | Weight (kg): | 4500 kg |
Twin-screw extruder features: | Compounding and Granulation | brand: | Juli |
Core component warranty: | 1 year | Health status: | new |
Type of machine: | Rubber and plastic machine | Applicable industries: | manufacturing plant |
Dimensions (L*W*H): | 3500*3200*2800mm | Output (kg/h): | 300 kg/h |
Warranty: | 1 year |

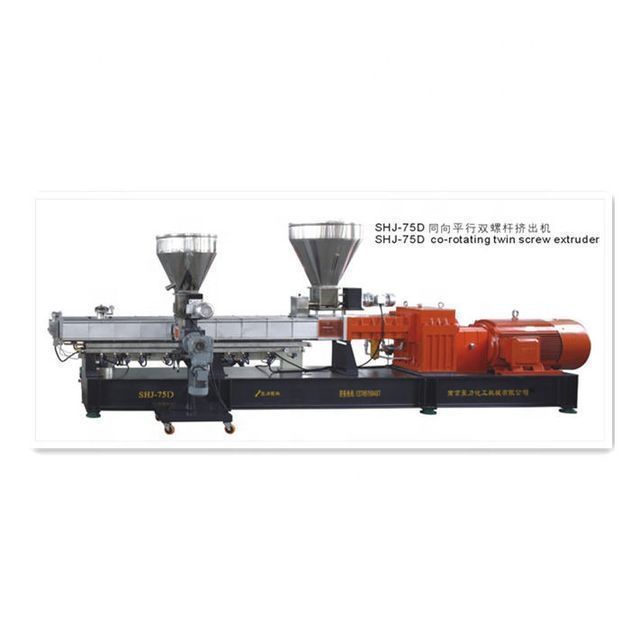

nanjing plastic extruder twin screw extruder
Both the screw and the barrel are designed according to the principle of building blocks, which can ideally realize the wide performance and special purpose of the machine.

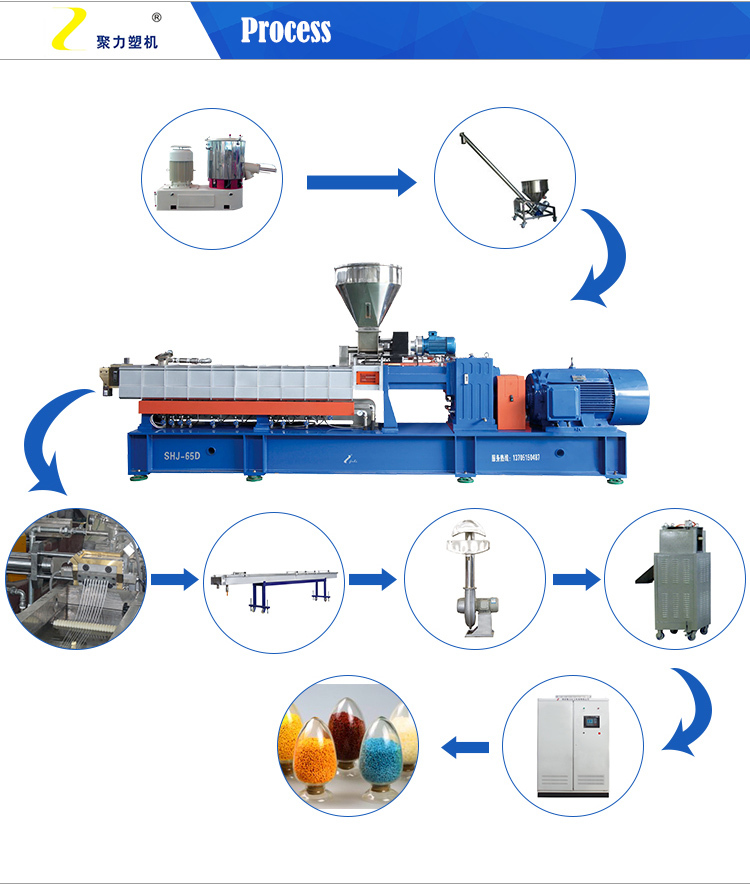

Different pelletizing methods can meet specific material properties: water-cooled strand pelletizing, air-cooled hot-cut pelletizing, water ring pelletizing, underwater pelletizing, etc.
underwater Granulation system |
Used in the production of almost all thermoplastics, hot melt adhesives, Especially for some materials with low hardness and high viscosity |
steel strand Granulation system |
Pelletizers for processing molten polymers into cylindrical shapes, Dry and easy-to-handle plastic pellets |
water ring Granulation system |
Pelletizers for the production of various masterbatches, Filled and enhanced products, etc. |
air cooled Granulation system |
Pelletizers for the production of temperature- and shear-sensitive plastics
|
