Raw materials: | Rubber mixing, plastic mixing; | Total capacity (L): | 75 liters; |
Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump; | Voltage: | as your local voltage; |
Supply capacity: | 30 sets per month; | Heating/Cooling: | Steam heating/water cooling; |
State of health: | new; | Warranty: | within 12 months; |
Core Components Warranty: | 3 years; | port: | Qingdao; |
Power (kW): | 180kW; | weight: | About 6000 kg; |
Applicable industries: | manufacturing plant; | Dimensions (L*W*H): | 3200*1900*2950; |
Batch time (times/hour): | 4 times/hour; | Marketing Type: | normal product; |
model: | xn-75; | Mechanical test report: | if; |
Power (W): | 55 kilowatts; | Origin: | Shandong China; |
Showroom location: | not any; | Main selling point: | multifunctional; |
Tilt drive type: | Worm gear drive/hydraulic drive; | Packaging Details: | The machine will be packed in small wooden boxes or containers; |
Main drive type: | left/right hand driving; | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Weight (kg): | 10500 kg; | brand: | gather talents |
Video external inspection: | if; |
Workload:1.5L, 3L, 5L, 10L, 20L, 25L, 35L, 55L, 75L, 95L, 110L, 150L, 200L, 300L
Front Roller Speed:30 rpm, 32 rpm, 40 rpm
Tilt drive type:Worm gear pair transmission, hydraulic transmission
Main drive type:left drive, right drive
Heating/cooling type:Steam heating/water cooling, warm water circulation heating/cooling, electric heating/water cooling, oil heating/cooling
Gearbox Type:Medium carbon alloy steel medium hard tooth gearbox / low carbon alloy steel hard tooth gearbox

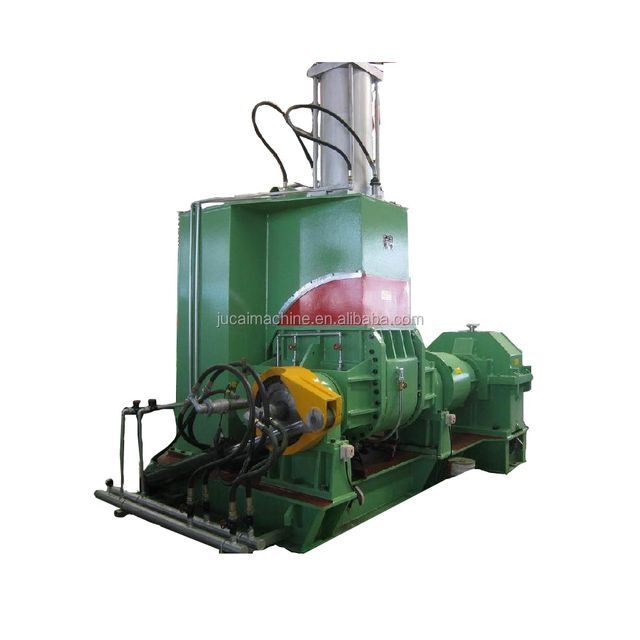

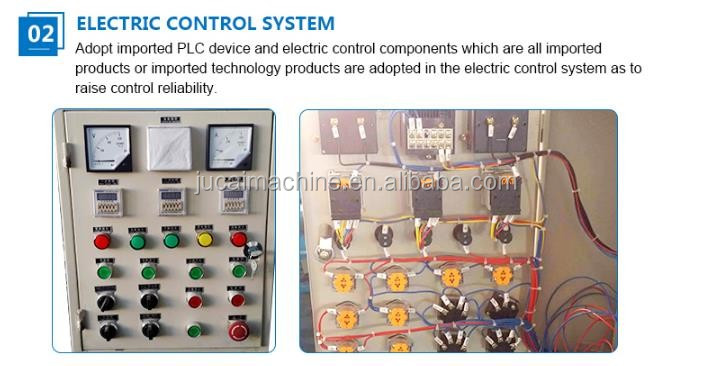

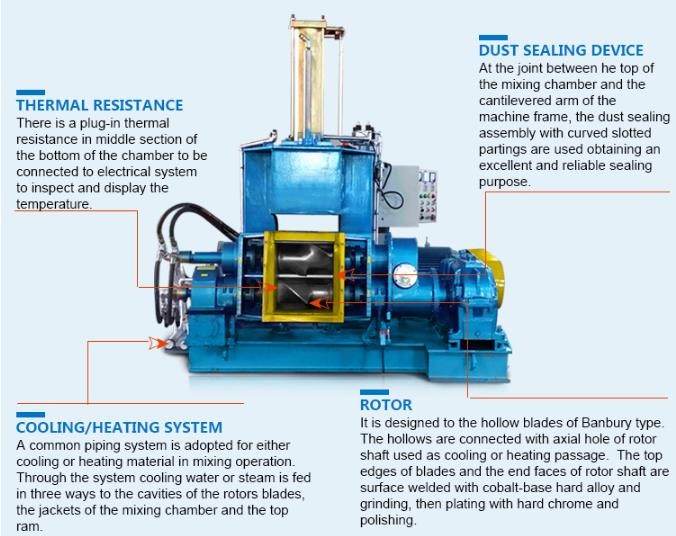

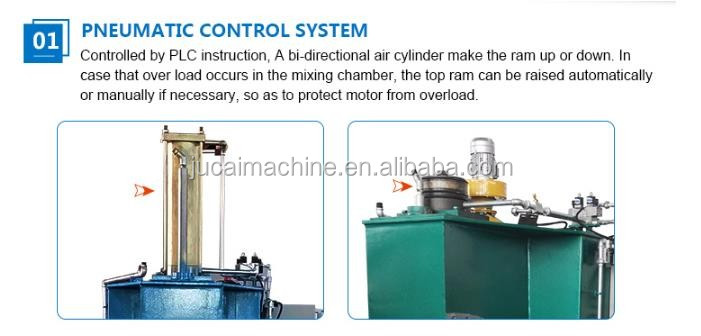

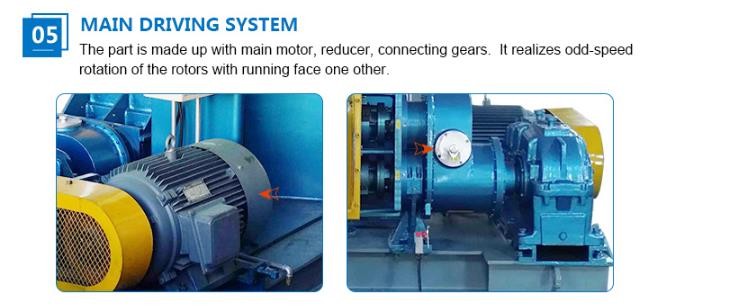

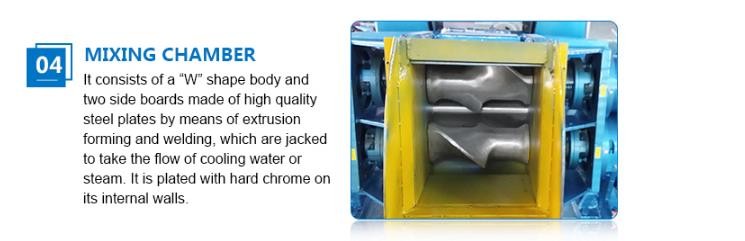

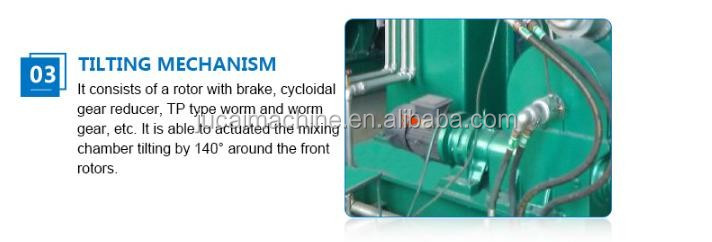

This series of rubber kneaders is a dispersing kneader, which consists of pneumatic control system, electrical control system, tilting mechanism, mixing chamber, main drive system, dustproof device, thermal resistance, rotor and cooling/heating system.You can choose the right model according to your needs.The following are the main technical parameters of each model
Model | X(S)N25*32 | X(S)N35*30 | X(S)N55*30 | X(S)N75*30 |
total chamber volume | 50L | 75L | 125L | 180L |
Chamber working volume | 25L | 35L | 55L | 180L |
main motor | 37kW | 55kW | 75kW | 110kW |
Tilt motor | 1.5kW | 2.2kW | 3.0kW | 4.0kW |
leaning angel | 135 | 140 | 140 | 140 |
Rotor speed | 32/25 | 30/24.5 | 30/24.5 | 30/24.5 |
compressed air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
cooling water pressure | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
cooling water consumption | 6-10 | 8-12 | 10-15 | 18-20 |
machine weight | 4500 kg | 6500 kg | 7500 kg | 10300kg |
