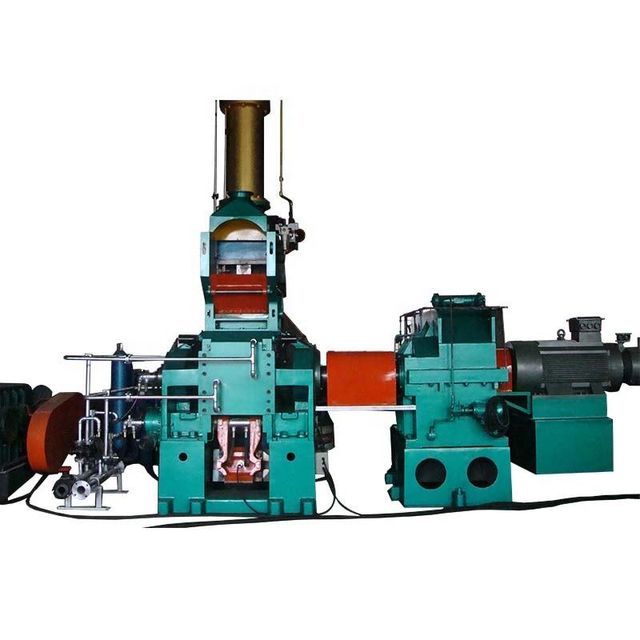

Tangential rotor rubber mixer
Rubber mixerIt is the best machine for mixing large quantities of plastic and rubber materials.
1. The diversity of rotor types can meet different mixing requirements. Users can choose any type of rotor (different rotors have different total volume and working volume of the mixer.
2. The drive system uses a DC motor or an AC variable frequency motor to achieve stepless speed regulation, or an AC motor plus a gearbox, etc. The drive system has the advantages of smooth driving, low noise, and long service life.
3. The standard rotor adopts right-hand drive system. Left-hand drive systems can also be provided according to user needs.
4. The drive system uses DC motors or AC variable frequency motors to achieve stepless speed regulation, or uses AC motors plus gearboxes, etc. The drive system has the advantages of smooth driving, low noise, and long service life.
5. The on-site operation cabinet and electrical control cabinet adopt PLC communication to reduce equipment failures and reduce installation costs.
|
Model |
X(S)M-50 |
X(S)M-80 |
X(S)M-110 |
X(S)M-160 |
X(S)M-250 |
X(S)M-270 |
X(S)M-370 |
|
|
Total volume(L) |
50 |
80 |
110 |
160 |
250 |
250 |
Chapter 395 |
|
|
Fill factor |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
|
Rotor speed (r/min) |
4-40 (40) |
4-40 (40) |
4-40 (40) |
4-40 (30) |
20 |
4-40 |
6-60 |
|
|
Maximum gate pressure (MPa) |
0.5 |
0.5 |
0.55 |
0.5 |
0.18-0.24 |
0.52-0.6 (hydraulic) |
0.54-0.6 (hydraulic) |
|
|
Main motor power (KW) |
90 DC (95AC) |
200 DC (210 exchange) |
250 DC (240 exchanges) |
355 DC (355 exchange) |
240 exchange |
1250 DC 1250/1500 AC |
2x1250DC |
|
|
go out aspect
|
L |
5,560 people |
5,800 |
6,000 |
8,900 |
7,500 |
7,450 |
11,150 |
|
watt |
2,700 |
2,500 people |
2,850 |
3,330 |
3,900 people |
4,140 |
4,960 |
|
|
H |
3,250 people |
4,155 |
4,450 |
6,050 |
4,730 |
6,270 |
7,040 |
|
|
Total weight (kg) |
16,000 |
22,000 |
29,000 |
36,000 |
33,500 |
50,000 |
78,000 |
|
One year warranty for the whole machine
24-hour technical support via email or phone
Phone or door-to-door service
Qingdao Yuanfang Machinery Co., Ltd. (formerly China Rubber Machinery Corporation) is a technology pioneer enterprise specializing in the production of rubber machinery. It is a leading manufacturer and export base in China's rubber machinery industry.
