Factory price 90mm hot feed rubber extruder machine/90mm single screw extruders

Supplier: Qingdao Everfine Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr David Shao
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Power:	22kw;
Speed Ratio:	4.8:1;	Certification:	CE, ISO;
Packaging Detail:	Wooden case or loose package;	Overall Dimension:	1500x604x1053mm;
Payment Terms:	L/C,D/A,D/P,T/T;	Screw Diameter:	90mm;
Voltage:	220v, 380v, 415v, 440v, 460v, 480v, ect.;	Port:	Qingdao;
Key Selling Points:	best quality and best price;	Power(W):	22kw;
After-sales Service Provided:	Field maintenance and repair service, Field installation, commissioning and training, Online support;	Warranty:	1 year;
Supply Ability:	30 Set/Sets per Month;	Weight:	2400kgs;
Output:	280kg/h;	Maximum Screw Speed:	65r/min;
Brand Name:	Everfine;	Applicable Industries:	Manufacturing Plant;
Condition:	New;	Weight:	2400kgs;
Dimension(LWH):	1500x604x1053mm;

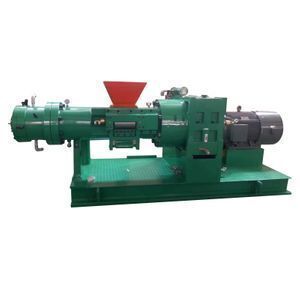

High efficency 90mm single screw hot feeding rubber extruder

Application

Hot feeding rubber extruder machine can be used for the shaping extrusion of various kinds of rubber products, rubber products, rubber wrap up for the out layer of the wire and electric cable and to do the rubber filter extrusion as well.

Product Description

Hot feeding rubber extruder machine mainly consists of the screw, die head, machine body, heating and cooling system, electrical system and reducing gear boxes. Below is the main product parameters:

Item	Screw Diameter (mm)	L/D Ratio	Maximum Screw Speed (r/min)	Output (kg/h)	Overall Dimension (mm)	Weight (kg)
XJ-60	60	4.5:1	75	72	1500x604x1053	880
XJ-65	65	4.5:1	75	85	1594x604x1053	1000
XJ-85	85	4.8:1	65	190	2065x760x1164	1500
XJ-90	90	4.8:1	65	280	2100x760x1164	2400
XJ-115	115	4.8:1	60	420	2770x860x1344	3100
XJ-120	120	4.8:1	60	520	2800x860x1344	3600
XJ-150	150	4.6:1	55	1100	3411x900x1450	6100
XJ-200	200	4.35:1	45	2500	4549x1140x1750	7200
XJ-250	250	4.5:1	45	4200	4950x1150x1800	8200
