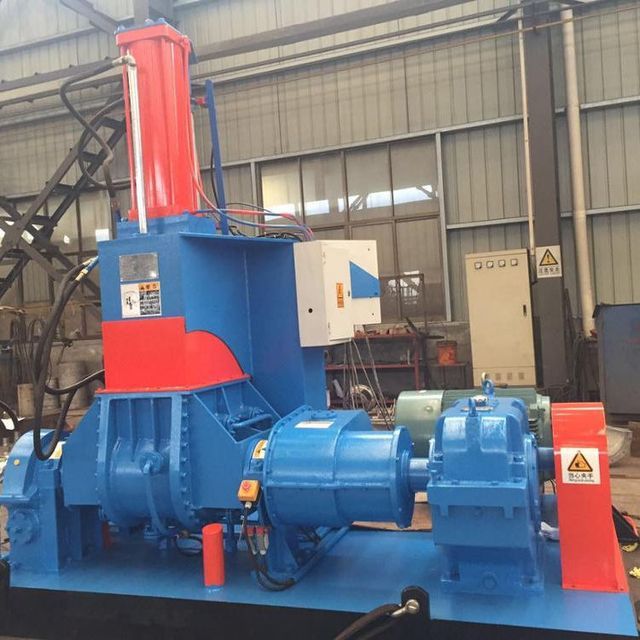

Banbury Internal Mixer 50L/75L/150L/Rubber Industry

Supplier: Nantong Kneading Mixing Machine Co., Ltd.
Region: Jiangsu, China
Contact: Mr Donghong Wu
Price: $8800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Wooden box (can be customized according to user requirements and specifications)	Showroom location:	not any
Weight (kg):	4500 kg	Batch time (times/hour):	10 times/hour
brand:	new friend	model:	75 liters
Power (kW):	90 kW	Supply capacity:	1500 sets per year
Total capacity (liter):	75 liters	Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, food stores, print shops, construction, energy and mining
Main selling points:	high accuracy	Health status:	new
type:	Rubber kneader	port:	Shanghai, Nantong
Warranty:	1 year	Local service locations:	not any
payment terms:	L/C, T/T, Western Union, MoneyGram, Cash	After-sales service provided:	Online support, engineers are available to repair machinery overseas
After Warranty Service:	online support	Origin:	Jiangsu, China

Rubber machine

Rubber Dispersing Mixer
Rubber kneader
Kneader

Possess ISO certificate

Features of Dispersing Kneader:

1. Our dispersing kneader can provide mass production for your craft.

Excellent mixing properties ensure optimum dispersion and homogeneity. Processing is extremely stable.

2. Compression airtight kneading mixer, which provides excellent mixing quality and avoids environmental pollution.

3. Temperature control system with automatic steam heating and imported cooling.

4. Safe and easy to operate.

5. High production efficiency.

6. The high-speed mixer can also be placed in front of the kneader to form a whole production line.

thing Model			X(S)N-10X32	X(S)N-20X34	X(S)N-35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110X30
Total volume of mixing chamber		L	25	45	75	125	180	250
Mixing chamber working volume		L	10	20	35	55	75	110
Drive motor power		kilowatt	15	twenty two	55 45	75 55	110 95	185
Tilt motor power		kilowatt	1.1	1.5	2.2	2.2	4	4
slope		°	140	140	140	140	140	140
Rotor Speed (Front/Rear)		rpm	32/23.5	34/28	30/24.5	30/24.5	30/24.5	30/24.5
compressed air pressure		MPa	0.5～0.8	0.5~0.8	0.5～0.8	0.6～0.8	0.6～0.8	0.6～0.8
Compressed air capacity		m3/min	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5
Cooling water pressure (rubber mixing)		MPa	0.2～0.4	0.2～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4
Heating Vapor Pressure (Plastic Mixing)		MPa	0.5～0.8	0.5～0.8	0.5～0.8	0.5～0.8	0.5～0.8	0.5～0.8
	L	mm	2580	2630	3200	3280	3330	3930
Dimensions	watt	mm	1300	1520	1900	1930	2620	3000
	h	mm	2280	2550	2950	3070	3340	3660
weight		Kilogram	3300	4500	6500	7500	10500	14500

Applicable to: ultra-high viscosity materials are mixed, cut, and extruded under vacuum to make rubber and filler mixing and spreading faster, reduce production time and energy consumption, improve storage stability of plastic products, and increase production intensity
