banbury car tire use

Product details
place of origin; place of origin:Jiangsu, Chinapayment terms:L/C, T/T, Western Union, MoneyGram, Cash
Local service location:not anyTotal capacity(L):55 liters
Supply capacity:1500 sets per yearmodel:2L-300L
Packaging Details:Wooden box (can be customized according to user requirements and specifications)port:Nantong/Shanghai
Showroom location:not anyTypes of:Rubber kneader
brand:mlcapacity:3L-300L
Main selling points:high precisionApplicable industries:Manufacturing plants, machinery repair shops, food and beverage plants, rubber/plastics
After-sales service provided:online supportWarranty:1 year
After warranty service:online supportWeight (kg):550 kg
State of health:newBatch time (times/hour):8 times/hour
Features:kneaded rubberPower (kW):55 kW



describe:

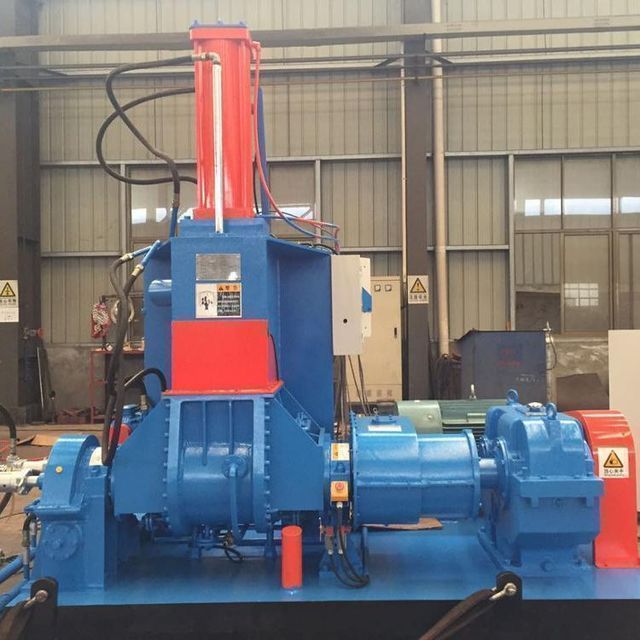

Pressure dispersing mixer for foamed plastics
The mixer is a high-tech equipment developed for the mixing of high-power or low-power foamed plastics and the foaming of rubber and plastic products.
Specifications: 3L-300L

Pressure dispersing mixer for plastic molding
feature:
1. This mixing machine is a high-tech equipment developed for the mixing of high-power or low-power foamed plastics and the foaming of rubber and plastic products.
2. The mixer has an automatic constant temperature water supply system and a plunger high and low pressure control device.
3. The mixer has the functions of time sequence control and temperature sequence control.
4. According to needs, the speed of the front rotor can be increased to above 40r/min.
5. According to user requirements, the heating method can be steam heating, electric heating or heat transfer oil heating.
6. This product is the most ideal mixing equipment for producing foam plastics such as sofa cushions and shoes...

Mixing chamber:

It consists of a "W"-shaped machine body and two side plates extruded and welded by high-quality steel plates. The side plates adopt top pressure to withstand the flow of cooling water or steam. Its inner walls are plated with hard chrome.

Thermal resistance:

There is a plug-in thermal resistance in the middle section of the bottom of the box, which is connected with the electrical system and used to detect and display the temperature.

Rotor:

It is designed for Banbury type hollow blades. The hollow is connected to the axial hole of the rotor shaft and is used as a cooling or heating channel. The top edge of the blade and the end surface of the rotor shaft are welded and ground with cobalt-based hard alloy, and then plated with hard chrome and polished.

Cooling/Heating System:

Common piping systems are used to cool or heat materials during mixing operations. With this system, cooling water or steam is delivered in three ways to the cavities of the rotor blades, the mixing chamber and the top plunger.

Tilt Mechanism:

It consists of a rotor with a brake, a cycloid reducer, a TP type worm gear, etc., which can drive the mixing chamber to tilt 140° around the front rotor.

Dust seal:

The connection between the top of the mixing chamber and the cantilever of the frame adopts an arc-shaped grooved dust-proof sealing component, which has a good and reliable sealing effect.

The end face of the rotor is sealed with end face contact, oil-free lubrication, good sealing, wear-resistant and durable.

Main drive system:

This part is composed of main motor, reducer and connecting gear. Realize the mutual rotation of the rotor and the working surface at odd speeds.

Pneumatic control system:

The pneumatic control system is controlled by XG command. The two-way cylinder raises or lowers the slider. When the mixing chamber is overloaded, the top plate can be automatically or manually raised as needed to protect the motor from overloading.

Electric control system:

The electric control system adopts imported PLC devices and electric control components, all of which are imported products or imported technology products, which improves the control reliability.

Specification

Types of

JKM-DK3

JKM-DK10

JKM-DK20

JKM-DK35

JKM-DK55

JKM-DK75

JKM-DK110

Stirring capacity

3 liters

10 liters

20 liters

35 liters

55 liters

75 liters

110 liters

main power

7.5 hp

20 hp

40 hp

75 hp

100 hp

150 hp

200 hp

tilting force

0.5 hp

1.0 hp

2.0 hp

2.0 hp

3.0 hp

5.0 hp

7.6 hp

cylinder diameter

Ø 120

Ø 160

Ø 200

Ø 250

Ø 300

Ø 350

Ø 420

slope

110°

110°

110°

110°

110°

110°

110°

Feed type

front

front

front

before and after

before and after

before and after

before and after

Before rotor speed

/ return (rpm)

39 / 30

39 / 30

39 / 30

39 / 30

39 / 30

39 / 30

39 / 30

Machine net weight(kgs)

1000

2300

4000

6500

8500

10800

14000

Machine size

(L x W x H) mm

2000×

1000 × 1900

2200×

1350 x 2150

2500×

1480×2500

2840×

1920 x 2300

3350×

2300 × 3250

2600×

2400 × 3800

3750×

2950 x 4150

notes:
Our factory can design equipment according to the specific requirements of users.
In order to update the technology quickly, the technical data will be changed without prior notice, and the correct parameters are subject to the actual product.

If you are not sure which type to choose, please call us, our professional sales engineer will recommend it for you.
