High quality K9 prism Corner Cube Retroreflector

Product details
Thickness tolerance:±0.05mm;Bevelling:0.1-0.2mm;
Material:K9;MOQ:1 piece for total station prism;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Key words:Corner Cube Retroreflector;
Port:Chengdu or as demanded;Model Number:Pyramid prism;
Place of Origin:Sichuan China;Dimension Tolerance:+0/-0.05mm;
Angle tolerance:±2''~±10'';Packaging Detail:Carton box with inner sponge foam cushion and other safety packaging for total station prism;
Material:K9/fused quartz or other crystal material;Diameter tolerance:+0/-0.05mm;
Supply Ability:10000 Piece/Pieces per Week total station prism;Surface Quality:40/20;
Product name:K9 prism Corner Cube Retroreflector;Angle Tolerance:±2''~±10'';
Flatness:1/4 Lambda;Size range:1~100mm;
Brand Name:YASI;

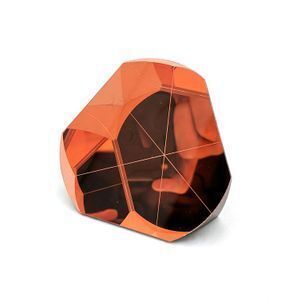

High quality K9 prism Corner Cube Retroreflector

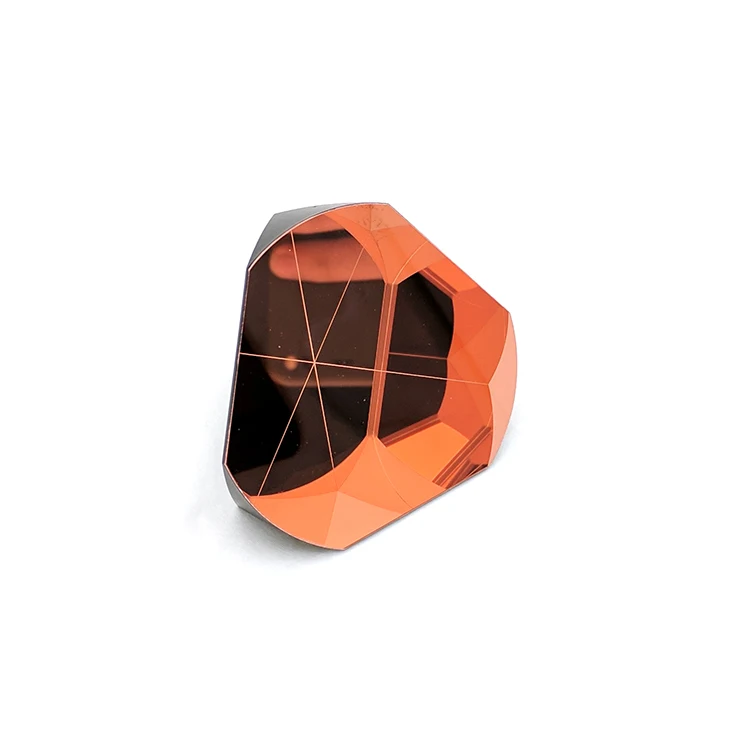

Product show

Product Description

1.Feature of corner cube prism:

  • Corner cube prism is also known as a CCR or trihedral prism manufactured from fine BK7optical glass
  • It consists of three adjacent, mutually-orthogonal plane-reflecting surfaces which form the corner of cube
  • The corner cube reflects the incident ray at a specific angle, indepedent of the prism and beam orientations
  • Reflect the incident light at 180 degrees
  • A number of coating options are available. The front face may have an AR coating applied,and the three reflecting faces may have metallic or dielectric coating or may remain uncoated.

2.Specification of corner cube prism:

Corner Cube Prism
Technical Requirements Tolerance Range
size range12.7mm, 25.4mm,64mm
diameter tolerance+0/-0.05mm
thickness tolerance±0.05mm
180 degree deviation tolerance±2''~±10''
surface quality40-20
surface precisionλ/10 per @633nm
bevelling0.1-0.2mm
materialK9/fused quartz or other crystal material
