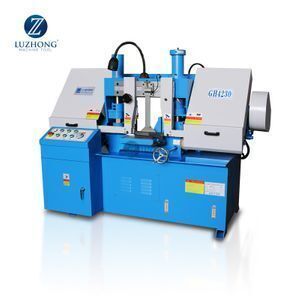

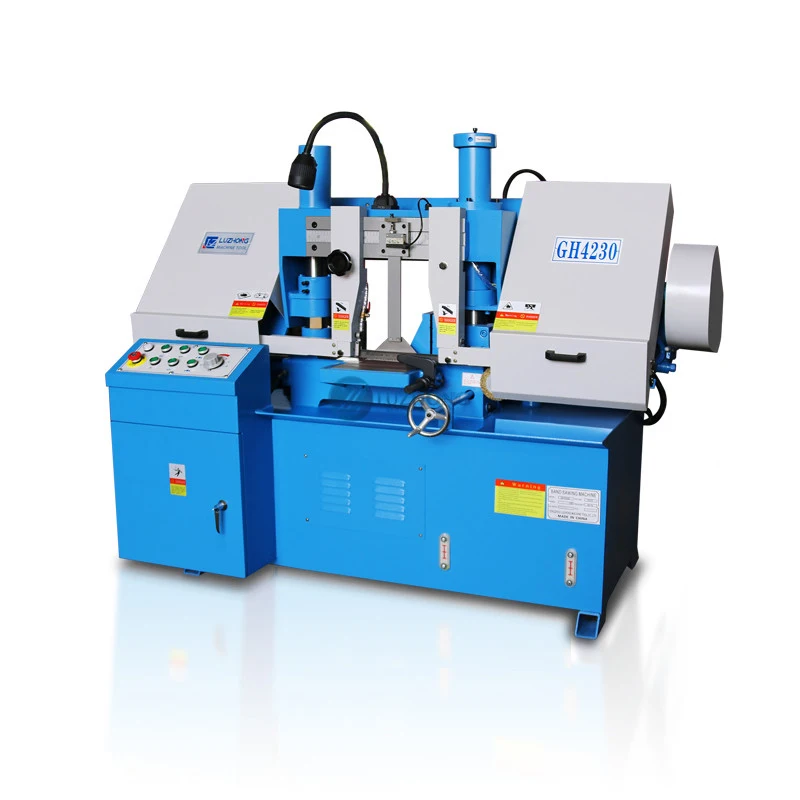

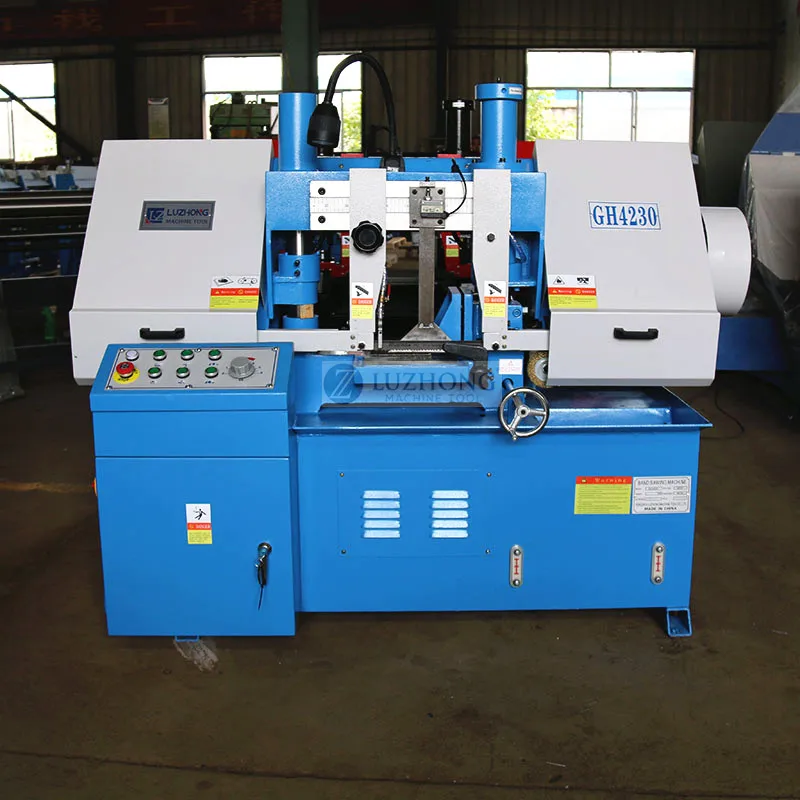

Metal belt sawing machine GH4230 (4235) band sawing machine

Click here to contact

Product details

Packaging Detail:	plywood case Metal belt sawing machine GH4230(4235)/band sawing machine;	Working clamping mode:	hydraulic pressure;
Saw blade speed:	27,45,69mm/min;	Name:	GH4230 (4235);
Main motor power:	3kW;	Weight (KG):	1000;
Cooling pump power:	0.04kW;	Hydraulic motor power:	0.75kW;
Port:	any port in China;	External form size:	186024001400mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;	Supply Ability:	200 Set/Sets per Month Metal belt sawing machine GH4230(4235)/band sawing machine;
Sawing range:	300-300*300mm;	Power (kW):	3;
Key Selling Points:	Competitive Price;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant;	After-sales Service Provided:	Video technical support,Online support;
Belt saw blade size:	3505340.9mm;

Metal belt sawing machine GH4230(4235)/band sawing machine

Product Description

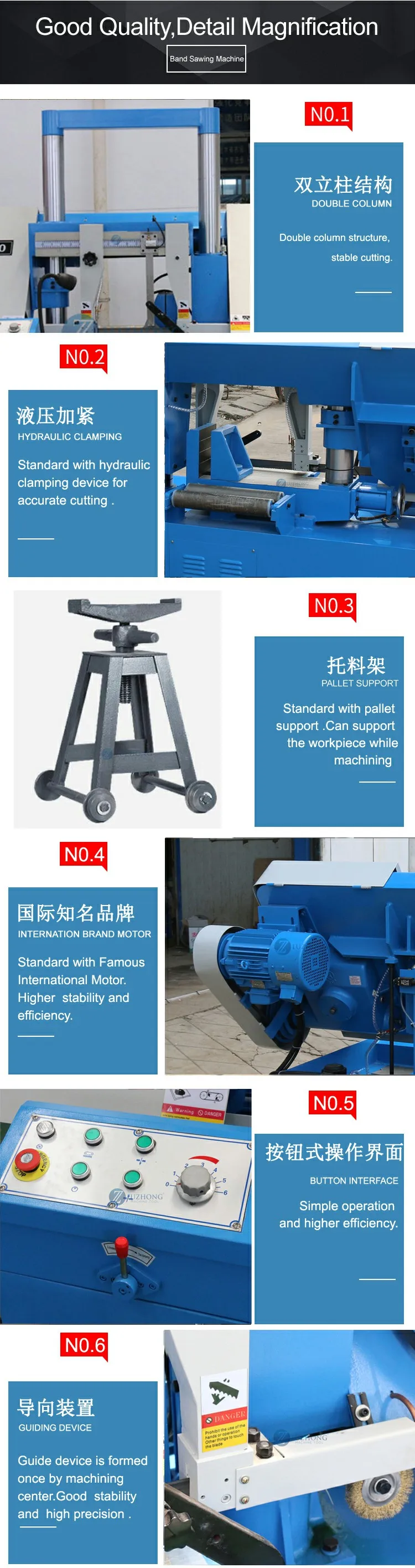

The main performance characteristics:

1.Button type control panel, sawing mode change flexible, manual and automatic combination;

2.PLC controller, complete automatic sawing process, feeding length 0-500mm;

3.Double upright column structure, vertical lift, high stability;

4.Cutting speed hydraulic control, stepless regulation speed,

5.Stable performance, high efficiency, suitable for bulk material sawing.

Application:

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Product main technical parameters:
