Siemens cnc lathe price CK6136 CK6140 CK6150 metal torno price cnc lathe machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $9680.00 / 1 - 9 sets
$9190.00 / 10 - 19 sets
$8290.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Structure:	Flat Bed Lathe;	Condition:	New;
Warranty of core components:	13 months;	Max. Turned Length (mm):	750;
Max. Length of Workpiece (mm):	750 mm;	Core Components:	Bearing,Engine;
Spindle Bore(mm):	52 mm;	Brand Name:	Luzhong Machine Tool;
Travel (Z Axis)(mm):	750 mm;	Voltage:	380V/50HZ;
Place of Origin:	Shandong, China;	Machinery Test Report:	Provided;
CNC Control System:	GSK;	Marketing Type:	New Product 2020;
Spindle hole diamete:	52mm;	Spindle tap:	MT6;
Packaging Detail:	Machine model : Siemens cnc lathe price CK6136 CK6140 metal torno price cnc lathe machine Package: plywood case within metal bottom;	Keyword:	CK6140;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;	Video outgoing-inspection:	Provided;
Certification:	CE;	Port:	Any port in China;
Spindle speeds:	L:100-500,H:200~1800;	Supply Ability:	100 Sets per Month Siemens cnc lathe CK6140 metal torno price cnc lathe machine;
Tool size:	25X25mm;	Showroom Location:	Indonesia,India,UAE,None;
Warranty:	13 months;	No. of Spindles:	Single;
Spindle Motor Power(kW):	4;	Machining Capacity:	Medium Duty;
Positioning Accuracy (mm):	0.01 mm;	Center distance:	750/1000/1500mm;
Key Selling Points:	Competitive Price;	Dia. of tailstock sleeve:	65mm;
Width of bed (mm):	360 mm;	Max. Spindle Speed (r.p.m):	1800 r.p.m;
Name:	Siemens cnc lathe price CK6140 metal torno price cnc lathe machine;	Travel (X Axis)(mm):	300 mm;
Tool Post Stations:	8,6,4;	Applicable Industries:	Manufacturing Plant,Factory;
X axis travel:	230mm;	Model Number:	CK6140/750;
Number of Axes:	2;	Type:	Horizontal;
Weight (KG):	1800;	Dimension(LWH):	2500/300015001650mm;

Product Description

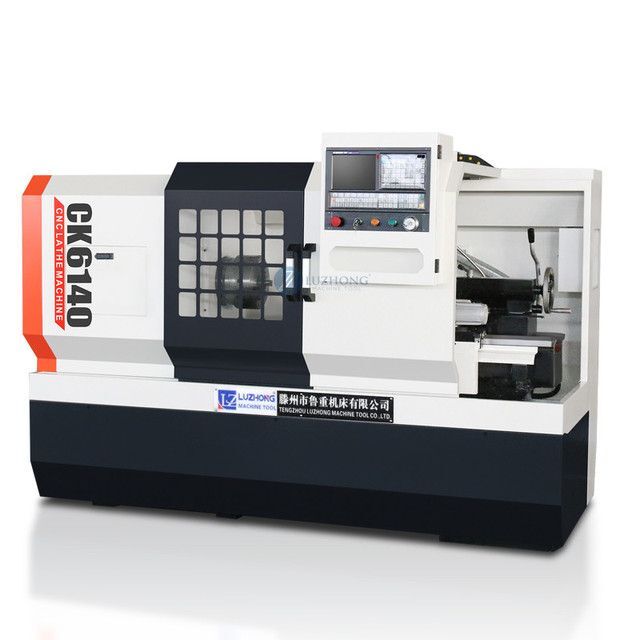

Siemens cnc lathe price CK6140 metal torno price cnc lathe machine

SPECIFICATIONS	Units	CK6136	CK6140	CK6150
Swing over bed	mm	360	400	500
Swing over cross slide	mm	200	220	280
Distance between centers	mm	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)	52(Optional 80)	52(Optional 80)
Spindle bore taper	-	MT6	MT6	MT6
Spindle nose type	-	C6	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25	25 x 25
X axis travel	mm	200	230	280
Z axis travel	mm	750/1000/1500/2000	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000	6000
Z axis rapid traverse	mm/min	10000	10000	10000
Tailstock quill diameter	mm	75	75	75
Tailstock quill taper	-	MT5	MT5	MT5
Tailstock quill travel	mm	140	140	140
Main spindle motor	kw	4	5.5	5.5
Coolant pump motor	kw	0.09	0.09	0.09
Weight for 750	kg	1600	1700	1800
Weight for 1000	kg	1700	1800	1900
Weight for 1500	kg	1800	1900	2000
Weight for 2000	kg	1900	2000	2100
Dimension for 750	mm	2200x1600x1650	2200x1650x1700	2200x1700x1750
Dimension for 1000	mm	2500x1600x1650	2500x1650x1700	2500x1700x1750
Dimension for 1500	mm	3000x1600x1650	3000x1650x1700	3000x1700x1750
Dimension for 2000	mm	3500x1600x1650	3500x1650x1700	3500x1700x1750

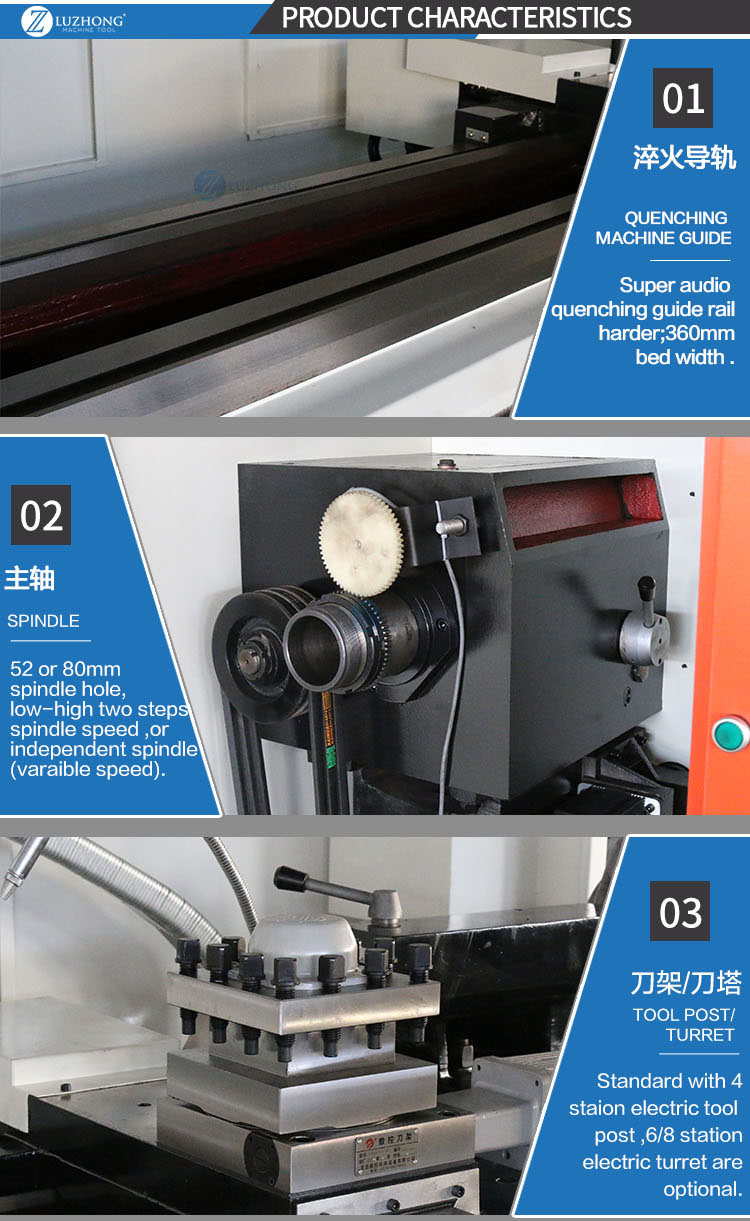

Product description:
1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

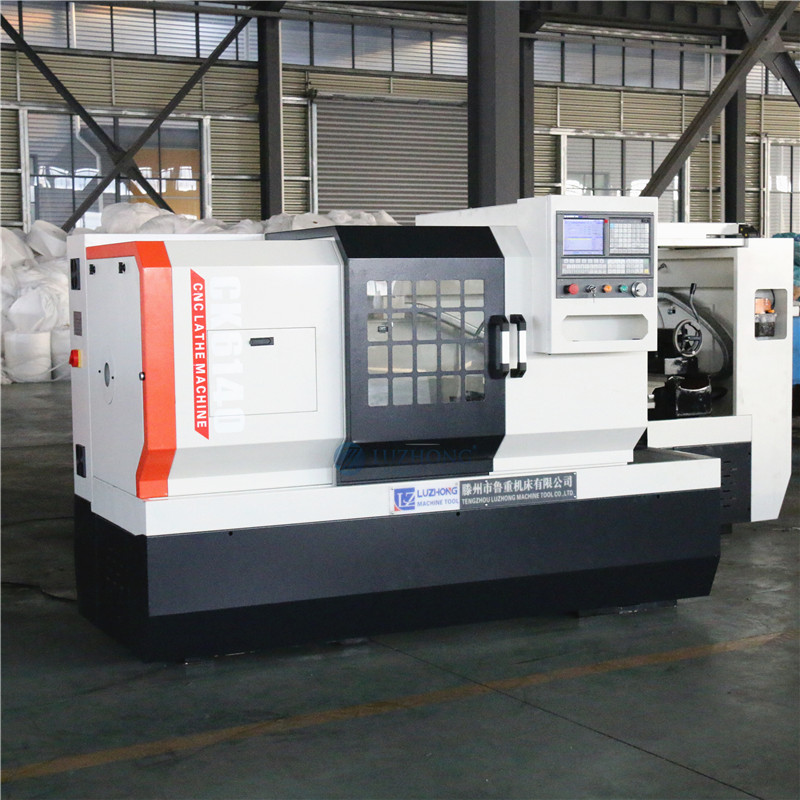

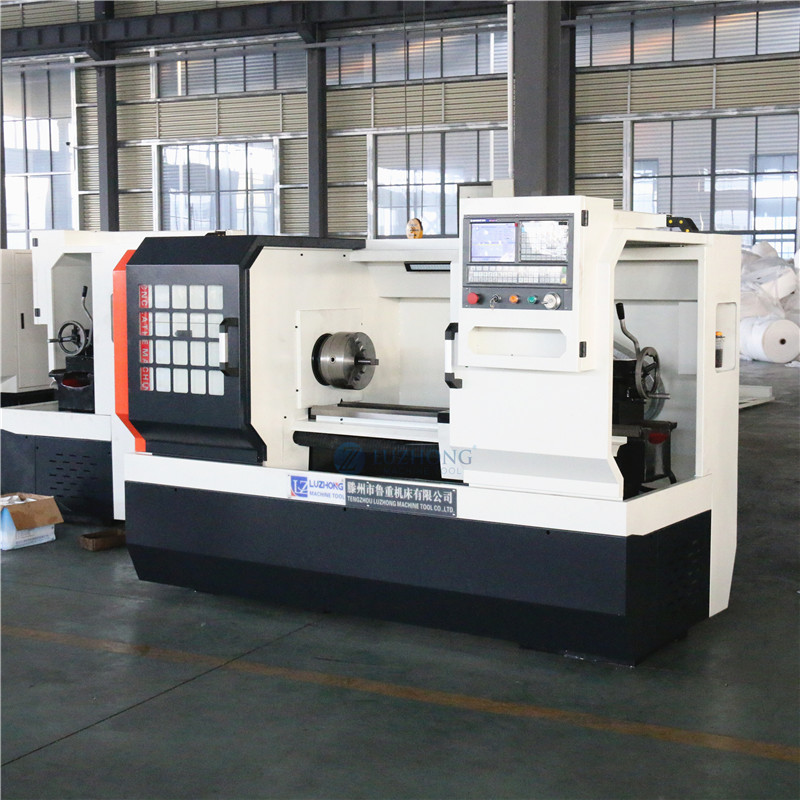

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
