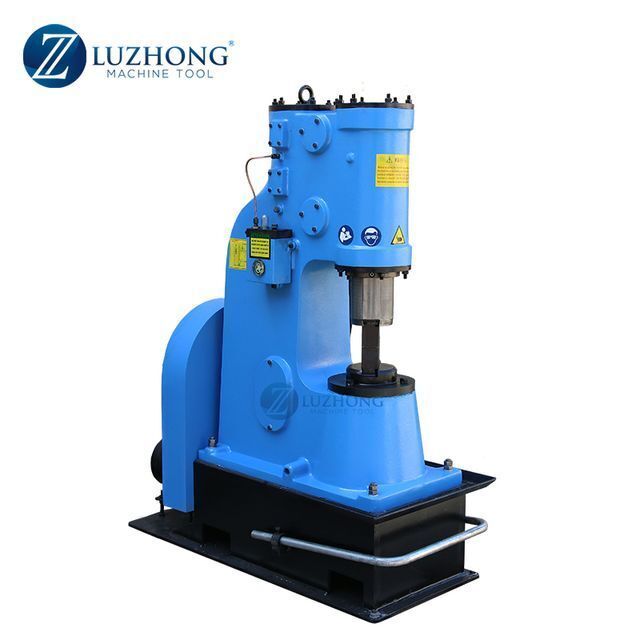

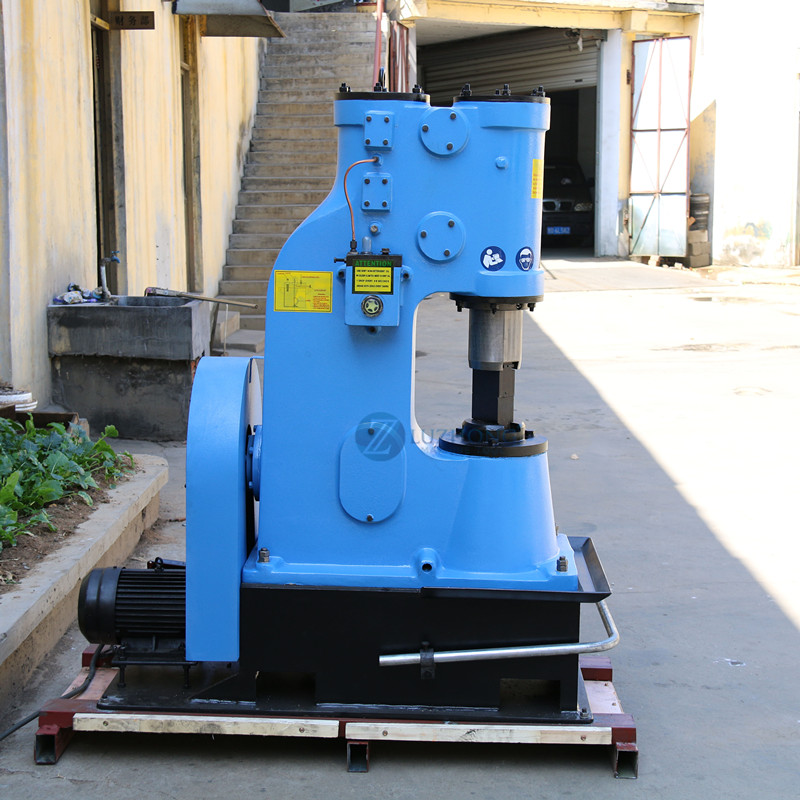

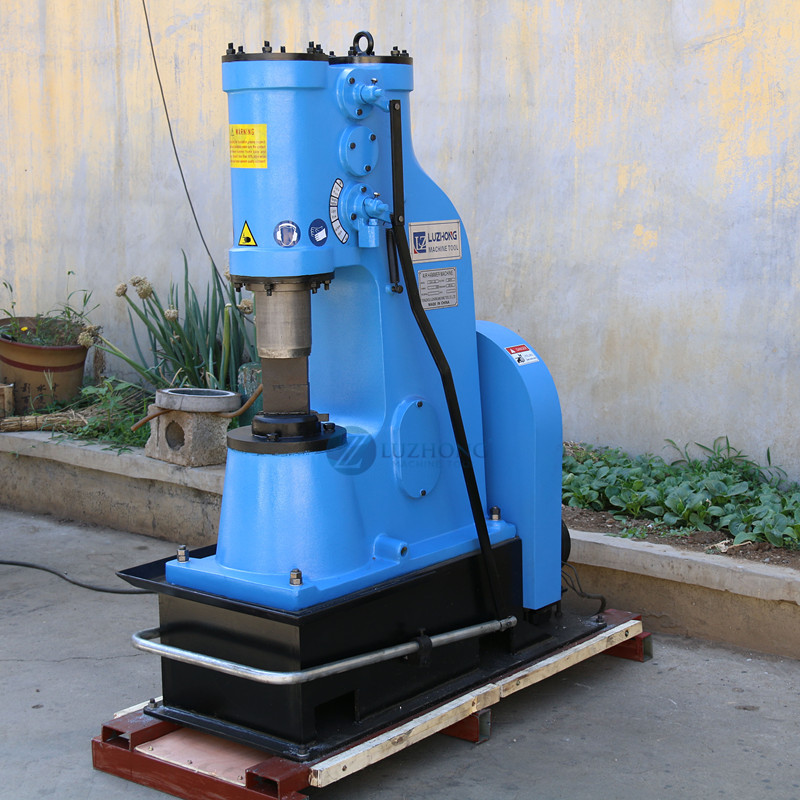

Pneumatic Power Forging Hammer C41-16 C41-20 C41-25KG Air Hammer

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $3000.00 / 1 - 1 sets
$2800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 Year;	Showroom Location:	Viet Nam,India,UAE;
Packaging Detail:	Plywood case Penumatic Power Forging Hammer C41-16 C41-20 C41-25KG Air Hammer;	Blow energy:	0.18kj 0.22kj 0.27kj;
Machinery Test Report:	Provided;	Voltage:	380v;
Video outgoing-inspection:	Provided;	Marketing Type:	New Product;
Name:	Pneumatic Power Forging Hammer C41-16 C41-20 C41-25KG Air Hammer;	Warranty:	1 Year;
Brand Name:	Luzhong Machine;	Power:	1.5kw 2.2KW 2.2KW;
Dimension(LWH):	585x390x950mm;	Port:	Any port in China;
Condition:	New;	After Warranty Service:	Video technical support;
Place of Origin:	Shandong, China;	Applicable Industries:	Manufacturing Plant;
Supply Ability:	30 Sets per Month Penumatic Power Forging Hammer C41-16 C41-20 C41-25KG Air Hammer;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;
Machine Type:	Air hammer;	Core Components:	Motor;
Key Selling Points:	Easy to Operate;	Weight (KG):	1500;

Product Description

Specification

Parameter / project / model	Units	C41-25kg
Weight of falling parts	kg	25
Max.hit engergy	K j	0.27
Height of working area	mm	240
Hit number	min-1	250
Anvil block size	mm	100x50
Max. square steel can be forged	mm	40x40
Max.round steel can be forged(diameter)	mm	Ø45
Rate power	K w	Single-phase 3/220V, Three-phase 2.2/380V
Motor speed	r. p. m	1440
Weight of base plate	kg	80
Total weight	kg	640
Overall dimension	mm	1150x510x1400

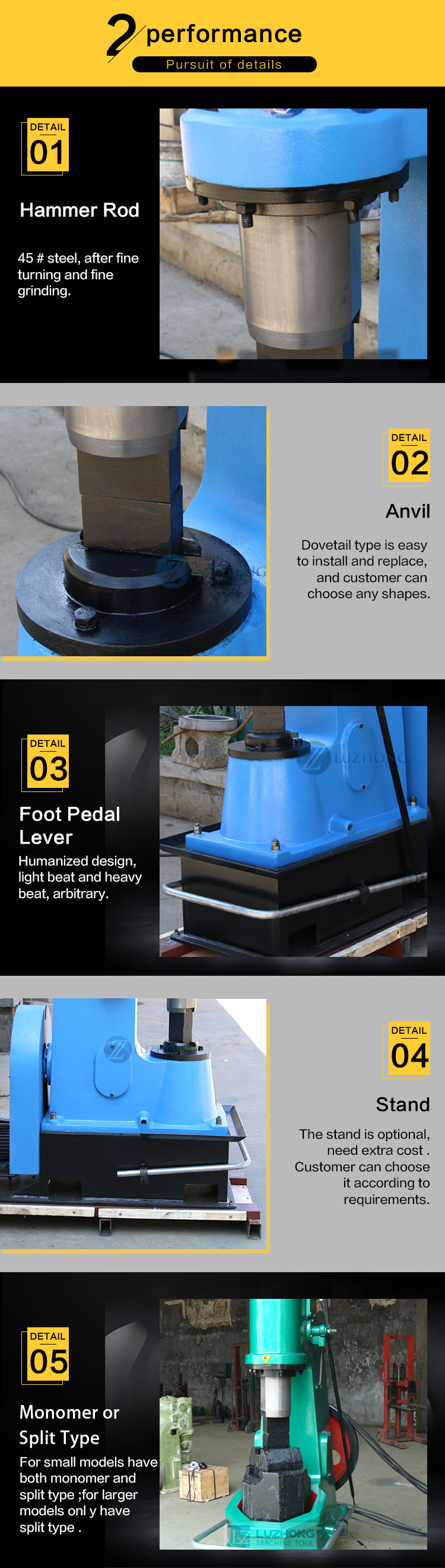

Details Display

Recommend Products

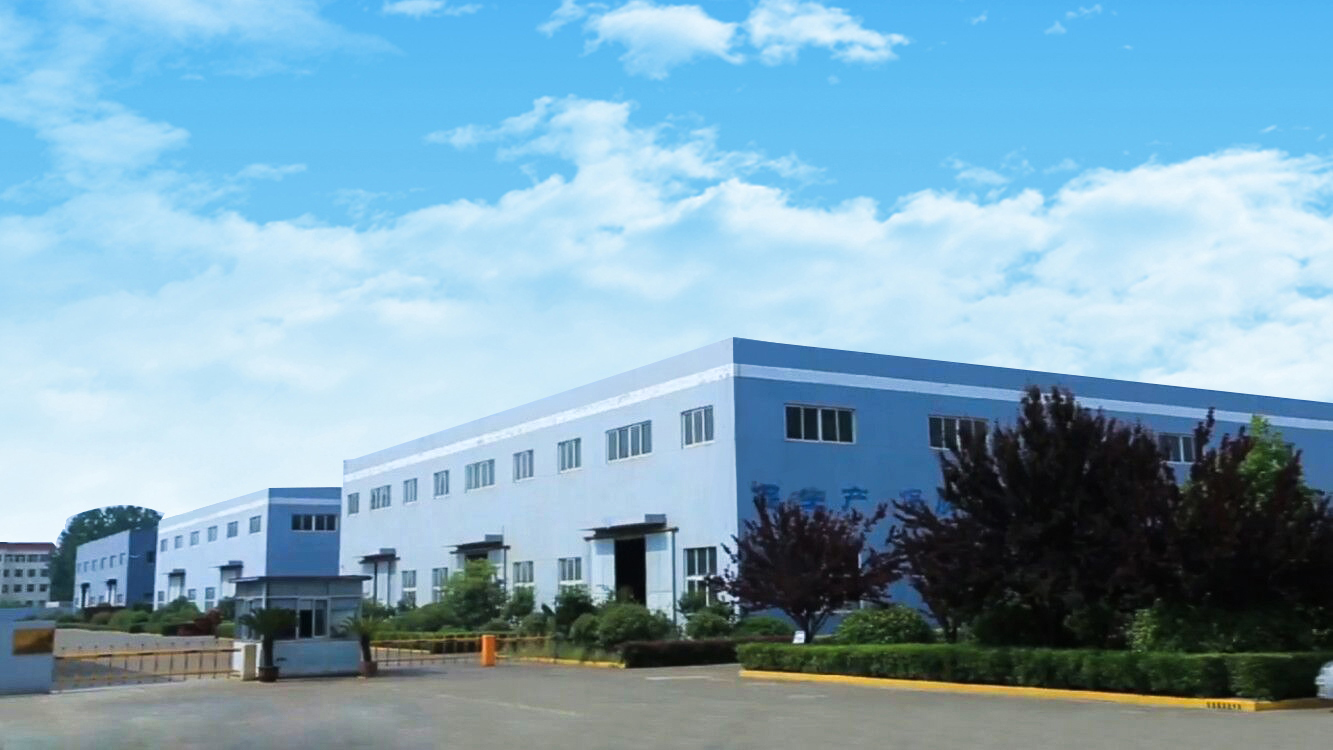

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
