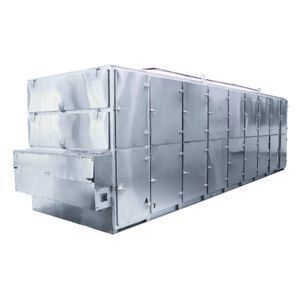

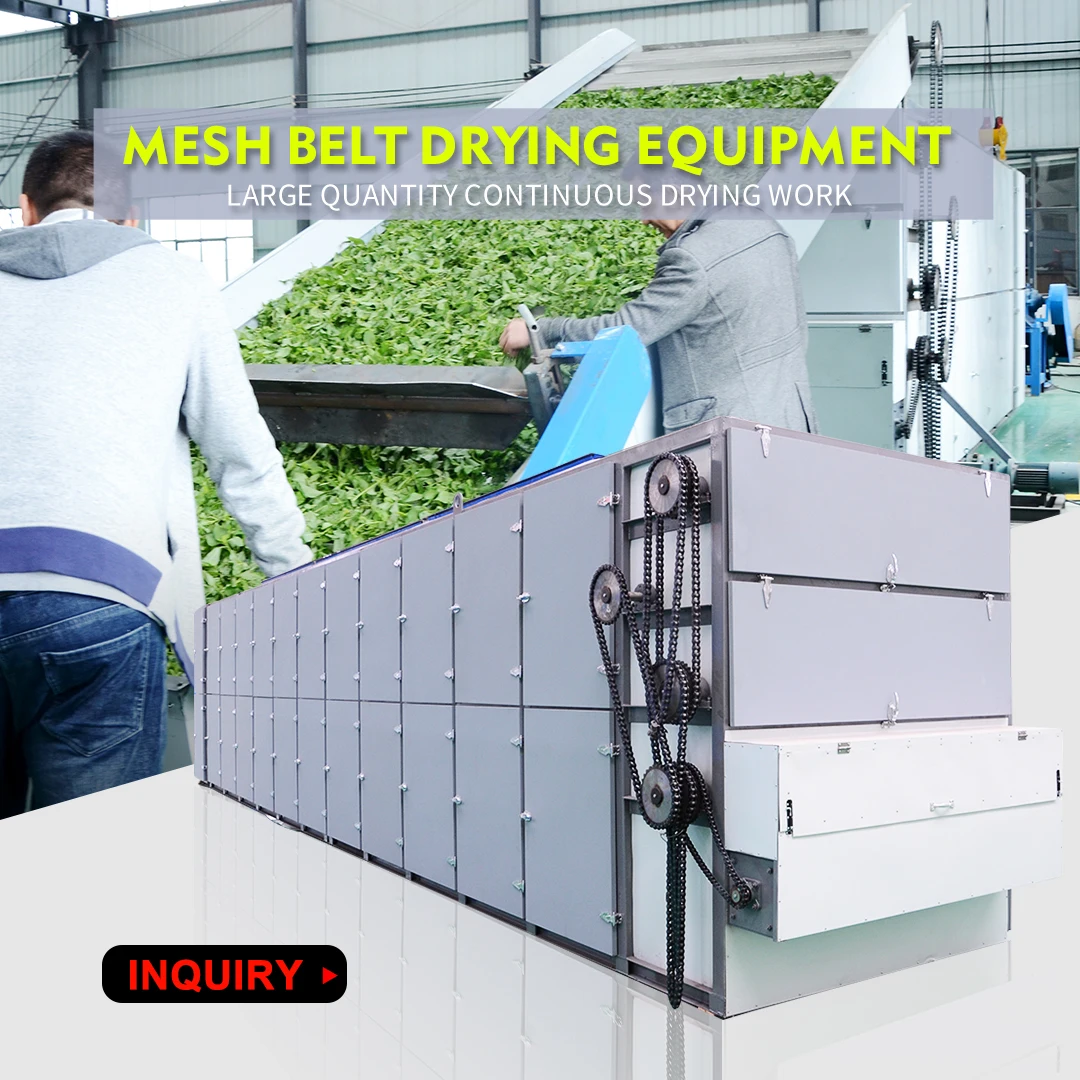

Widely used in USA market successful working sites hemp mesh belt dryer

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow;Capacity:100-500kg/h;
hemp mesh belt dryer width:2000mm;Name:USA market successful working sites hemp mesh belt dryer;
Fuel:Gas,diesel,wood chips,propane,electricity etc.;Purpose:Extract CBD,Oil;
Port:Qingdao port, China;Certification:CE,ISO;
Condition:New;After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
hemp mesh belt dryer length:8000mm,10000mm,12000mm;Item:hemp mesh belt dryer;
Place of Origin:Henan China;Packaging Detail:hemp mesh belt dryer loading into container with 40GP,40HQ, small parts packed by woooden box.;
Brand Name:Guoxin;Material:Hemp leaves,flower etc.;
Warranty:1 Year;Application:Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
Supply Ability:20 Set/Sets per Month hemp mesh belt dryer have storage;Type:Drying machine;
Power(W):22kw;Weight:10500kg;
Drying temperature:0-120 degree centigrade;Feature:Automatic and continuous drying machine;
Voltage:Customized;Dimension(L*W*H):10000X2000X2500mm;

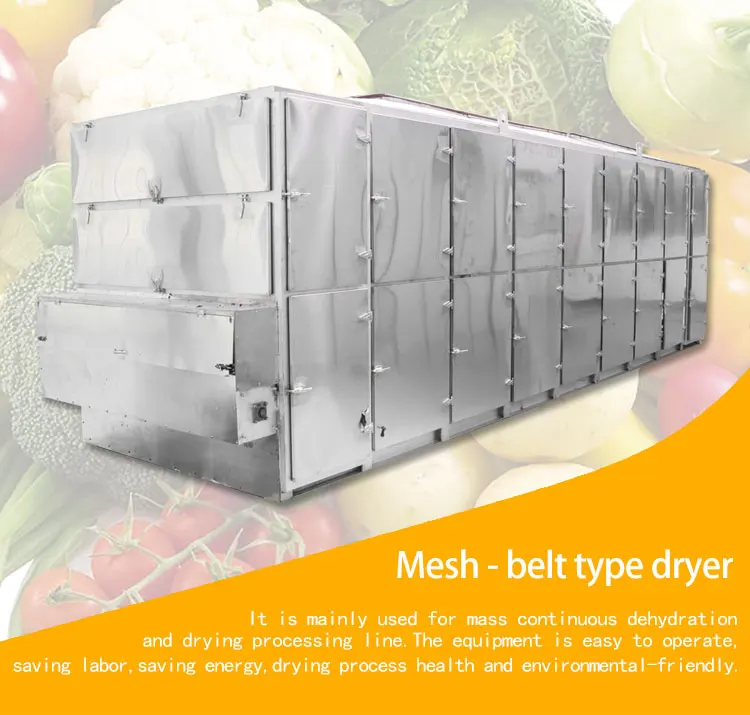

Widely used in USA market successful working sites hemp mesh belt dryer



Remarks:Our factory is professional in hemp mesh belt dryer, this is patent products in our factory. In 2018, we have exported more than 30 sets hemp mesh belt dryer to the united states and Canada.

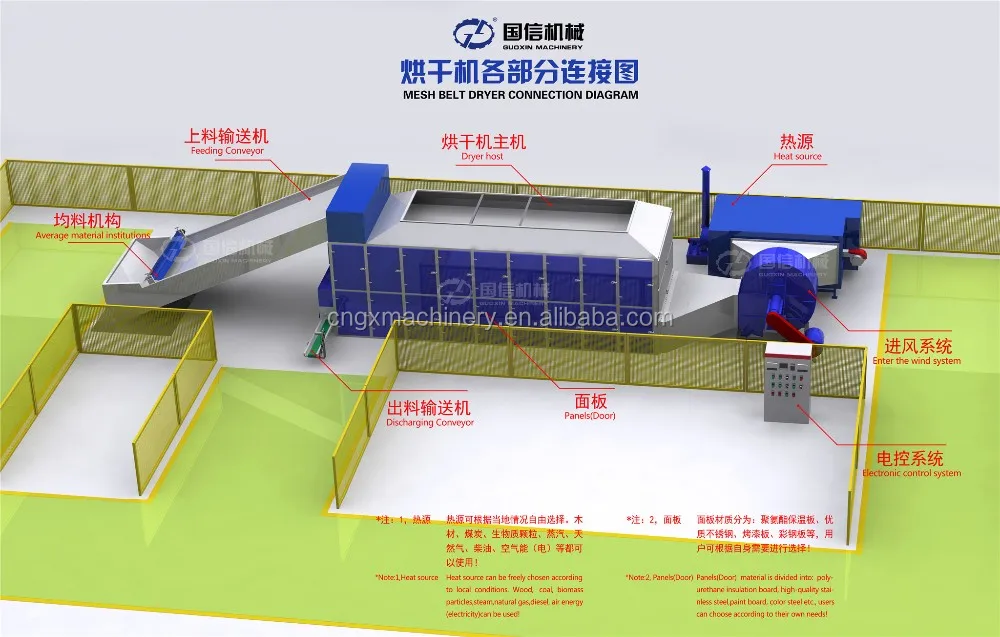

The flow chart of cbd oil hemp mesh belt dryer:



Including: Feeding conveyor, discharge conveyor, drying box, fan, control panel, heat exchange furnace,burner,connection pipes.





The purpose after drying:

Mostly customers after drying is used to extract the oil and cbd inside. it have high medical value.

Our cbd oil hemp mesh belt dryer is most popular in the united state,Canada, bulgaria etc.

Normally the input moisture: 80-85%, the output moisture: 8-10%.

The fuel: gas,diesel,wood chips,electricity,steam.



The working principle about the hemp mesh belt dryer:

Hemp flower and hemp leaf are transported by the feeding conveyor to the inside of the dryer. The material passes from the first layer to the last layer via the conveyor belt, and the dried material is conveyed by the discharge conveyor. The belt dryer is using hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the dryer.

The drying machine not only according to heat to dry, but also according to strong air. So it can increase the drying efficiency and drying time.



hemp mesh belt dryer technical parameters:

Model
GX-2080
GX-2090
GX-2010
GX-2012
Layer
4 layers,  5 layers, 6layers
Material thickness
10-70mm
Drying temperature
40-120℃
Drying time
0.5-5hours
Moisture reduce
75% to 8%  (Customized)
Main machine motor
1.5kw
1.5kw
2.2kw
3kw
Hot air draft fan
15kw
15kw
22kw
22kw
Discharing conveyor
B500(0.12kw)
B500(0.12kw)
B500(0.12kw)
B500(0.12kw)
The above parameters are for reference, we can according to customer required provide best solution.

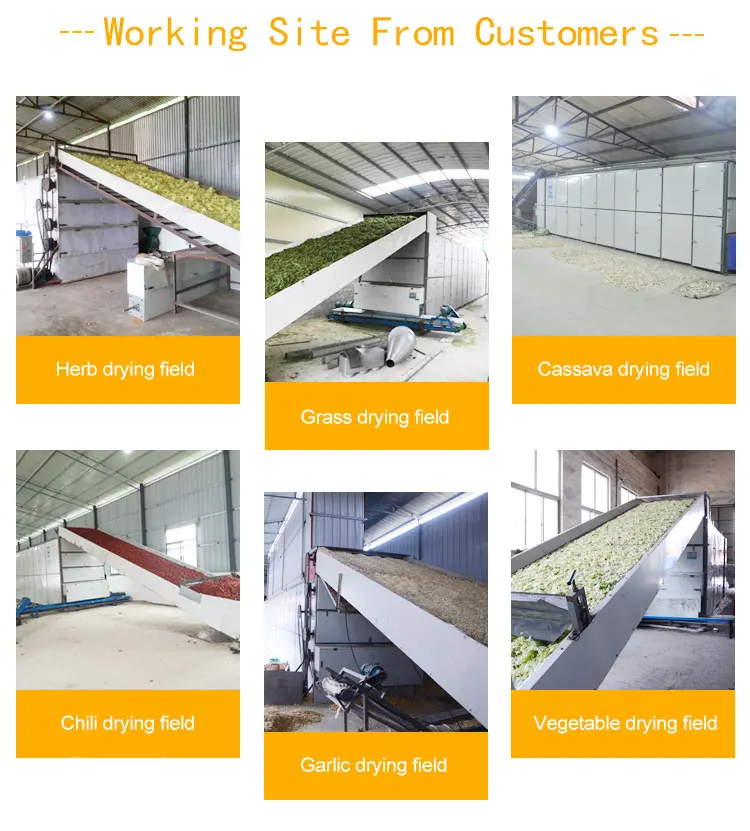

The hemp mesh belt dryer working sites:

The customers visited our factory to check hemp mesh belt dryer:



If you are interested in our hemp mesh belt dryer, please contact with us.
