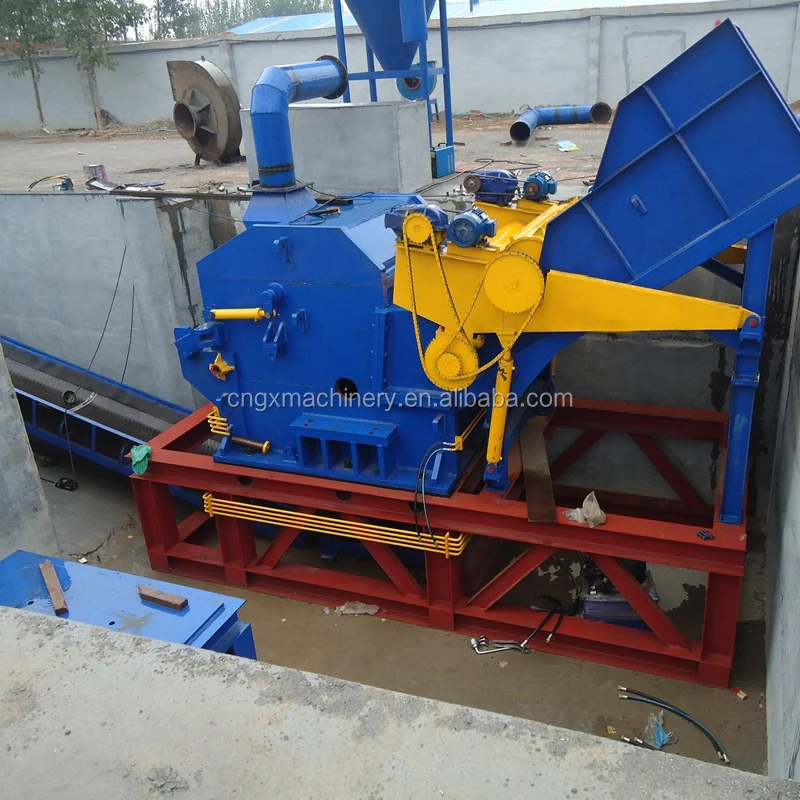

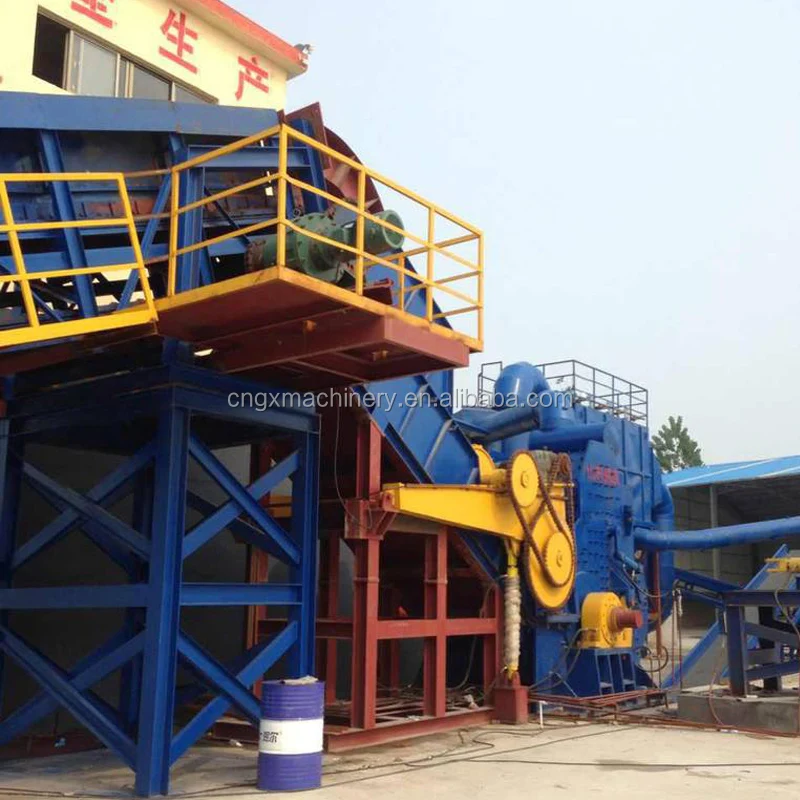

Recycling Metal for Metallurgy Metal Chip Crusher Finished Small Metal Ball Successful Working Site

Supplier: Gongyi Guoxin Machinery Factory (General Partnership)
Region: Henan, China
Contact: Ms Karry Zhang
Price: $36000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Waste Metal, Car;	Name:	Metal Chip Crusher;
Metal Chip Crusher Capacity:	3-5 tons/hour;	Metal Chip Crusher Color:	Blue, Green, customized;
Material / Metal Processed:	Stainless Steel,Brass / Copper,ALLOY,Carbon Steel,Aluminum;	Blade material:	Alloy;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Operate:	Fully Automatic;	Weight:	38 tons;
Port:	Qingdao Port / Tianjin Port / Shanghai Port;	Power (kW):	180kw;
Supply Ability:	10 Set/Sets per Month;	Metal Chip Crusher Certification:	CE ISO;
Keyword:	Metal Chip Crusher;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Online support,Video technical support;
Place of Origin:	Henan China;	Voltage:	customized based on your voltage;
Brand Name:	Guoxin;	Metal Chip Crusher line Total Motor:	254 kw;
Packaging Detail:	Metal Chip Crusher In bulk Loading to 40HQ Container or Open top container;

Metal Chip Crusher Applicable material for scrap Metal Chip Crusher: tinplate, thin material, car shell, scrap metal, engine housing, waste casting, metal pressing block, scrap car ,metal block,waste household appliances,aluminum alloy, waste aluminum casting,engine casting , zip-top can, steel drums, color steel tile and etc.

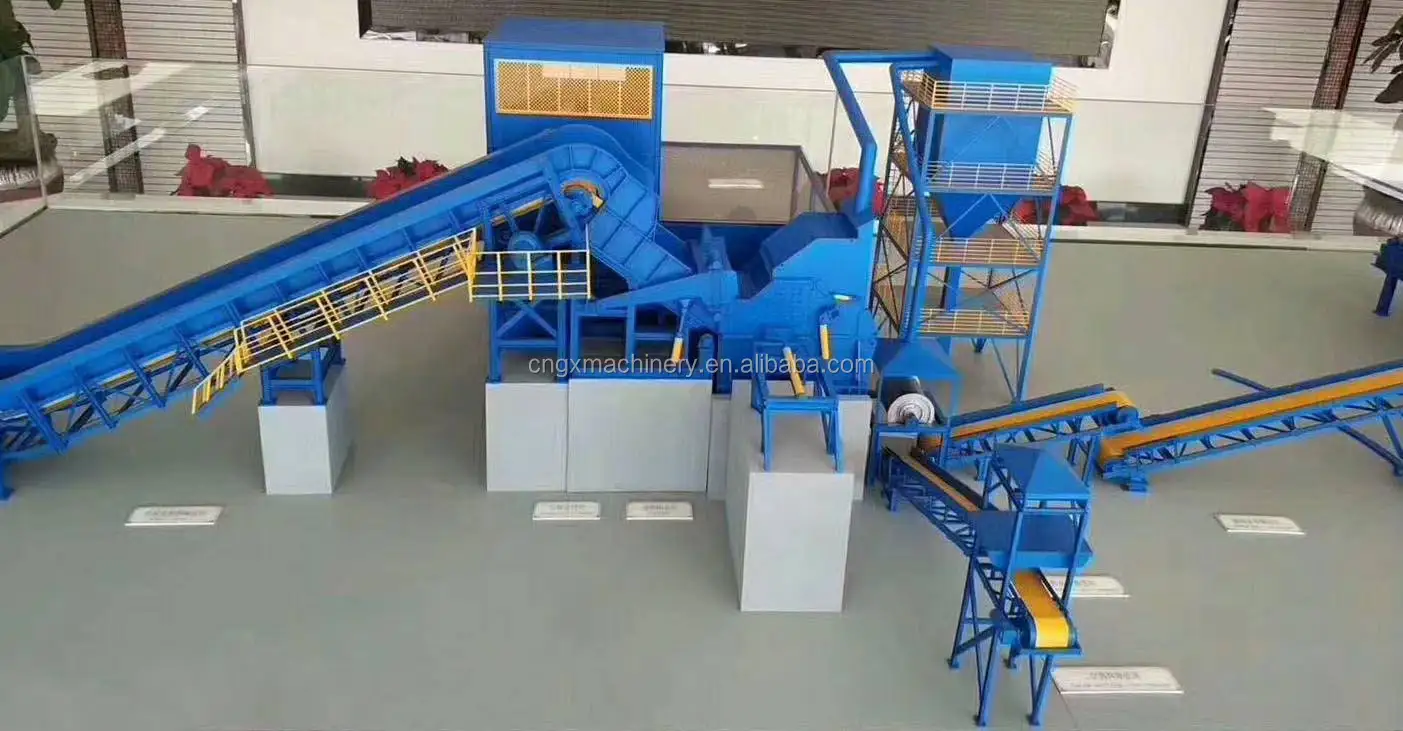

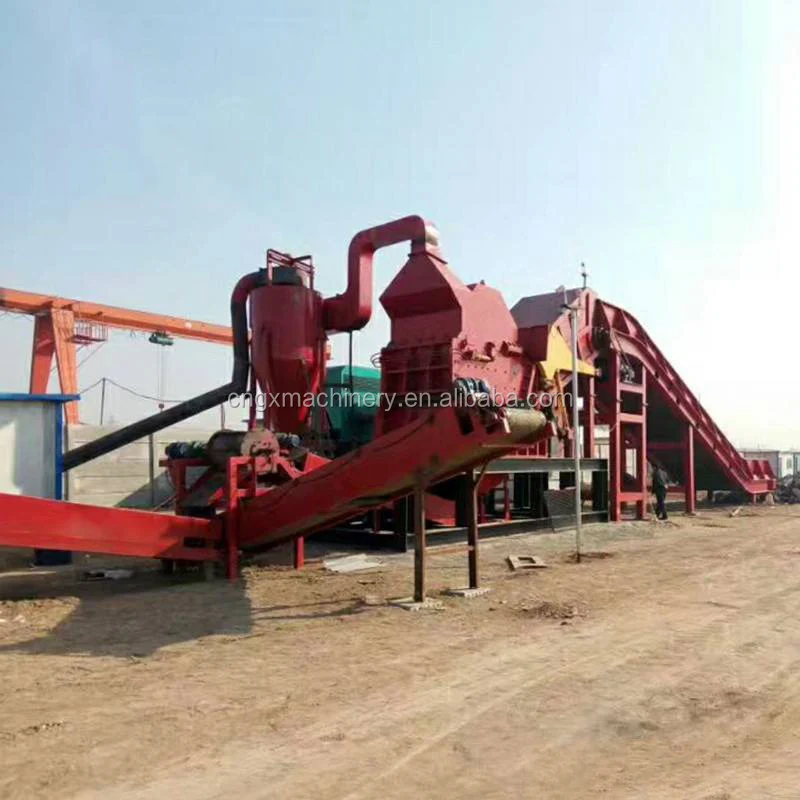

Metal Chip Crusher Production Line Including equipment: Feeding conveyor--Host Crusher Machine--Discharge conveyors(Seeding Iron Conveyor/)--Cyclone Dust Collecting System--Magnetic Separation System--Impurity Conveyor & Control System & Spraying System

Metal Chip Crusher Characteristic

1. High Efficiency for Crushing

Metal Chip Crusher Adopting hydraulic feeding method and ring hammer & swing hammer combination hammerheads, Efficiency improved 5-15%

2. Good finished Metal Partical

Metal Chip Crusher Using the unique roller rubbing process,it can remove the surface paint / feculence,to make the scrap metal into pellet shape with high density,enhance the broken material level.

3. Metal Chip Crusher Stable Operation Capability

Assembling security door,if other materials which can't be broken go into the crushing chamber, stoping running and operator could open security door to remove it, thus avoiding machine fault.

4. Intelligent Control System

Metal Chip Crusher Intelligent Production Lines could saving time and labour, it can sure the manufacturing lines running more stable and safe.

Metal Chip CrusherModel	Power (KW)	Rotation rate (r/min)	Production capacity (Kg/h)	Dimension(mm)	Weight(T)
FGP-600	18.5-22	2100	600-800	20007002000	1.5
FGP-800	30-37	1600	800-1200	22009002200	3.7
FGP-1000	45-55	1250	1200-1500	380014003000	7.6
FGP-1400	90-150	860	4000-5000	400015002800	11.5
FGP-1600	110-180	750	6000-10000	480020003200	16.6
FGP-2000	220-320	650	8000-12000	500022003400	28.6
