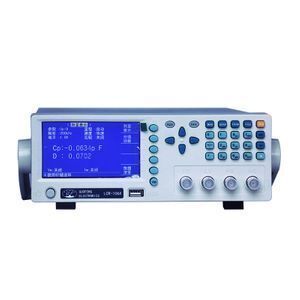

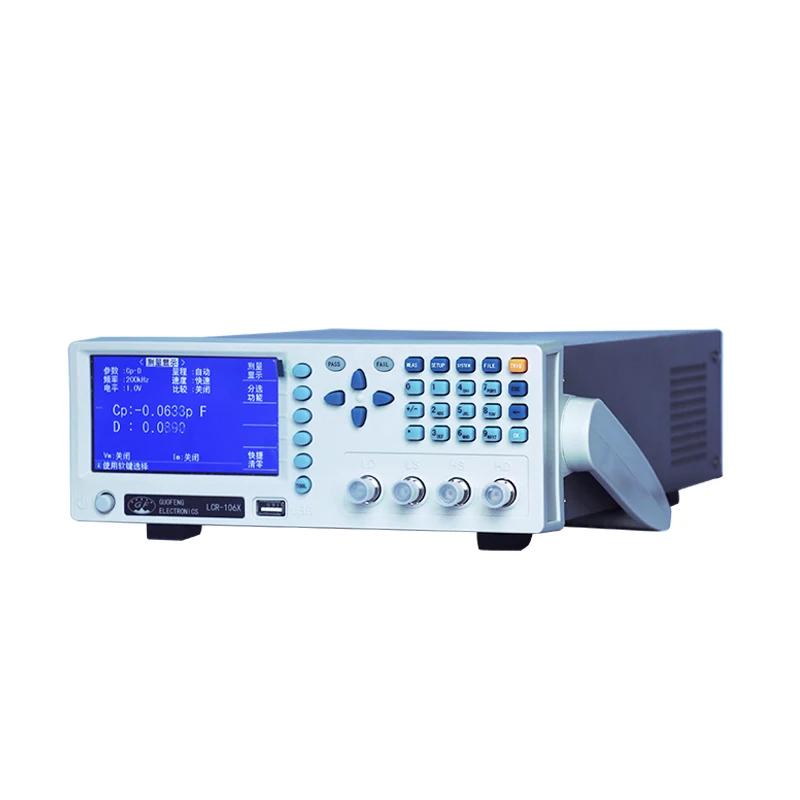

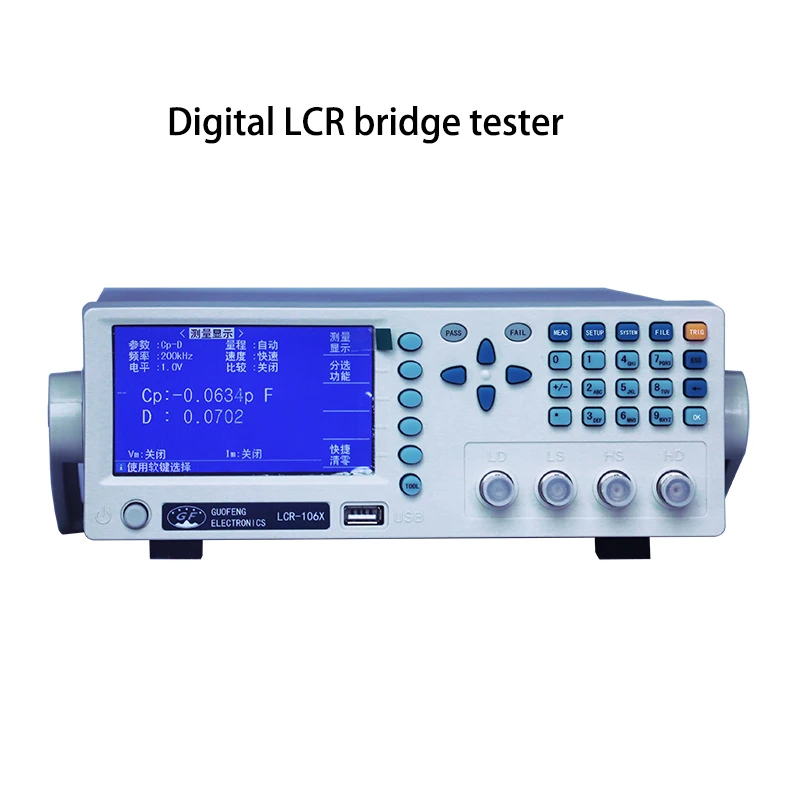

Multifunction precision 200KHz Digital LCR bridge tester LCR Meter LCD display Capacitor inductor tester

Product details
size:265mmx100mmx340mm;Place of Origin:Guangdong China;
Port:FOB ShenZhen;Brand Name:IVYTECH;
Weight:3.5KG;Model Number:LCR106X;
Payment Terms:T/T,Western Union;Packaging Detail:Packaging Details: Netural packing/Customers packing are acceptable;
Supply Ability:20000 Piece/Pieces per Month;

Multifunction precision 200KHz Digital LCR bridge tester LCR Meter LCD display Capacitor inductor tester



* The new 32-bit core processor, the data is completely comparable to the foreign first-class equipment



   * 4.3 inch true color TFT display



   * 30Ω, 100Ω two different signal source output impedance



   * Built-in comparator, 5-speed sorting flexible qualified and bad alarm mode



   * Shutdown automatically saves test conditions, user-friendly operation



   * More than 100 sets of internal configuration files, U disk extended multiple sets of test files to save or call



   * Simplified Chinese, English optional



   * Upgrade and update of instrument software version via U disk



   * U disk copy screen function, test data save function, can support format FAT16, FAT32 file system



   * Standard RS232C, HANDLER, USB HOST; optional: USB DEVICE\ headphone jack, pedal interface, GPIB





Test parameters

L,C, R, | Z|, D, Q,X,ESR,θ(Deg),θ(Rad)

Test frequency

40Hz,50Hz,60Hz,75Hz,100Hz,120Hz,150Hz,200Hz,250Hz,300Hz,400Hz,500Hz,600Hz,750Hz,800Hz,1kHz,1.5kHz,

2kHz,2.5kHz,3kHz,4kHz,5kHz,6kHz,7.5kHz,10kHz,12kHz,15kHz,15.7kHz,16.2kHz,20kHz,25kHz,30kHz,40kHz,50kHz,

60kHz,66.6kHz,75kHz,100kHz,120kHz,150kHz,200kHz,  Total 41 point

Basic measurement accuracy

0.1%

Test signal level

0.1V,0.3V,0.5V,1V

Equivalent Circuit

Series Parallel

Mathematical function

Percent deviation

Range mode

Automatic, hold, manual selection

Trigger mode

Internal, manual, external, bus

Measuring speed (≥1kHz)

Fast: 30 times/second fastest, medium speed: 10 times/second,



Slow speed: 3 times / sec

Average number of times

1-255

Delay time

0—6s, stepped in 1ms

Calibration function

Open / short circuit / fast clear

Display method

Direct reading, Δ%, V/I (measured voltage/current monitoring)

monitor

Main and auxiliary parameters 5-digit display, 4.3-inch true color LCD display

Output impedance

30 Ω, 100Ω selectable

Display range

|Z|, R,X,ESR

0.1mΩ — 99.999MΩ

C

0.01 pF — 9.9999F

L

0.01 µH — 99999 H

D

0.0001 — 9.9999

Q

0.0001 — 9999.9

θ(Deg)

-179.99° — 179.99°

θ(Rad)

-3.1416 — 3.1416

Δ%

-999.99% — 999.99%

Comparator function

5-speed sorting function

Memory

More than 100 sets of internal instrument settings for storage/call, U disk expansion of more than 500 groups

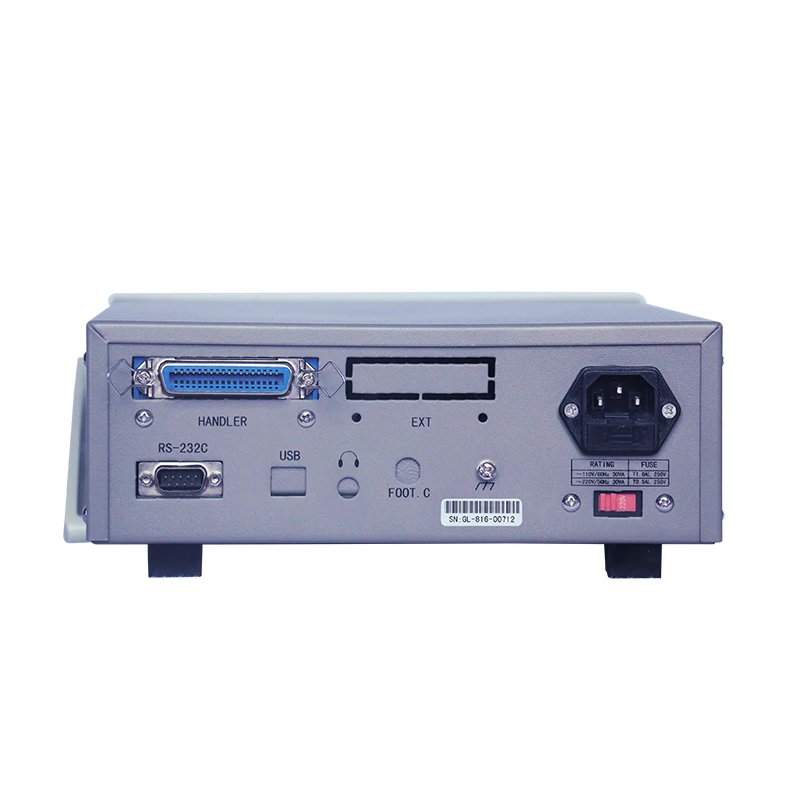

interface

Standard RS232C, HANDLER, USB HOST



Optional USB DEVICE, headphone jack, pedal interface, GPIB

size

265mm (width) * 100mm (height) * 340mm (long)


















1. How could I buy products if there is no price on the website?

Buyers need to send required product details via e-mail. Then a reasonable quotation as request would be provided.



2. How long could I get reply of my enquiry?

Buyers will get a reply within 12 hours. China working hours 9:30-18:30 Monday-Friday online service to help buyers solving problem..



3. How is the after sales service?

Buyers updated market information regularly.



4. How about the Quality?

We have the best professional and experienced engineer and strict QA and QC syste.Repair rate under 0.1%-0.2%.



5. Which courier company do you use?

We use EMS, DHL, UPS, DPEX etc. Buyer can choose the desired shipping method when ordering.



6. I haven’t received my goods yet some days later after my payment.

You can check the logistics status by the tracking number we informed you in the email or in your account on the above website of express company to see where the parcel is, or you can contact us.
