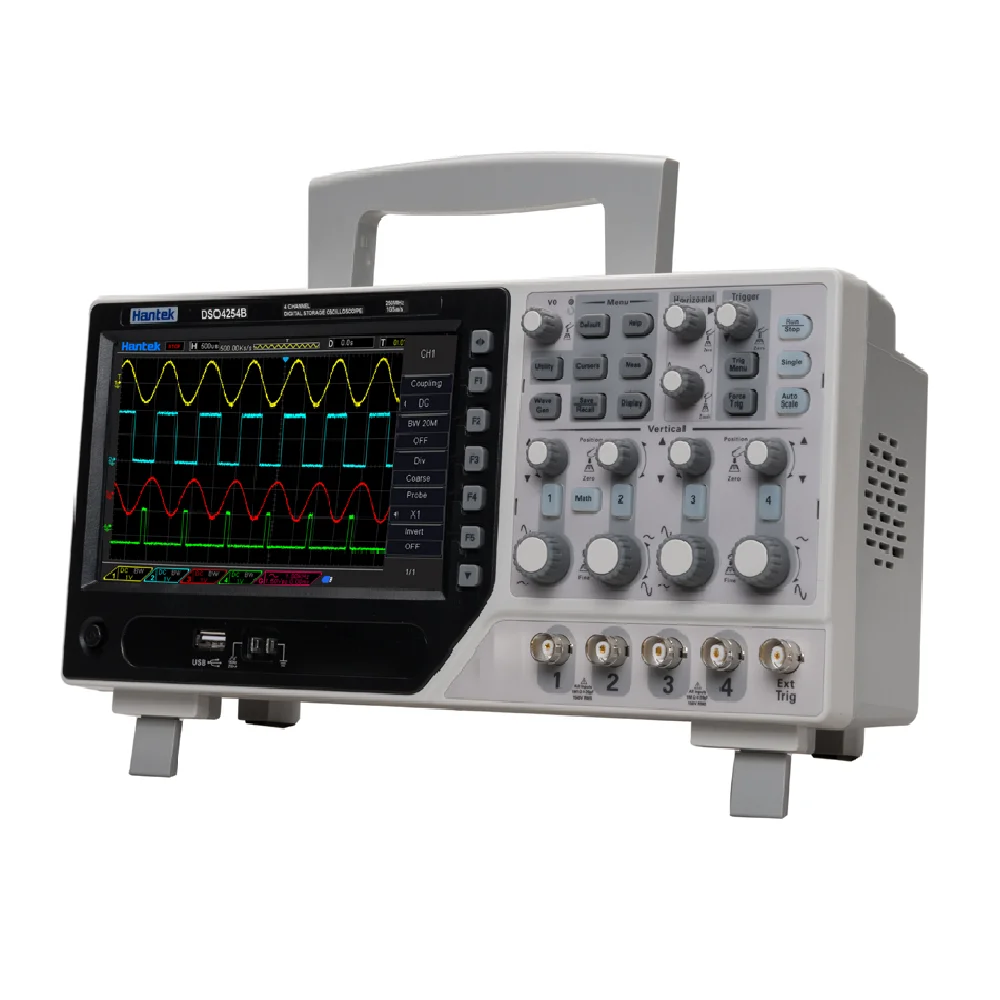

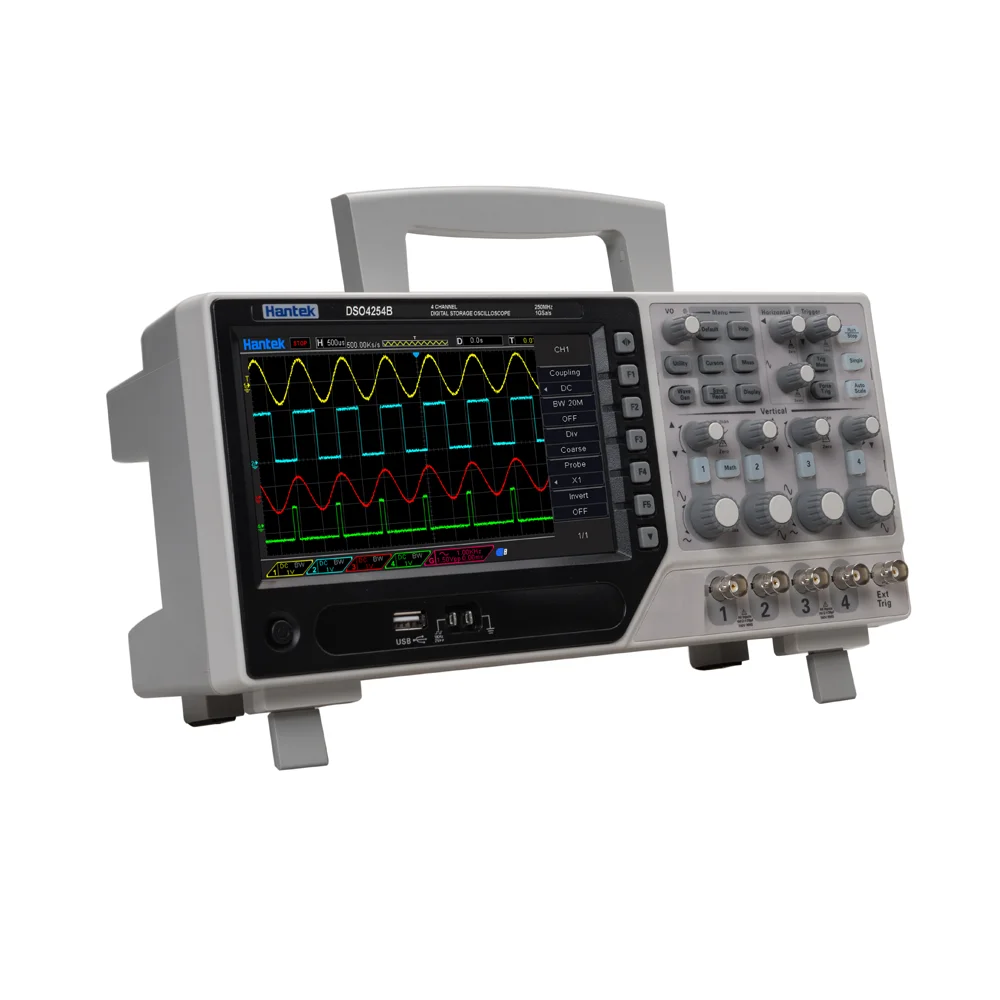

Hantek Official DSO4204B USB Oscilloscopes Digital 4Channels 200Mhz 1GS/s Sample Rate PC LDC Display Electric Osciloscopio

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $301.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	oscilloscope;	Port:	FOB ShenZhen;
Payment Terms:	L/C,T/T,Western Union;	Model Number:	DSO4204B;
Channel:	4 Channels;	type:	Bench oscilloscope;
Display:	digital display;	Packaging Detail:	Packaging Details: Natural packing/Customers packing are acceptable;
Supply Ability:	20000 Piece/Pieces per Month;	Brand Name:	Hantek;
MOQ:	1;	Place of Origin:	China(guangdong);
accuracy:	±3%;	name:	digital oscilloscope;
Payment:	TT;	Bandwidth:	200MHz;
DIY Supplies:	Electrical;

Hantek Official DSO4204B USB Oscilloscopes Digital 4Channels 200Mhz 1GS/s Sample Rate PC LDC Display Electric Osciloscopio

Feature:

· 4CH oscilloscope+EXT+DVM+auto range function

· 80-250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate.

· Over 32 types of auto measurement function

· Advanced digital trigger system, high trigger sensitivity.

· Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.

· Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.

· Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.

· Support a variety of SCPI remote control command

· Support optional RS232 port, LAN port. (Optional)

· Stable and reliable quality, sturdy and durable.

Model	DSO4254B	DSO4204B	DSO4104B	DSO4084B
Bandwidth	250MHz	200MHz	100MHz	80MHz
Horizontal
Sample Rate Range	1GS/s
Waveform Interpolation	(sin x)/x
Record Length	Maximum 64K samples per single-channel;
	Maximum 32K samples per dual-channel (4K, 32K optional)
SEC/DIV Range	2ns/div~100s/div
	1, 2, 5 sequence
Sample Rate and Delay Time Accuracy	±50ppm
Delta Time Measurement Accuracy (Full Bandwidth)	Single-shot, Normal mode ± (1 sample interval +100ppm × reading + 0.6ns)
	>16 averages ± (1 sample interval + 100ppm × reading + 0.4ns)
	Sample interval = s/div ÷ 200
Vertical
AD Converter	8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range	500μV/div to 10V/div at input BNC
Position Range	500μV/div~20mV/div, ±400mV
	50mV/div~200mV/div, ±2V
	500mV/div~2V/div, ±40V
	5V/div~10V/div, ±50V
Selectable Analog Bandwidth Limit, typical	20MHz
Low Frequency Response (-3db)	≤10Hz at BNC
Rise Time at BNC, typical	DSO4254B	DSO4204B	DSO4104B	DSO4084B
	<1.4ns	≤1.8ns	<3.5ns	≤4.4ns
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
	±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div
	Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes	Normal, Peak Detect, Average and HR
Acquisition Rate, typical	Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement)
Single Sequence	Acquisition Mode	Acquisition Stop Time
	Normal, Peak Detect	Upon single acquisition on all channels simultaneously
	Average	After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128
Trigger
Mode	Auto, Normal
Level	CH1~CH4	±4 divisions from center of screen
	EXT	0~3.3V
Holdoff Range	20ns ~ 10s
Trigger Level Accuracy	CH1~CH4	0.2div × volts/div within ±4 divisions from center of screen
	EXT	± (6% of setting + 40mV)
Edge Trigger
Slope	Rising, Falling, Rising&Falling
Source	CH1~CH4/EXT
