Water Bottle Filling Machine / Production Line

Supplier: Zhangjiagang Grandee Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Emily Shi
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Type:	Barrel,Bottles;	Function:	bottle water washing filling capping process;
Place of Origin:	Jiangsu China;	Filling material:	Non Gas Liquid;
Type:	Filling Machine;	Model Number:	XGF32-32-8;
Capacity:	15000BPH for 500ml bottle;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops;
Condition:	New;	Automatic Grade:	Automatic;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Dimension(LWH):	2900X2200X2200mm;
Processing Types:	Gravity Pressure Filling;	Key Selling Points:	High Productivity;
Weight:	7500KGS;	Filling temperature:	Normal Temperature Filling;
Packaging Detail:	PE fim wrapping, Wooden Case Packing;	Certification:	CE ISO SGS;
Warranty:	2 Years;	Voltage:	380V 50HZ 3P or customized;
Driven Type:	Mechanical;	Supply Ability:	5 Set/Sets per Month water bottle filling machine;
Material:	Stainless Steel 304/316;	Packaging Material:	Plastic,PET bottle;
Warranty:	Two years;	Port:	Shanghai Port;
Application:	Beverage,Food,Medical;	Product Name:	Water Bottle Filling Machine;
Brand Name:	Grandee;	Machine Type:	Linear type;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;

Water Bottle Filling Machine / Production Line

Product Description

Brief introduction :

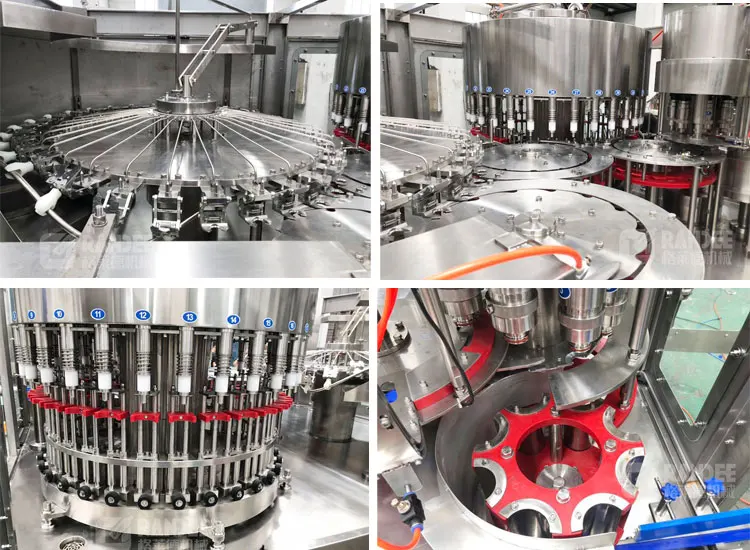

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

We are the water filling machine manufacturers in China.

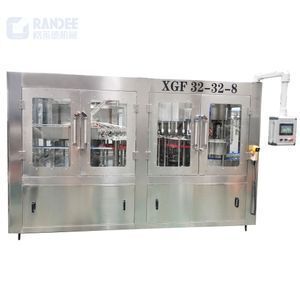

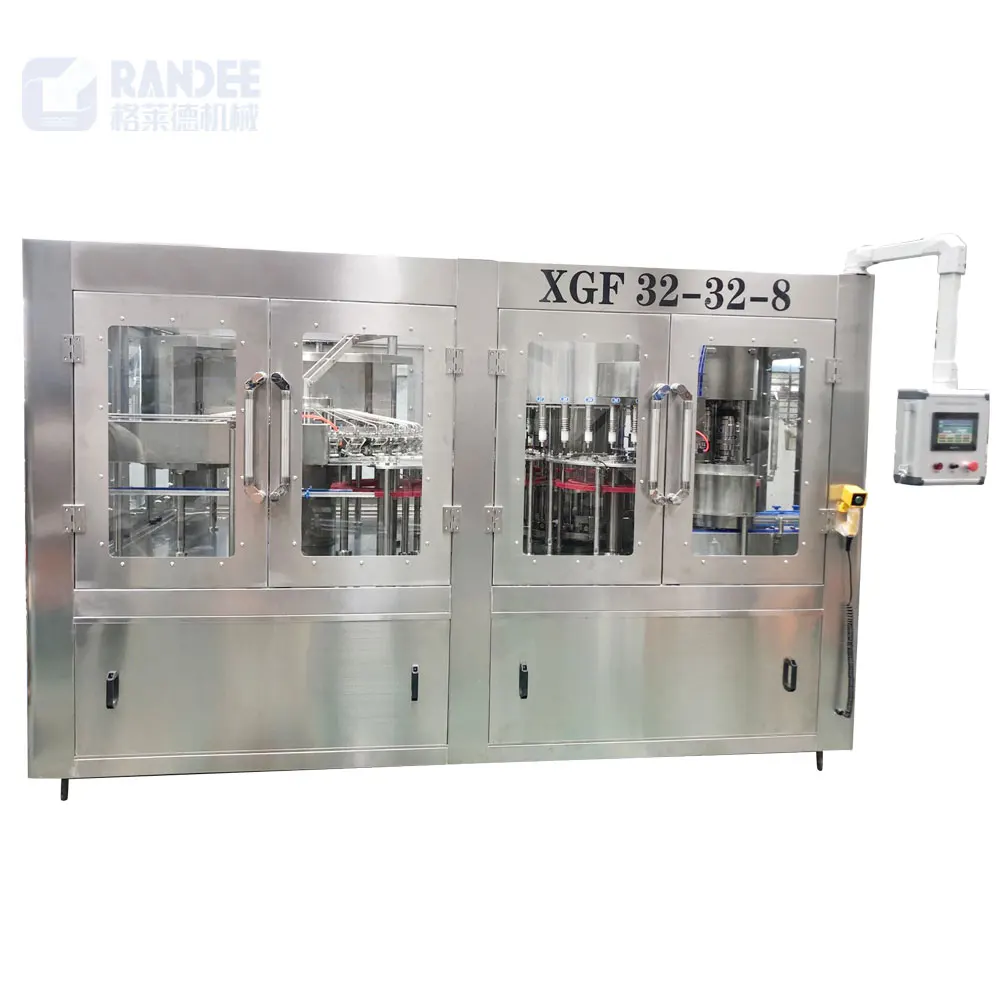

Machine picture:

Grandee Machinery Company Can Do More For You?

Main technical data:

Model	Washing head no.	Filling head no.	Capping head no.	Production capacity(BPH)	Overall size(mm)	Weight(kg)	Power (kw)
8-8-3	8	8	3	1500-2000	205014502100	2000	1.8
14-12-5	14	12	5	3000-4000	220017602350	2500	2.0
16-12-6	16	12	6	5000-6000	230016002400	2800	2.2
16-16-5	16	16	5	6000-7000	240018002400	2800	2.2
18-18-6	18	18	6	7000-8000	265019002400	3000	3.5
24-24-8	24	24	8	8000-13000	290021002400	3500	4.5
32-32-8	32	32	8	15000-18000	310021002650	4300	5.5
40-40-10	40	40	10	18000-20000	435028803200	6000	5.5
50-50-15	50	50	15	20000-23000	485033003200	7500	7.5
60-60-15	60	60	15	25000-28000	505035003200	8500	9.5
72-72-18	72	72	18	30000-36000	525035003200	9500	10.5
80-80-18	80	80	18	38000-45000	525036003200	11500	12.5
