Showroom Location: | Egypt,Canada,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan,Japan,Malaysia,Australia; | Application: | Carbonated Beverage / CO2 Drink; |
Marketing Type: | Ordinary Product; | Working pressure of storage tank: | 0.02-0.5Mpa; |
Material: | Stainless Steel SUS304; | Processing Types: | Carbonated Beverage; |
Port: | Shanghai port; | After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support; |
Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Food & Beverage Shops; | Processing: | Mixer; |
Type: | Mix Water Co2; | Warranty of core components: | 2 years; |
Warranty: | 2 years; | Dimension(L*W*H): | 1720*1140*2100mm; |
Power: | 3.7KW; | Place of Origin: | Jiangsu, China; |
Voltage: | 220V/380V; | Function: | Blending; |
Machinery Test Report: | Provided; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Product name: | Carbonated drink mixer; | Supply Ability: | 10 Sets per Month carbonated drink mixer; |
Pump brand: | CNP; | Brand Name: | Grandee; |
Local Service Location: | Egypt,Canada,Turkey,United States,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan; | Core Components: | PLC,Motor,Pump; |
Usage: | Mix Carbonated Drinks; | Capacity: | 3000Liters/hr; |
Certification: | CE ISO; | Video outgoing-inspection: | Provided; |
Weight: | 1100kg; | Condition: | New; |
Package Preview: | ; | Packaging Detail: | PE Film Wrapping and Wooden Case Packing for carbonated drink mixer; |
Payment Terms: | L/C,Western Union,T/T; |

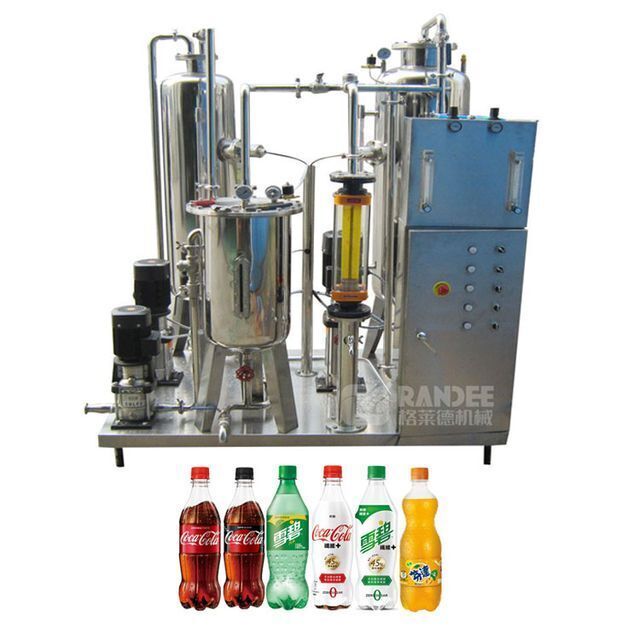

High quality carbonated soft drink mixer / mixing machine
Machine description:
QHS series CARBONATED MIXER / drink mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks.
Main features:
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.
Carbonation mixer
Main technical parameter:
Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-5000 | QHS-6000 |
Production capacity | 1000-2000 | 2500-3000 | 3500-4000 | 4500-5000 | 5500-6000 |
Adjustable proportion of of syrup and water | 1:3-1:6 | ||||
CO2 content | 1.5-2.5 | >2.5 | >2.5 | >3.5 | >3.5 |
Cooling water entry temperature(℃) | 0-5 | ||||
Working pressure of carbonized and syrup tank(Mpa) | 0.05-0.15 | ||||
Working pressure of storage tank(Mpa) | 0.2-0.5 | ||||
Power(KW) | 1.5 | 3.7 | 4.5 | 5.6 | 6.2 |
Dimension(mm) |
900*700 *2000 |
1720*1140 *2100 |
1860*1300 *2100 |
2020*1500 *2200 |
2020*1500 *2200 |
Weight(KG) | 500 | 1100 | 1300 | 1600 | 1800 |
Carbonated drink washing filling capping machineCapacity: 2000BPH to 20000BPH for 500ml bottle Filling temperature: 3℃ to 8℃ Bottle range: 200ml-2250ml Bottle dimater: ≤340mm Bottle height: ≤110mm Bottle material: PET bottle Bottle shape: round / flat / square bottle |
|

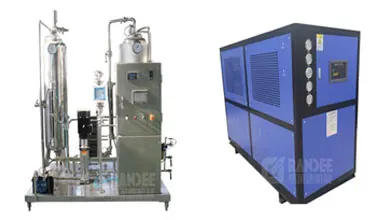

Carbonation mixer and air cooled type water chiller Capacity: 1500liters-20000liters/hr Co2 content: ≥3.5 Carbonation mixer and Water chiller Process: Water, syrup, CO2 mixing system Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8 Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)
|
|

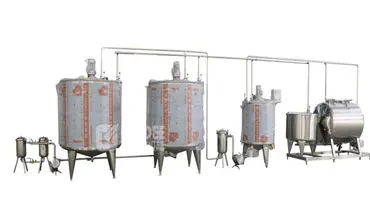

Soda Water Mixing System Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank The output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc. Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming. Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending system Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacket |
|
Blowing Machine with different options:
1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.
2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.
|
|
Full automatic sleeve labeling machine Capacity: 100-350bottles/min can be choosed Label material: PVC PET OPS,etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm |
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
