Condition: | New; | Max. Swing Diameter: | 550mm; |
Delivery Detail: | 45 days; | Certification: | CE ISO; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Voltage: | Adjustable; |
Place of Origin: | Zhejiang China; | Power(W): | 11KW; |
Model Number: | FTL550; | Dimension(L*W*H): | 3250*1460*1800mm; |
Type: | Horizontal; | Payment Terms: | L/C,T/T; |

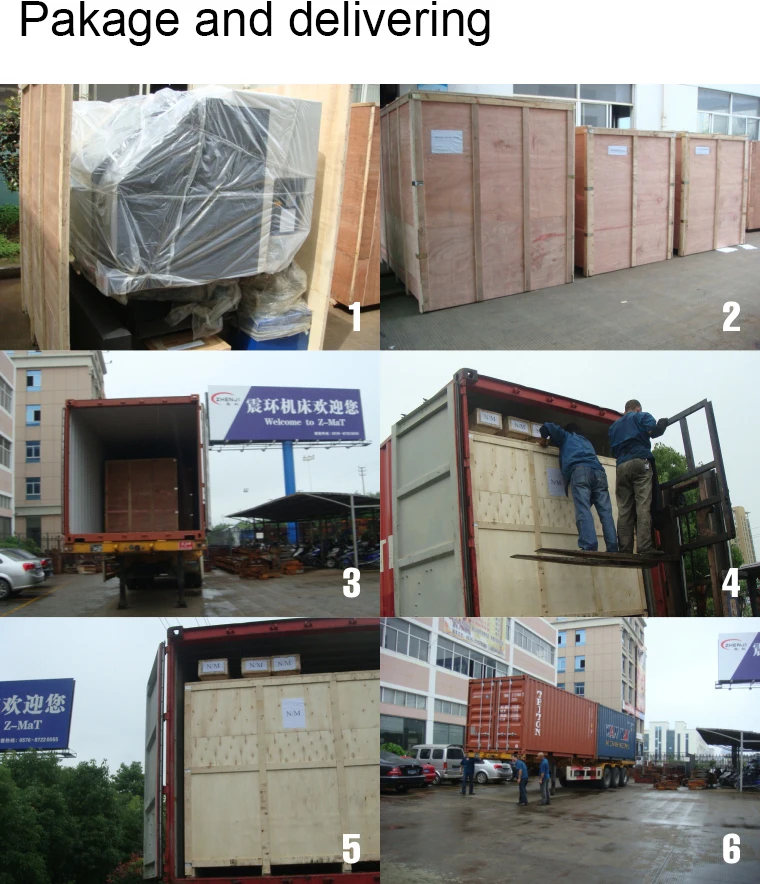

Packaging Detail: | Package Type: seaworthy package Delivery time : 45 days; | Port: | Ningbo, Shanghai; |
CNC or Not: | CNC; | Brand Name: | Z-MaT; |
Automatic Grade: | Automatic; | Weight: | 3000kg; |
Supply Ability: | 4000 Unit/Units per Year; |

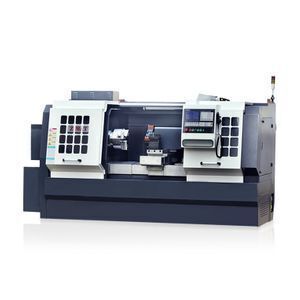

FTL550 Flat bed linear rail 8 station turret high quality high precision cnc turning lathe with tailstock |
FTL550
1. Modular design, flat bed with middle ball screw structure, high cost performance
2. Tailstock configuration helps improve processing accuracy
3. Full-guarded cover realizes more water-resistant and chip-resistant
4. High precision linear roller guide ways minimize abrasion and its preload decreases gap and increases precision
5. High precision angular contact bearings adoption realizes high precision, high bearing capacity and good running speed, it is more durable
Items | FTL550 Parameters | |
Capacity | Chuck size | Manual chuck 12" *Hydraulic chuck 12" |
Max. swing dia. over bed | φ550mm | |
Max. length of workpiece | 1000mm | |
Max. swing dia. over slide | φ320mm | |
Spindle | Spindle nose | A2-8 |
Spindle bore | φ81mm | |
Max. dia. Of through-hole | φ70mm | |
Spindle speed | 1600rpm | |
Main motor power | 11kW | |
Axis | X axis travel | 280mm |
Z axis travel | 100mm | |
X/Z rapid traverse | 15/15m/min | |
Turret | Toolpost | 8-station turret+gang type |
No. of tool staitons | 8+2 | |
Tailstock | Type of tailstock | Manual,*Hydraulic |
Taper of tailstock quill | MT5 | |
Travel of tailstock quill | 100mm | |
Guideway type | Linear motion |
Reason 1.High Precision
All machines that are launched by Z-Mat have been tested with laser interferometers ,dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments
Reason 2. High Stability
All machinery bases that launched by Z-Mat have gone through natural aging treatment for at least two years
Reason 3. Well-known brand
Z-Mat has been awarded the honor of “Zhejiang SME”,”High-tech Industry”,”Top Ten Industry in Yuhuan”,”Top 50 CNC Machine Tool Manufacture in China” and “Taizhou Great Brand”
Reason 4. Flexibility
Because we are one of the few machinery company that has product line of more than 70 CNC machine tools in China,so that we can choose the best CNC machine tools for our customers . We have a strong R&D team , so that we can design specific machinery to satisfy customers’ requirements .
Reason 5. On time
We always deliver machinery on time so that our customers do not need to waste extra time waiting . We also respond our customer at the first time in order to satisfy their requirement
