Good quality and good price of Electromagnetic Flowmeter Converter/ magnetic flowmeter/flow meter

Supplier: Xi'an Youlian Automation Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Mr Deyan Liu
Price: $188.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	2000 Set/Sets per Month;	Power supply:	220V AC 50Hz/24V DC ,battery;
Payment Terms:	L/C,D/A,D/P,T/T;	Model Number:	YLflow;
Communication:	RS-485, RS232 ,HART;	Protection grade:	IP65,IP67,IP68;
Medium temperature:	-40°C - +180 °C;	Accuracy:	+/-0.2% +/-0.3% +/-0.5%;
Output:	4-20mA;	Connection:	Flange, Clamp on, Thread;
Brand Name:	YOULIAN;	Caliber:	DN6 mm ---- DN 3000 mm;
Place of Origin:	Shaanxi China;	Nominal pressure:	0--4.0 Mpa , also can customize;
Port:	Beijing,Tianjin, Shanghai, Shenzhen;	Type:	flow meter class;
Packaging Detail:	Standard export packing or according to customer's request;

Product Description

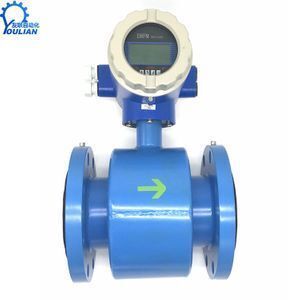

Electromagnetic Flowmeter Converter/ magnetic flowmeter/ flow meter

Product Description

YOUL-LD magnetic flow meter a high precision and high reliability flow meter. It is used to measure the volume flow of conducting liquid and slurry in a closed pipe, which is widely used in steel, electronic power, petroleum, chemical, coal, metallurgy, mining, paper making, water supply and drainage, food, pharmaceutical and other industry.

4-20ma Water Flow meter Features:

Measurement depends on fluid density, humidity, temperature, pressure and conductivity.
There is no obstructive in the conduit and no pressure drop, and the straight pipe required is relatively short.
The sensor is equipped with the advanced processing technology that provides excellent immunity to negative pressure.
LCD display of the converter makes it easy to read during daylight and in darkness.
Parameters can be set up using infrared touch nubs no need to open the cover of the converter.
Automatic alarm functions for selfdiagnosis, empty load test, high and low limit of flow, two-stage flow value, etc.
It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.

The application site:

Technical Performance Parameters

Model	DN6~DN3000mm
Nominal Pressure	0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa)
Accuracy	±0.5%,±0.3%or±0.2% are selectable
Liner material	Teflon,PFA,F46,Neoprene,Polyurethane
Electrode Type	General type ,scraper type and replaceable type
Electrode material	Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinumiridium, Stainless steel covered with tungsten carbide
Mediem temperature	Integrate type	-20°C~+60°C
	Remote type	Neoprene & Polyurethane Liner	-10°C~+80°C
	Remote type	PTFE Liner /PFA Liner /F46 Liner	-10°C~+160°C
Ambient Temperature	-25°C ~+ 60°C
Ambient Humidity	5~100%RH(relative humidity)
Medium Electrical conductivity	>=5u s/cm
Measuring Range	1500:1,flow rate<15m/s
Structure type	Integral type,remote type,submersible type,ex-proof type
Protection Class	IP65,IP68(optional)
Ex-proof Mark	ExmdⅡT6
Product Standard	JB/T 9248-1999 Electormagnetic Flowmeter

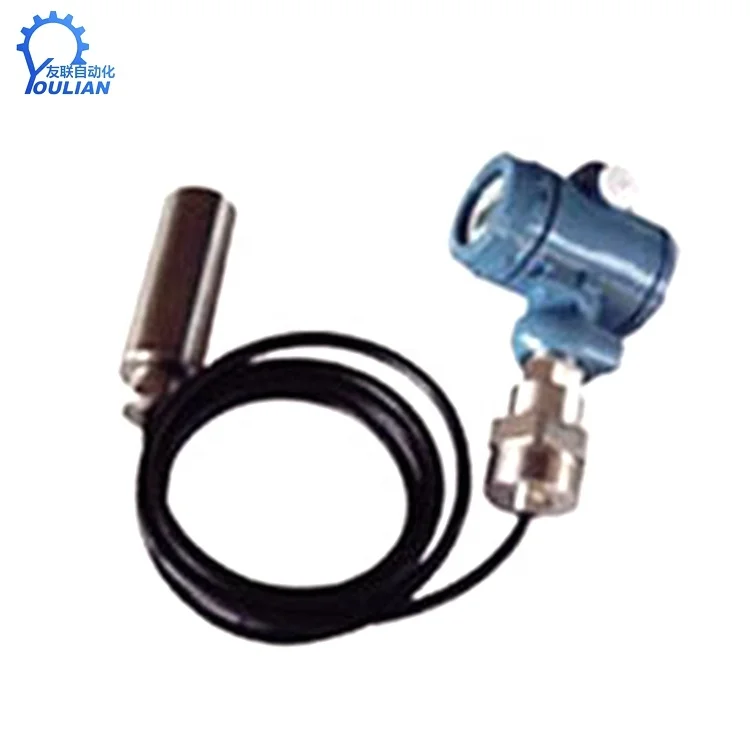

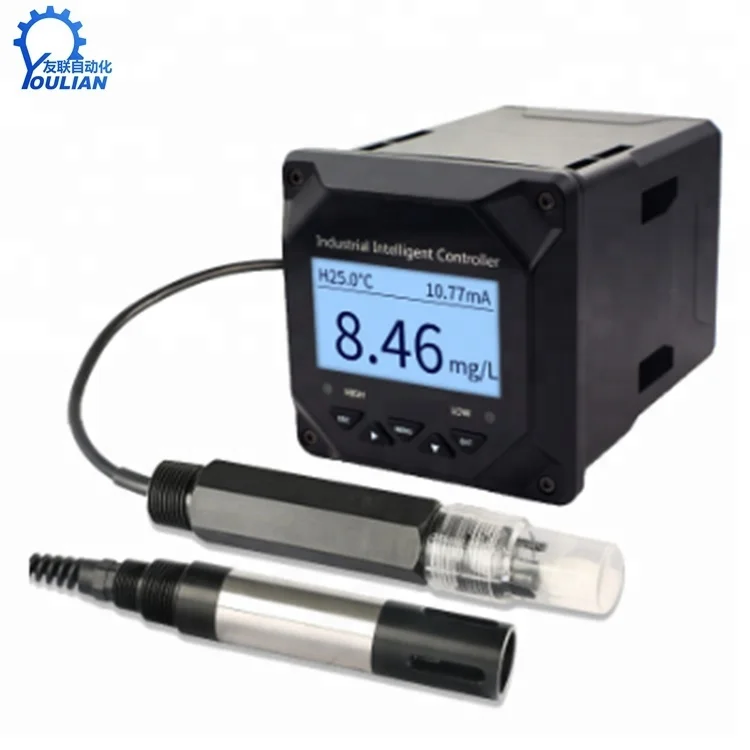

The more products you may like:

Packaging & Shipping

Packaging Details :Standard export packing

Delivery Port :Beijing,Tianjin, Shanghai, Shenzhen

Lead Time : usually within one week

Payment: before the production.

Company Information

Xi 'an youlian automation equipment co., ltd. is a professional provider of industrial process automation instrumentation and system integration services, the company is located in xi 'an youlian high-tech development zone, mainly engaged in the sales and development of industrial process automation instrumentation and systems.

With the implementation of One Belt And One Road construction and the implementation of western development strategy, youlian company has made great progress relying on xi 'an instrument production base to develop fa.The company relies on more than 20 years of research and development experience, has experienced automation instrument technical personnel and service personnel, and in power, chemical metallurgy, building materials, municipal, food, machinery, equipment manufacturing and other related application fields have a unique technical services.Our service starts from China to the world.

Customer and show:

Why choose us?

1-More than 20 years experiences in this field;

2-Specialize in high quality automation equipment products;

3-Cost-effective, in line with your market choice;

4-Have the most complete product range;

5-Standardized management, strict delivery, support after-sales service.

FAQ

1-Q: Are you a factory or trading company?

A: We are a professional silicone product factory.

2-Q: Can I visit your factory?

A: Yes, of course. We have our factory and we also have successively established long-term strategic cooperative relations with a number of international and domestic well-known brands in the field of automation instruments and meters, and obtained their qualification of technical service center or northwest and agency in western China. You can fly to Xi’an airport, we will arrange to pick you up. Warmly welcome to visit us.

3-Q: What advantages do you have?

We are a professional provider of industrial process automation instrumentation and system integration services, and have more than 20 years exprience in this field.
We have Lots of resources and channels.
Good quality and competitive price.
Professional service and after-sales service.
Sincere cooperation attitude.

4-Q: Can i get the samples?
A: We could offer the sample if we have the stock,and the freight and taxes cost will stand by your side.

5-Q: How does your factory do regarding quality control?

A: Quality of the product is priority, we always attach great importance to quality controlling from the very beginning, our factory have a strict quality control system.

6-Q: Can I customize the products?
A: Guarantee: 2 years. Lifetime maintenance.

7-Q: How about the guarantee? If we make a payment, when will you start the production?

A: As soon as we receive the payment, we will arrange the production.
