Condition: | New; | Weight: | 1680KG; |
T beam width: | 140mm; | Power(W): | 10.5KW; |
Main process: | Forming; | Certification: | CE, ISO; |
Place of Origin: | Shandong China; | Engine type: | Electric engine; |
Raw materials: | Cement, sand and stone; | Capacity: | 336 meters/hour; |
Machine material: | Steel structure; | Voltage: | Customized; |
Packaging Detail: | in standard packing for export; | Applicable Industries: | Construction works ; |
Dimension(L*W*H): | 2500X930X720mm; | T beam height: | 120mm; |
Key Selling Points: | Easy to Operate; | Production Capacity: | 1.2-1.4m/min; |
After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Supply Ability: | 200 Set/Sets per Month; |
Brand Name: | WEIZHI; | Port: | Qingdao/Tianjin; |
Machine color: | Customized; | Payment Terms: | L/C,T/T,Western Union; |
Advantage: | Durable parts; | Warranty: | 1 Year; |
Usage: | For house roof; |
Precast Concrete T Beam Making Mold For Build Materials
Product description
T beam machine is a special kind of beam machine, which is researched and developed by our engineer. This machine is used for concrete beam with steel wire inside and beam shape of T section. It can produce several pieces of T beam one time, which has a big productivity.
Products of the machine can be used into floor and roof. All of the specification of beam machine can reach to the construction standard.
Machine specification (Your T beam sizes can be customized)
Model | Motor power | Vibrator power | Dimension L*W*H(mm) | Weight (kg) | Mold Speed |
120*240 | 3kw | 0.8kw | 2000*500*670 | 640 | 1.2-1.4 |
120*240*2 | 4kw | 2.2kw | 2100*800*700 | 960 | 1.2-1.4 |
120*370 | 4kw | 1.5kw | 2050*650*670 | 810 | 1.2-1.4 |
120*370*2 | 5.5kw | 3kw | 2050*1040*670 | 1320 | 1.2-1.4 |
180*240 | 4kw | 1.5kw | 2100*550*750 | 840 | 1.2-1.4 |
200*180*3 | 7.5kw | 3kw | 2100*880*750 | 1300 | 1.2-1.4 |
T beam machine whole production line

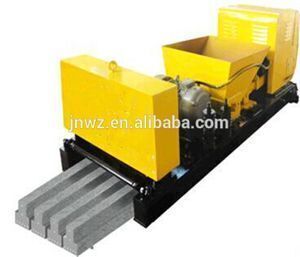

1. Concrete T beam machine

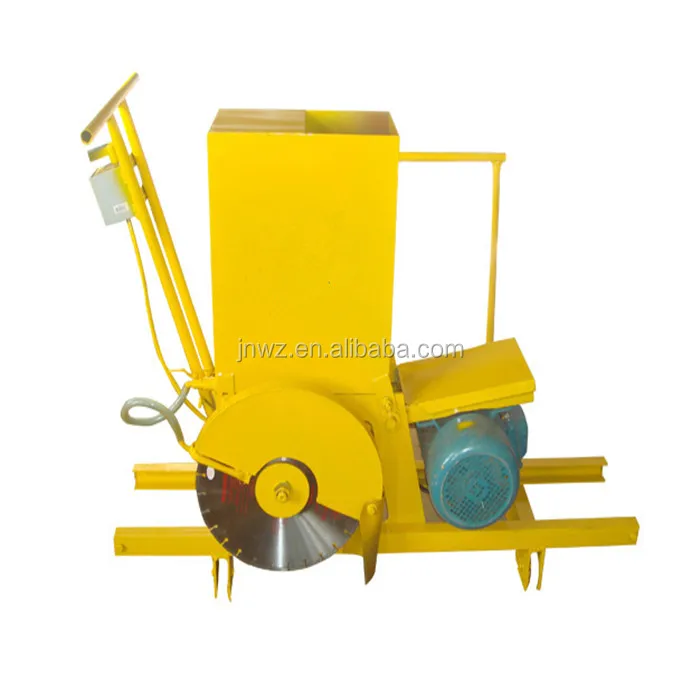

2. Concrete T beam cutting machine
3. Steel wire tension machine

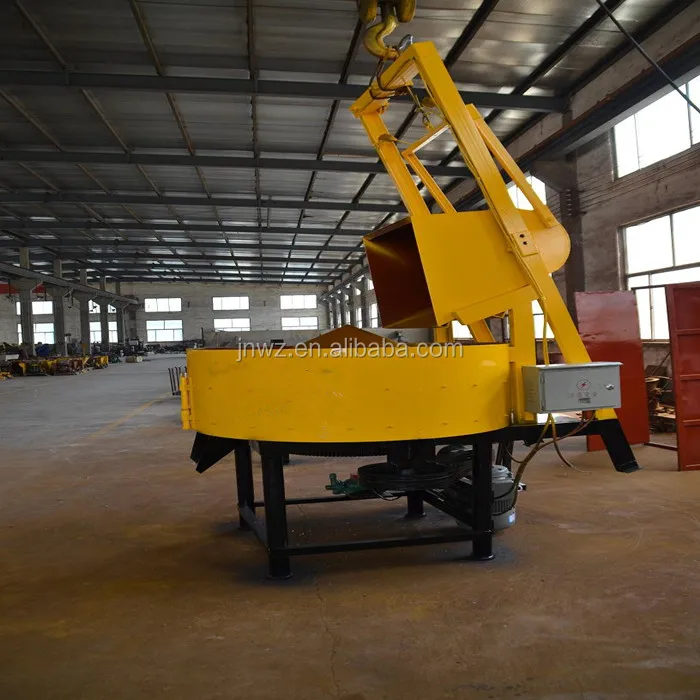

4. Concrete mixing machine

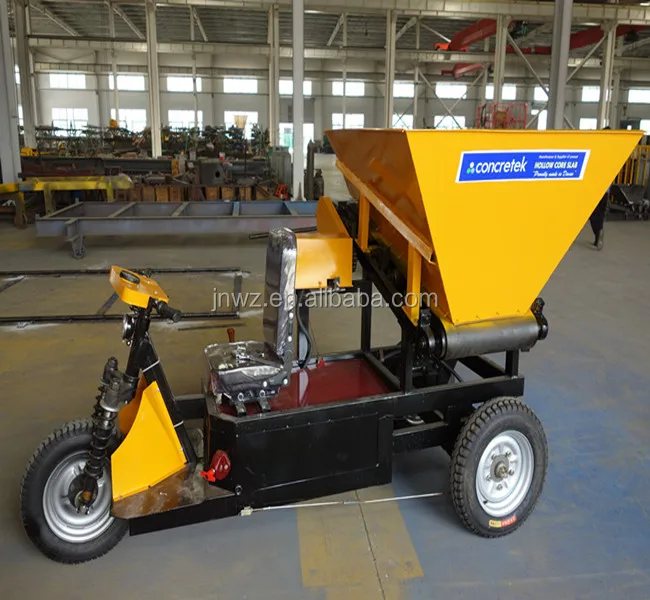

5. Automatic feeding dumper

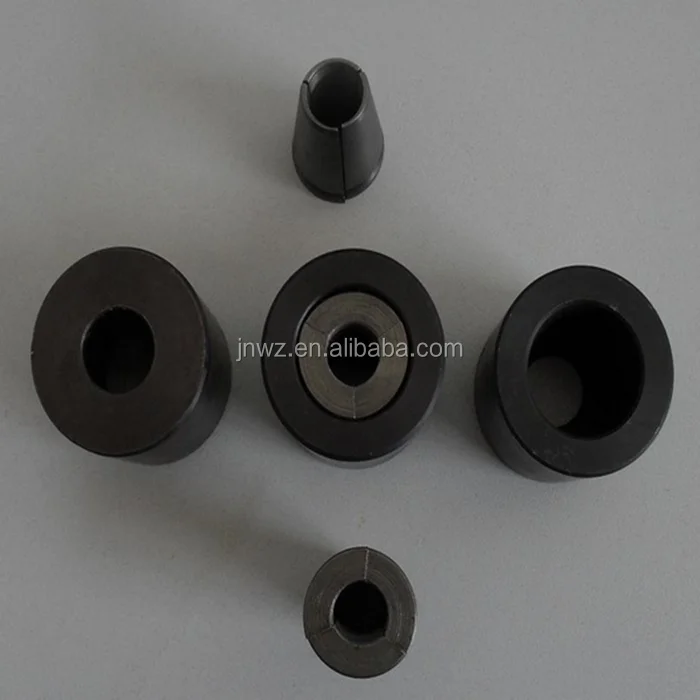

6. Anchor grips
Finished concrete T beams from clients
Concrete T beams used for house roof
Packaging & Shipping

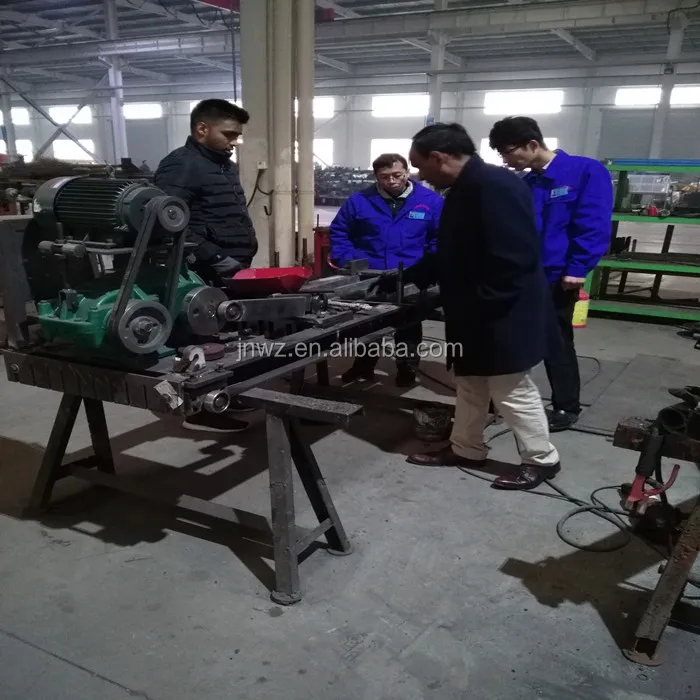

Clients visit our factory
Our Services
1. We supply technical support and can send our engineer to help clients to install machines.
2. We supply one year warranty for whole machine.
3. We supply free quick wear parts and free training to end-users.
4. We supply low cost continual maintenance when warranty is expired.
