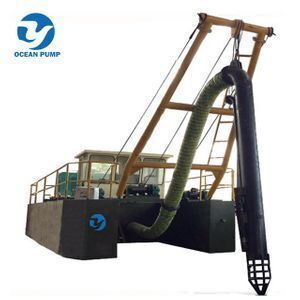

High Efficiency Jet Suction Dredger

Product details
Dredging Depth:35 m;Warranty:12 MONTHS;
Dredger pump size:8 inch-16 inch;Supply Ability:5 Set/Sets per Month jet suction dredger;
Dredger pump speed:550-980rpm;Packaging Detail:jet suction dredger can ship by 40 feet container;
Certification:SGS/BV;Draught:25 inch;
Sand capacity:80-520m3/h;Payment Terms:L/C,T/T,Western Union,trade assurance;
Type:jet suction dredger;Brand Name:Ocean;
Colour:Blue or customized;Port:Qingdao;
Structure:Demountable;Place of Origin:Shandong China (Mainland);
Dredger pump head:28-50m;After-sales Service Provided:Engineers available to service machinery overseas;
Condition:New;Weight:Depend on dredger size;
Steel plate thickness:6 mm-10mm;Dimension(L*W*H):Customized;
Work site:River, lake, pond, ect.;Dredger pump flow:410-2600m3/h;
Power Type:Diesel;Discharge distance:Maximum up to 2000m;

High Efficiency Jet Suction Dredger

Product Description

Jet suction dredger is widely used to recover underwater materials from great depths and can also extract sand from below a clay overburden. Jet suction dredger is also called jet sand suction dredger. Jet suction dredger is equipped with high pressure water pump and powerful sand suction pump. The water pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.

OCEAN Pump brand jet suction dredger consists of dredger body, high efficiency wear resistant marine sand pump, high pressure water pump, famous brand diesel engine and discharge system. Our jet suction dredger feature integrated design, high efficiency, good wear resistance, flexible operation, energy saving in the delivery of solid particles. Our jet suction dredger is the most economic sand dredging equipment for loose fine sand in the water bottom. We can customize various small and medium jet suction dredgers for your demands.

Specification
NO.Item JSD200JSD250JSD300JSD350JSD400
1Dredger performanceSand capacity(m³/hr)80-110130-260300-360360-390440-520
Max.discharge distance(m)200-600200-1000200-1500200-1800200-2000
Max.gravel diameter passing through(mm)50-6060-7060-7060-7060-80
Max.dredging depth(m)1515152020
2Dredger bodySize(L*W*H)

8*1*1.5,2PC

6*2.25*1.5,

1PC

8*1*1.5,2PC

6*2.25*1.5,

1PC

11.8*1.1*1.5,2PC

8*2.25*1.8,1PC

18*1.1*1.5,

2PC

18*1.1*1.5,

2PC

3Sand suction systemPump size(inch)8/610/812/1014/1216/14
Pump flow(m³/hr)410-540620-14501650-18001800-19502200-2600
Pump head(m)28-4821-3524-3524-3530-50
Pump speed(rpm)730-980730730730550-700
Main engine power(kw)132-156180-250250-300300-410410-460
GearboxYesYesYesYesYes
Connect metal baseIncludeIncludeIncludeIncludeInclude
High pressure water pumpJetting sand upJetting sand upJetting sand upJetting sand upJetting sand up

The information in the table is not complete. Please click here to get more detailed data.

Features
  • Novel design, High efficient, large output, long discharge distance.
  • High quality wear resistance and long serve life sand pump.
  • Pumping depth reaches up to 20-30m underwater.
  • Dredge hull consists of multiple pontoons connected by proven coupling system.
  • Highly efficient fuel consumption and minimum overall operational costs.
  • Control box and instrument are mounted in ergonomic dash board.
  • Low investment and good operating performance.
  • Simple and fast assembly and disassembly, easy to operate.
  • OEM, ODM, customization are available.
Application

OCEAN Pump had been dedicated in designing and manufacturing sand pump, slurry pump, gravel pump and sand dredgers for over 20 years. Our sand pump and sand dredge products had been exported to over 60 countries.

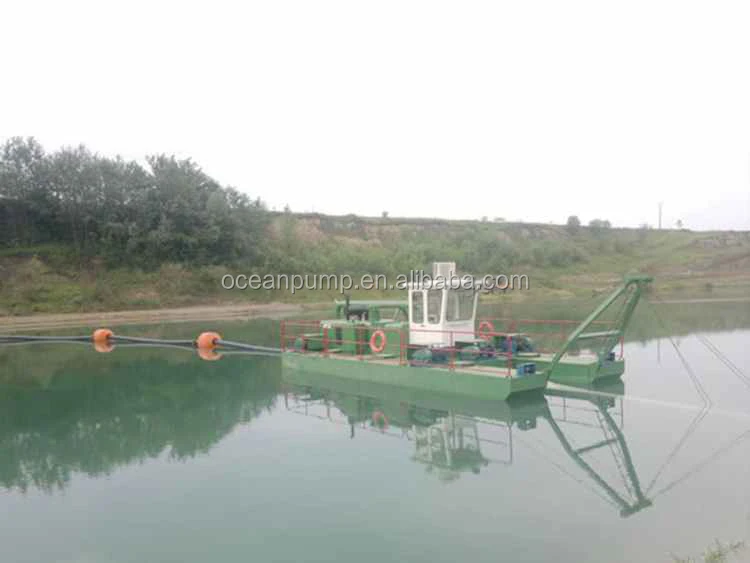

Our high efficiency jet suction dredger series are widely used for sand dredging in rivers, delisting lakes and ponds, reclaiming land, cleaning ports and pumping sand, it is also suitable for exploiting seashore, clearing port and pier, etc.

Successful cases

Our Ghana customer wanted to order a jet suction dredger to suck the fine sand from a small river. There were no big stones or gravels in the river. The dredging depth was around 5-10 meters, and they required 100 m 3 sand per hour, the discharge distance was 500-800 meters. According to these data, we chose a jet suction dredger specification for customer. We recommended OCEAN PUMP 200 PNS -30 high efficiency wear resistant marine sand pump to be equipped into the jet suction dredger, the sand pump was driven by Yuchai 162 KW diesel engine. As the dredging depth was not very deep, we chose manual hoist instead of electric winch to lift the sand suction rubber hose in front of the jet suction dredger. The high pressure water pump and anchor winch were both driven by diesel engine. By this way, the whole river dredging system was not need to use the generator set, it was not only retains the use of function, but also saved the customer’s costs.



In the process of communicating with customers, we understood that the customer had the ability to weld the jet suction dredger body by himself. So we can only provide the main pontoon, he would weld the side pontoons by himself. In the main pontoon, we connected the sand dredging pump with diesel engine, water pump with diesel engine, and other accessories. At the same time, we provided the side pontoons drawings to customer, and then he welded the side pontoons in the local place. With this way, customer saved processing costs and transportation costs.

For sand discharge pipe and jet suction dredger floater, customer needed 8 inch HDPE pipes, it would need 3 pairs floaters every 10 meters pipes, 500 meters pipes needed 150 pairs floaters. As customer had some old oil drums around his worksite, so he used the oil drums instead of floaters.
