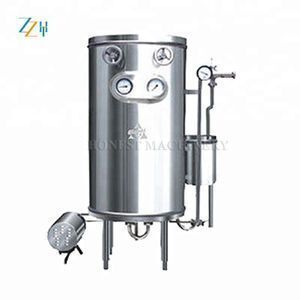

Small Scale Uht Milk Processing Plant /Uht Milk Machine Price

Supplier: Zhengzhou Honest Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Rachel Xiong
Price: $1590.00 /set
Min. Order: 1 set

Click here to contact

Product details

Processing:	Sterilizer;	Name:	Uht Milk Machine;
Warranty:	2years;	Control system:	Automatic;
Advantage:	High Efficiency;	Power:	2.2kw;
Weight:	350kg;	Processing Types:	Milk;
capacity:	1000L/H;	Heating way:	Steam Heating;

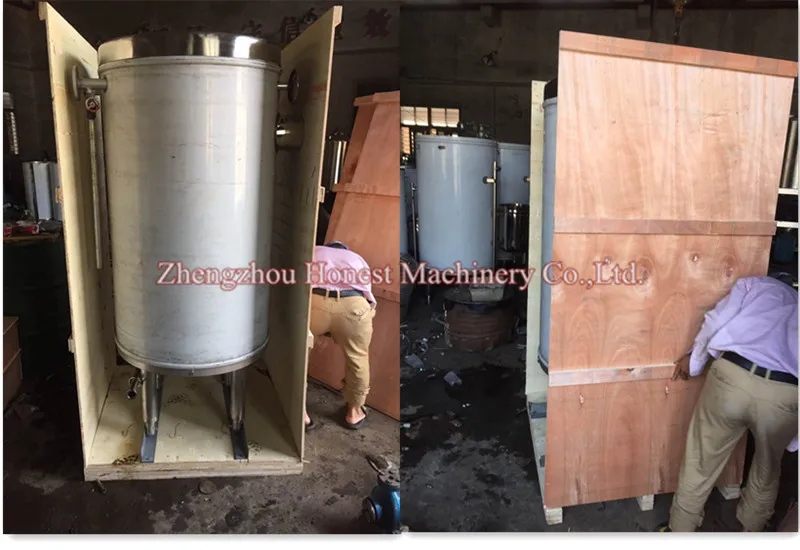

Packaging Detail:	fumigation-free wooden case Uht Milk Machine Price;	Dimension(LWH):	110011001700MM;
Condition:	New;	After-sales Service Provided:	Free spare parts;
Supply Ability:	50 Set/Sets per Month Uht Milk Machine Price;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Uht Milk Machine;
Place of Origin:	Henan China;	Certification:	ISO CE;
Application:	Dairy;	Design Temperature:	147 Degree Centigrade;
Voltage:	220V/380V;	Model Number:	HT-E6L20;
Material:	Stainless Steel SUS304;	Port:	Qingdao,or as customers' request;
Brand Name:	HONEST;	Power(W):	2.2KW;

Product Description

UHT super temperature instant sterilizer suitable for fresh milk, juice, beverage, frozen sucker, and ice cream paste, soy sauce, soybean milk, condensed milk, wine and other liquid materials of instantaneous sterilization, sterilization of liquid materials can also be used for. The device of feeding and discharging adopt t cock, flow can be according to need to adjust, use and reliable.

Product Feature

1. Continuous production, sterilization time is very short.
2. Due to the shorter time for heating can obtain high quality products.
3. With ultra high temperature sterilization, the sterilization efficiency is very high.
4. With centrifugal pump series or high pressure homogenizer is used, the application range is very wide, suitable for high viscosity material sterilization.
5. With cold and hot material is used on due to the design of heat exchange equipment of waste heat utilization economic effect, so the electric consumption is small.
6.Have electric power and steam power,two kinds.If you have boiler or steam generator,the steam power is more suitable.If not,the electric power is more cost-effective.

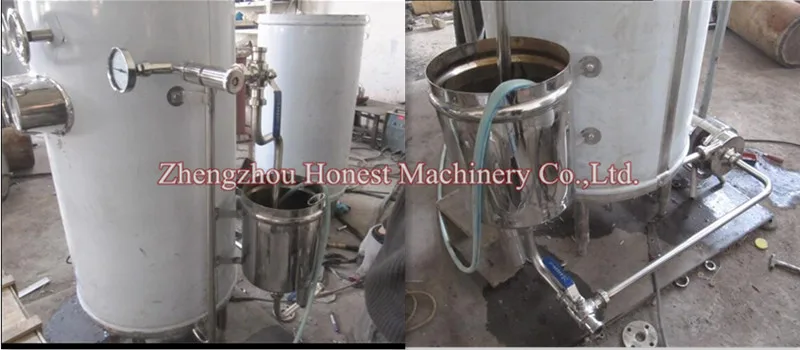

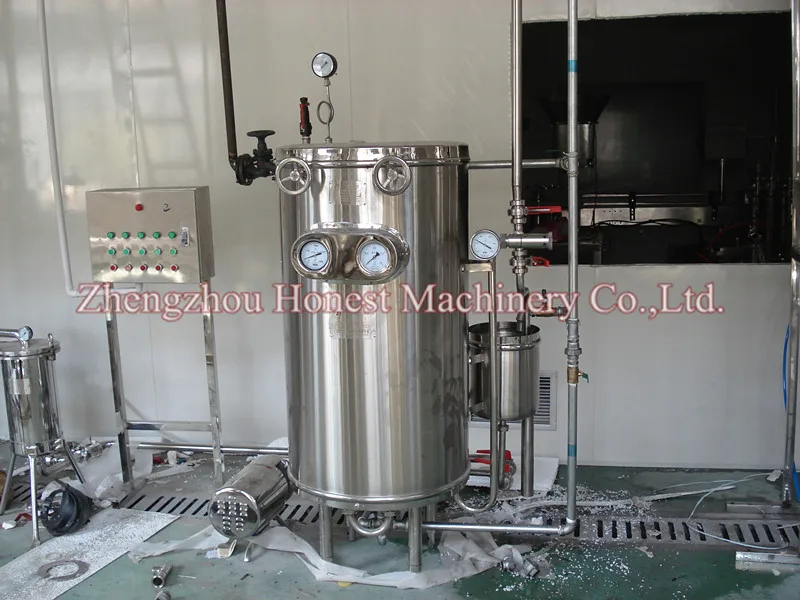

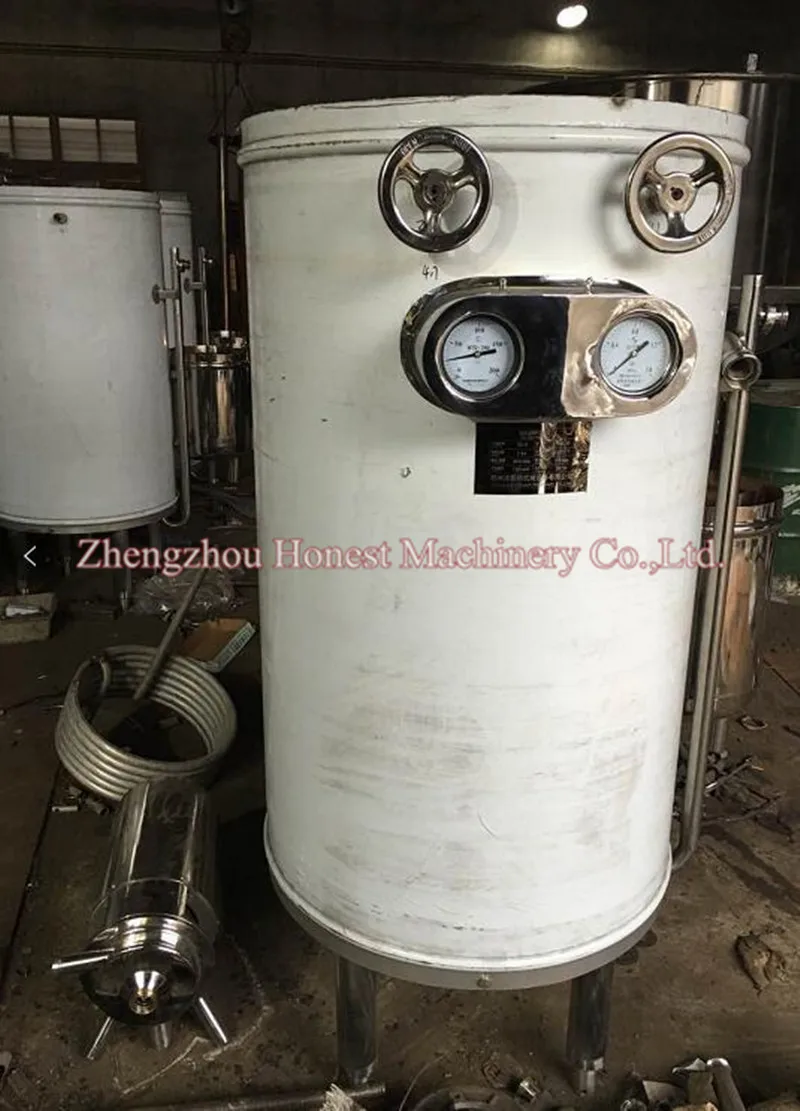

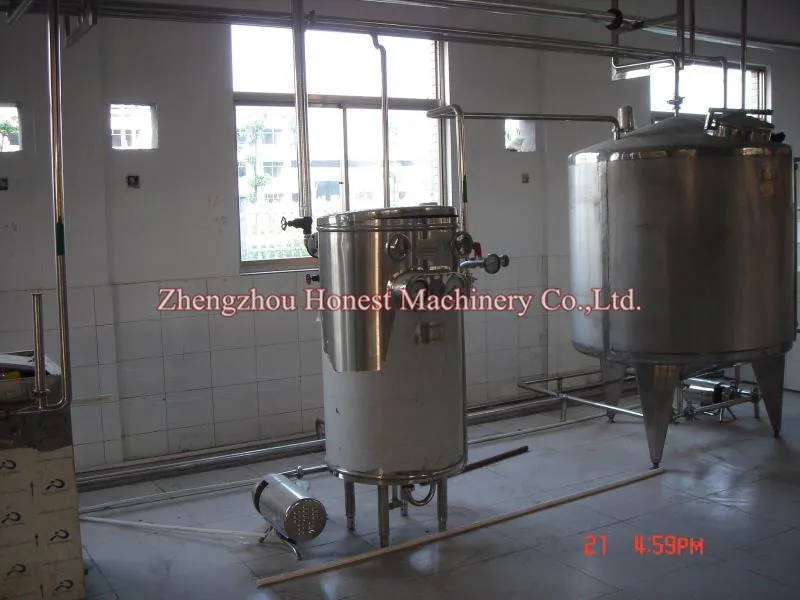

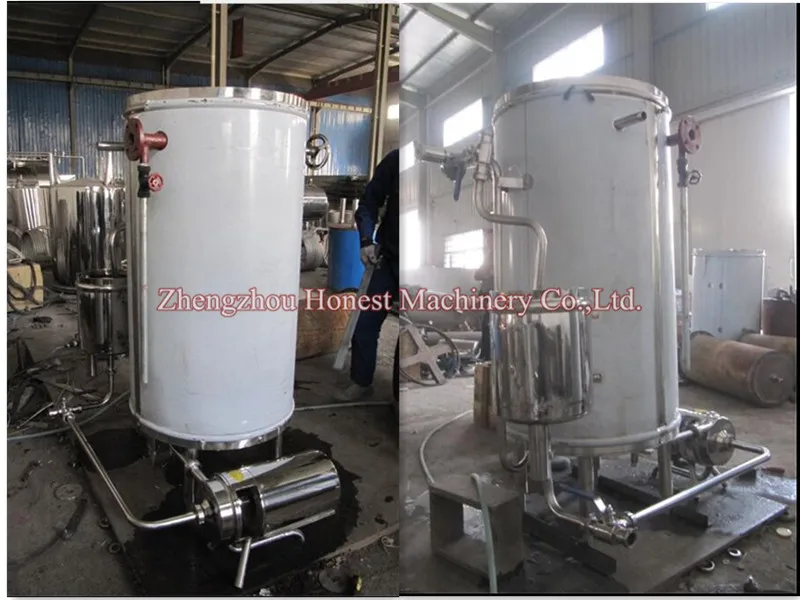

Product Pictures

Technical Parameter

Model	HT-E6L10	HT-E6L20	HT-E6L40	HT-E6L60
Operational Capacity (t/h)	0.5~ 1.0	1.5~ 2.0	3.0~ 4.0	5.0~ 6.0
Sterilizing Temperature(C)	115 ~ 135	115 ~ 135	115 ~ 135	115 ~ 135
Steam Pressure Used(Mpa)	<0.78	<0.78	<0.78	<0.78
High Temperature Heated Time	4 ~ 6S	4 ~ 6S	4 ~ 6S	4 ~ 6S
Inlet Material Temperature (C)	<45	<45	<45	<45
(added cooling pipe)	<45	<45	<45	<45
Outlet Material Temperature (C)	<65	<65	<65	<65
Steam Consumption (Kg/L)	<0.12	<0.15	<0.15	<0.20
Motor Power (kW)	1.5	2.2	3	4
Outside Size (mm)	9209201400	110011001700	120012001800	140014002000
Floor Area (m 2)	0.8	1	1.5	2
Net Weight	280	380	550	700
