Certification: | TUV SGS; | Applicable Industries: | Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops; |
Processing: | Homogenizer; | Model Number: | HT-JR0.2/25; |
Port: | Qingdao, or as customers' request; | Packaging Detail: | Fumigation-free wooden case Milk Homogenizer Price; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Brand Name: | HONEST; |
After-sales Service Provided: | Free spare parts; | Processing Types: | Milk; |
Place of Origin: | Henan China; | Voltage: | 220V/380V/440V 50HZ/60HZ; |
Applied: | milk ect liquid; | Product material: | milk; |
Material: | Stainless Steel; | Warranty: | 2 Years; |
Power(W): | 2.2KW; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Milk Homogenizer Price; |
Supply Ability: | 300 Set/Sets per Month Milk Homogenizer Price; | Application: | High Pressure Homogenizer; |
Flow, ltr per hour: | 200L; | Usage: | High Pressure Homogenizer; |
Condition: | New; | Dimension(L*W*H): | 55*520*935mm; |
Name: | Milk Homogenizer Price; | Pressure: | 25 MPa; |
Weight: | 400KG; |

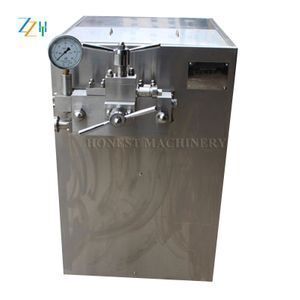

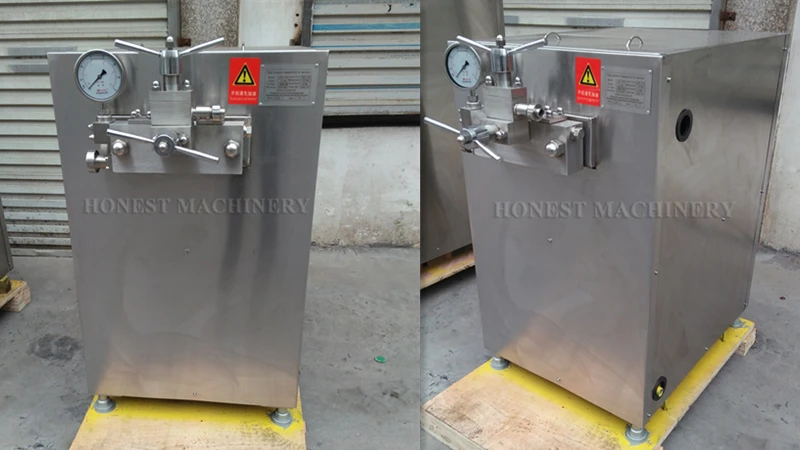

High Pressure Homogenizer /Milk Homogenizer Price
Machine introduction of High Pressure Homogenizer
Automatic Homogenizer For Milk Industry is a special equipment of the liquid material thinning and high pressure transportation.It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.
The milk homogenizing Machine is widely used in the production, scientific research and technical development
of a lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and
so on.
1. Be used as high pressure homogenizer .It can cause the material thinning and mixture under the three action
of extruding, strong impacting and decompression inflating. It is an important equipment
of food, dairy food, drink processing and so on. It can cause the fat globule thinning while
homogenization under high pressure to the milk, soy milk this kind of dairy food.
2. Be used as high pressure delivery pump
It is an important equipment during the production of powdered medicine, as the fluid material
produce high pressure when through the equipment, and be made to powder after through
the spray drying device.
This equipment also can be used in the homogenizer, high-pressure transportation and the high-pressure spray situation of other fluid materials.
2.Technical parameters of High Pressure Homogenizer
Model | Capacity | Max pressure | Motor power | Dimension |
HT-JR0.2/25 | 200L/h | 25 | 2.2kw | 755*520*935mm |
HT-JR0.5/25 | 500L/h | 25 | 5.5kw | 1030*450*990mm |
HT-JR2/25 | 2000L/h | 25 | 18.5kw | 1315*1100*1290mm |
HT-JR2.5/25 | 2500L/h | 25 | 22kw | 3680*2010*1824mm |
HT-JR2/40 | 2000L/h | 35 | 30kw | 1315*1480*1400mm |
HT-JR2/60 | 2000L/h | 50 | 37kw | 1315*1480*1400mm |
If you need further information, please contact us freely, we will do our best to cooperate with you.
